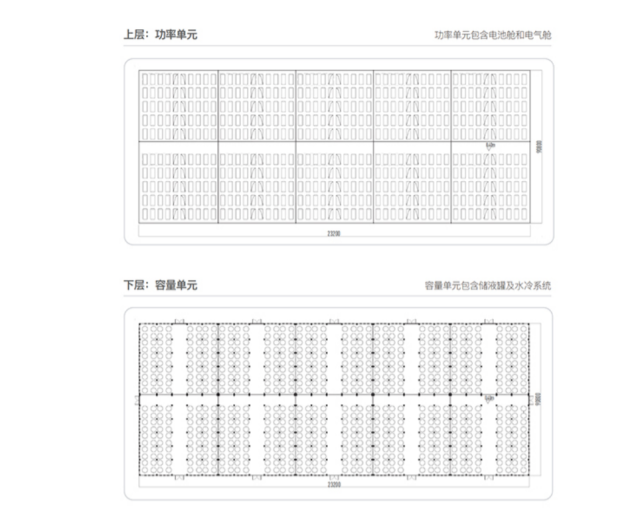

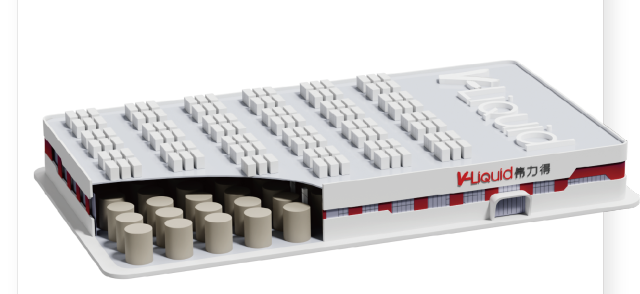

The vanadium redox flow battery energy storage system is divided into upper and lower layers. The lower layer is the capacity unit, which houses the electrolyte tanks and temperature control system; the upper layer is the power unit, which contains the battery modules, electrical, and control modules. The energy storage unit consists of the power unit (battery modules), capacity unit (electrolyte), and electrical control part (electrical cabin).More
