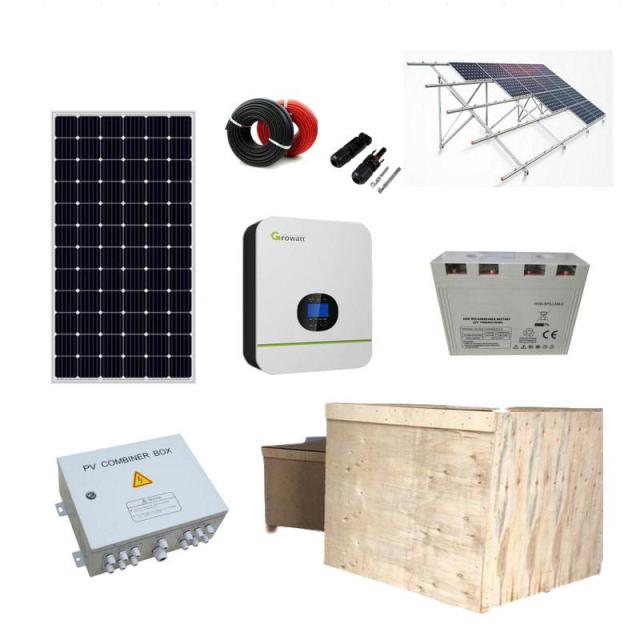

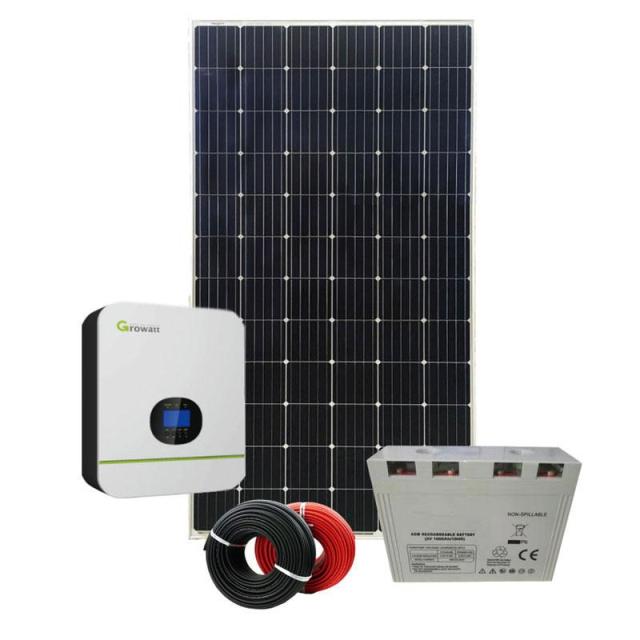

10KW Off Grid Solar Power System
Off Grid 10kw 40kw 60kw 100kw Energy Power System Battery
Commercial Chargeable Solar System Mounting
Production Detail :
Place of Origin : Fujian, China
Model Number : Off-grid Solar System
Battery Type : Lead-Acid, Lithium Ion
Certificate : CE
Controller Type : 60A 48V
Mounting Type : Ground Mounting, Roof Mounting, Carport Mounting
Output Voltage (V) : 230V/400V, 230V/ 400V
Output Frequency : 50/ 60Hz
Type : Single/ Three Phase
Out-put Voltage : 3-10kw
Solar panel : MONO/ POLY
Inverter : Pure Sine Wave Inverter
Solar Panel
?PID Free PV Module
?0-5W Positive Power Output Guarantee
?25 Years Power Output Guarantee
?100% Double Full EL Inspection
Off Grid Solar Inverter
?Brand:Growatt
?5 years standard warranty

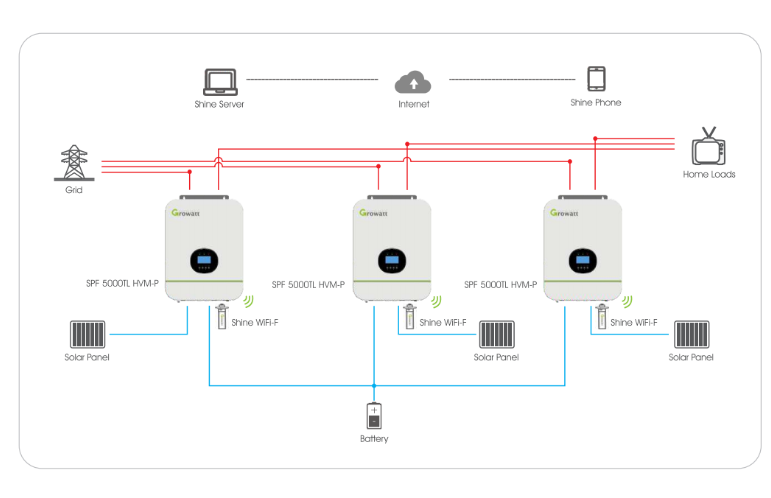

?Support Working in Parallel
?Max.Efficiency 99.7%
?Integrated DC switch for added
?safety protection
?With WIFI Monitoring Device

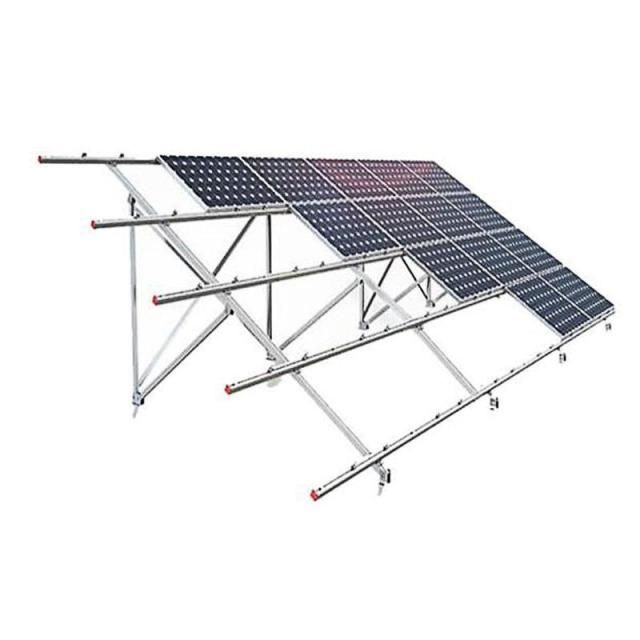

Solar Mounting System
?Customized for :Rooftop(Flat/Pitched), Ground , Carport etc
?Adjustable tile angle from 0 to 65 degree
?Tile roof: Aluminium type
?Compatible with all solar modules.
AC Combiner box
? Include FUSE,SPD, Leakage Breaker etc.
? Protect Solar System
DC Cable & MC4 Connector
?PV Cable 4mm2 6mm2
?MC 4 compatible Connector
GEL Battery
?Capacity(kWh): 2.6
?Nominal Voltage(Vdc): 2
?Nominal Capacity(AH): 1300
?Depth of Discharge: 70%
Product packaging :
Packing Details:Carton Packing
Delivery Details:12-30 days after place the order
