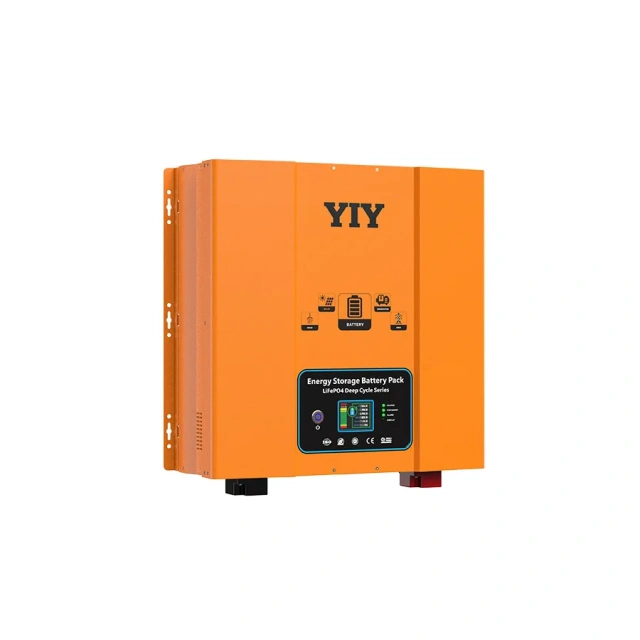

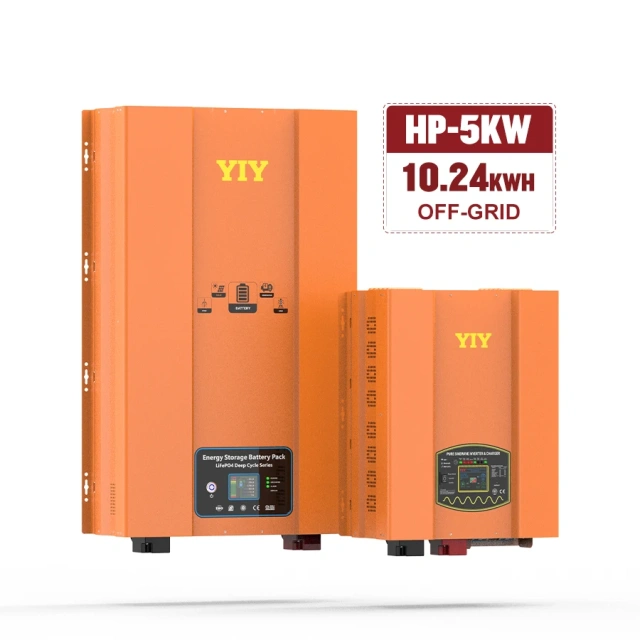

LFP 5.12/10.24kWh LiFePO4 Battery Pack
|
||||||||||
|
Specification
|
||||||||||
|
Model
|
LFP12400H
|
LFP24200H
|
LFP48100H
|
LFP24400H
|
LFP48200H
|
|||||
|
Rated Voltage
|
12.8V
|
25.6V
|
51.2V
|
25.6V
|
51.2V
|
|||||
|
Rated Capacity
|
400Ah
|
200Ah
|
100Ah
|
400Ah
|
200Ah
|
|||||
|
Rated Energy
|
5.12KWH
|
10.24KWH
|
||||||||
|
Cell Configuration
|
4S4P
|
8S2P
|
16S1P
|
8S4P
|
16S2P
|
|||||
|
Battery Cell
|
3.2V100AH 16PCS
|
3.2V100AH 32PCS
|
||||||||
|
Life cycles
|
6000 cycle @ 80%DOD,25°C
|
|||||||||
|
Standard Charge
|
||||||||||
|
Operation temperature range ©charging
|
0~60°C
|
|||||||||
|
Rated charge voltage
|
13.8±0.1V
|
27.6±0.2V
|
55.2±0.4V
|
27.6±0.2V
|
55.2±0.4V
|
|||||
|
Max charge voltage
|
14.2±0.1V
|
28.4±0.2V
|
56.8±0.4V
|
28.4±0.2V
|
56.8±0.4V
|
|||||
|
Overcharge protection
|
14.6±0.1V
|
29.2±0.2V
|
58.4±0.4V
|
29.2±0.2V
|
58.4±0.4V
|
|||||
|
Allowed MAX charge current
|
440A 30s
|
220A 30s
|
110A 30s
|
440A 30s
|
220A 30s
|
|||||
|
Peak charge current
|
480A 5s
|
240A 5s
|
120A 5s
|
480A 5s
|
240A 5s
|
|||||
|
Rated charge current
|
400A
|
200A
|
100A
|
400A
|
200A
|
|||||
|
Recommend charge current
|
<400A
|
<200A
|
<100A
|
<400A
|
<200A
|
|||||
|
Standard Discharge
|
||||||||||
|
Operation temperature range ©discharging
|
-35~60°C
|
|||||||||
|
Output Voltage Range
|
10-14Vdc
|
20~28Vdc
|
40~56Vdc
|
20~28Vdc
|
40~56Vdc
|
|||||
|
Recommend Working Range
|
11.5~13.5Vdc
|
23~27Vdc
|
46~54Vdc
|
23~27Vdc
|
46~54Vdc
|
|||||
|
Discharge Cut-off voltage
|
10V
|
20V
|
40V
|
20V
|
40V
|
|||||
|
Allowed MAX discharge current
|
440A 30s
|
220A 30s
|
110A 30s
|
440A 30s
|
220A 30s
|
|||||
|
Peak discharge current
|
480A 5s
|
240A 5s
|
120A 5s
|
480A 5s
|
240A 5s
|
|||||
|
Rated discharge current
|
400A
|
200A
|
100A
|
400A
|
200A
|
|||||
|
Recommend discharge current
|
<400A
|
<200A
|
<100A
|
<400A
|
<200A
|
|||||
|
Mechanical Characteristics
|
||||||||||
|
Dimension H*W*D
|
516*550*187mm
|
850*550* 187mm
|
||||||||
|
Shipping H*W*D
|
616*614*290mm
|
1000*670*400mm
|
||||||||
|
Weight(N.W.)
|
48KG
|
100KG
|
||||||||
|
Weight(G.W.)
|
53KG
|
100KG
|
||||||||
|
Communication
|
||||||||||
|
RS485
|
For LCD remote
|
|||||||||
|
CAN
|
PC control and monitor
|
|||||||||
|
Less than 1 month
|
-20~35°C
|
|||||||||
|
Less than 6 month
|
-10-30°C
|
|||||||||
|
Storage Humidity
|
45~75%RH
|
|||||||||
|
