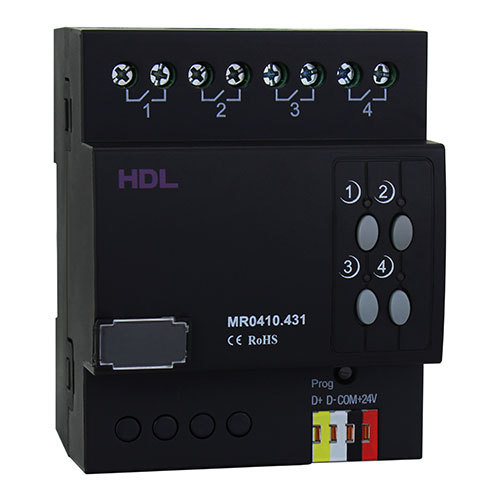

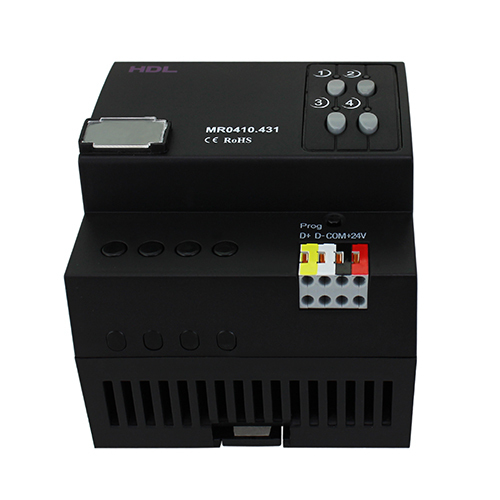

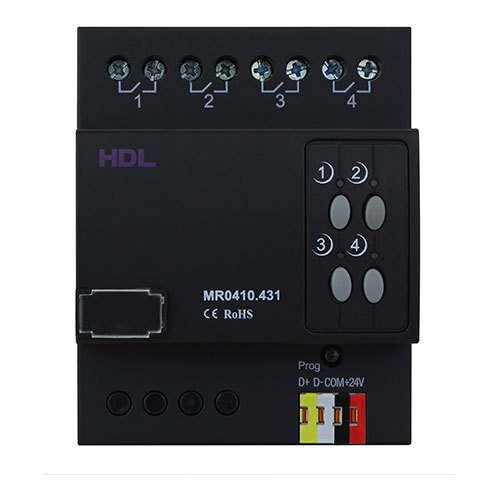

4CH 10A High Power Switch Actuator has 4 channels (10A for each channel) and 16A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.
■ 4-channel relay output unit
■ Scene control and sequence control
■ Up to 4 separate zones.
■ 8 scenes for each zone, scene running time up to 60 minutes
■ 2 sequences for each zone, up to 4 steps for each sequence
■ Light protection delay for each channel (0-60 minutes)
■ 0-25s of bulk power-on time for each channel.
■ Manual switch for each channel
■ Selected scene or scene before power off automatically activated when device restarts
■ LED indicator: indicates current channel status.
■ HDL Buspro communication
■ Supports online upgrade
Basic Parameters
Working voltage 15~30V DC Class 2
Working current 40mA/24V DC
Input voltage 120V/240V AC (50/60Hz)
Output channel 4CH/10A
Relay 16A Magnetic latching relay
Maximum current of each channel 10A
Electronic life time of relay >60000 (Resistance load)
Protection Connect a breaker in each channel
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 252g
Housing material Nylon, PC
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
