1. Products Presentation
Aipu has launched the High reliability 50-700W series of Brick-Size modular Converters to meet the higher requirement of the power supplies for the fields of Rail Transit and Communication. These products have been designed by the regular LLC technology with the typical features of wide input voltage range, high efficiency, high power density, low ripple & Noise, high reliability, ultra-thin thickness, wide operating temperature, low standby power consumption, etc. Meantime with the multi-protection functions and compliance with the standards for the Communication and Rail Transit. These series of converters can be widely used for the Base station, Network equipment, Servers, Communicating equipment, Rail Transit, Industry Control…

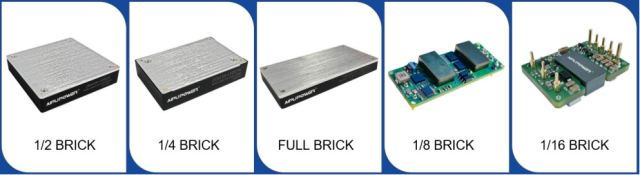

① Standard Packages：Full Brick Size, 1/2 Brick Size, 1/4 Brick Size,1/8 Brick Size, 1/16 Brick Size
② Wide Input Voltage Range：9-36VDC, 18-75VDC, 43-160VDC, 85-265VAC
③ Operating Temperature Range：-40℃~105℃ & -40℃~85℃
2. Advantages
High Power Density
①50-75W Series, Compliant with the industry Standard，1/16 Brick Size, Dimensions 34.3X24.1X9.0mm
②50-200WSeries, Compliant with the industry Standard，1/4 Brick Size, Dimensions 60.4X39.0X12.7mm
③100-200WSeries, Compliant with the industry Standard，1/8 Brick Size, Dimensions58.1X23.0X12.3mm
④600-700WSeries, Compliant with the industry Standard，Full Brick Size, Dimensions116.8X61.0X12.7mm
⑤150-400WSeries, Compliant with the industry Standard，1/2 Brick Size, Dimensions61.0X57.9X12.7mm
High Performance
①Wide Input Voltage Range：9-36VDC, 18-75VDC, 43-160VDC, 85-265VAC
②Operating Temperature：-40℃ to +105℃ &-40℃ to 85℃
③Efficiency Up to 91%（75-200W）
④No Load Current as Low as 10mA（50W-100W）
High Safety & Reliability
①High Isolation Voltage 3000VDC/3000VAC
②With the Input Under Voltage Protection, Output Short Circuit, Over Current, Over Voltage & Over Temperature Protections
③Compliant with IEC/EN62368, EN50155 Standards & DOSA

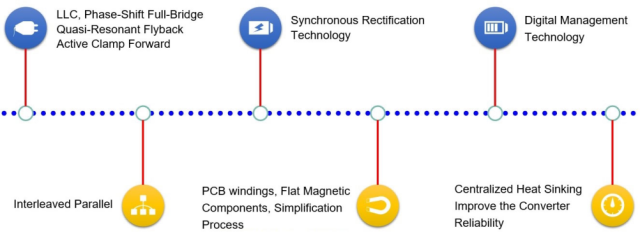

Key Technology
3. Application
These series of products can be widely used in the fields of Communication, Industry Control, Rail Transit, shipbuilding, etc.
