It is the latest product developed by our company and it's unique in the market.

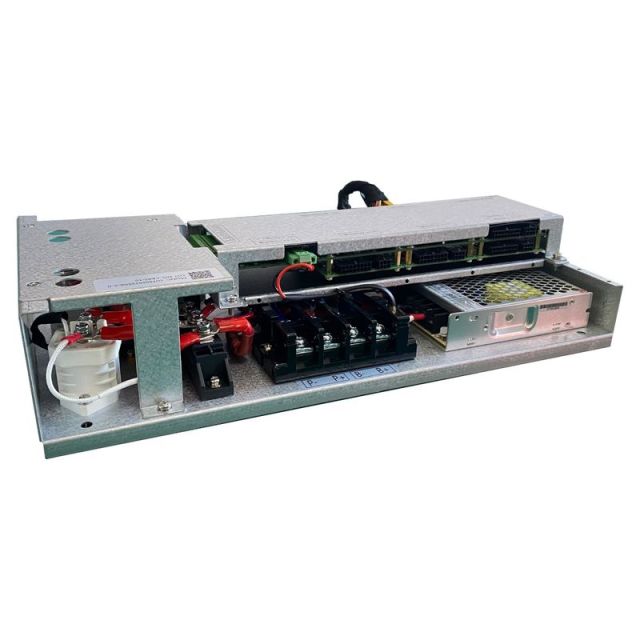

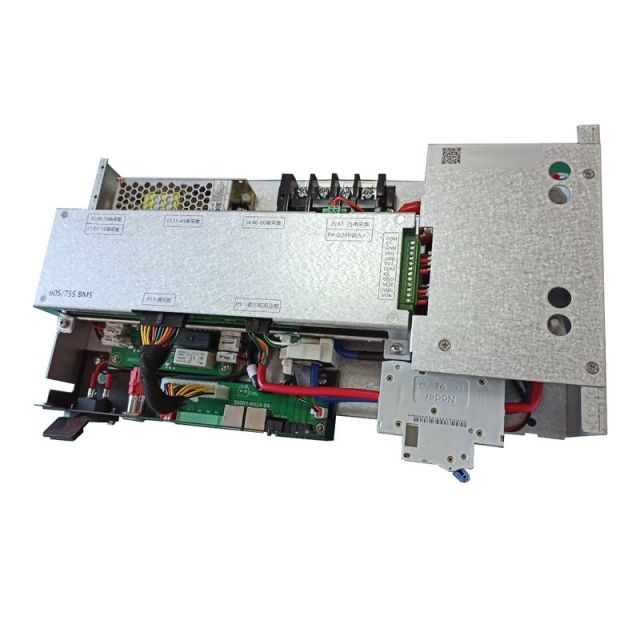

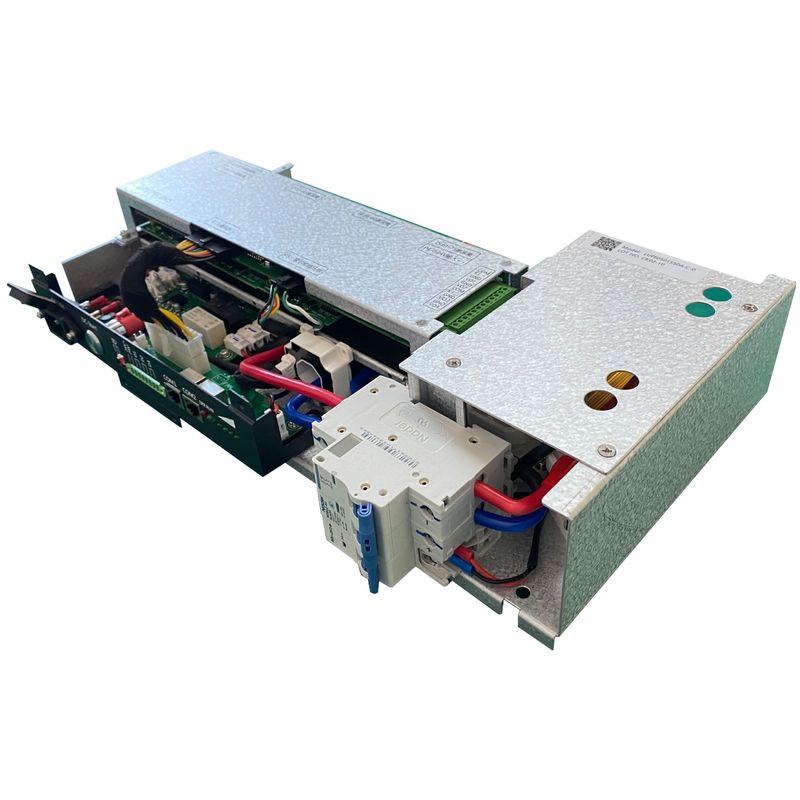

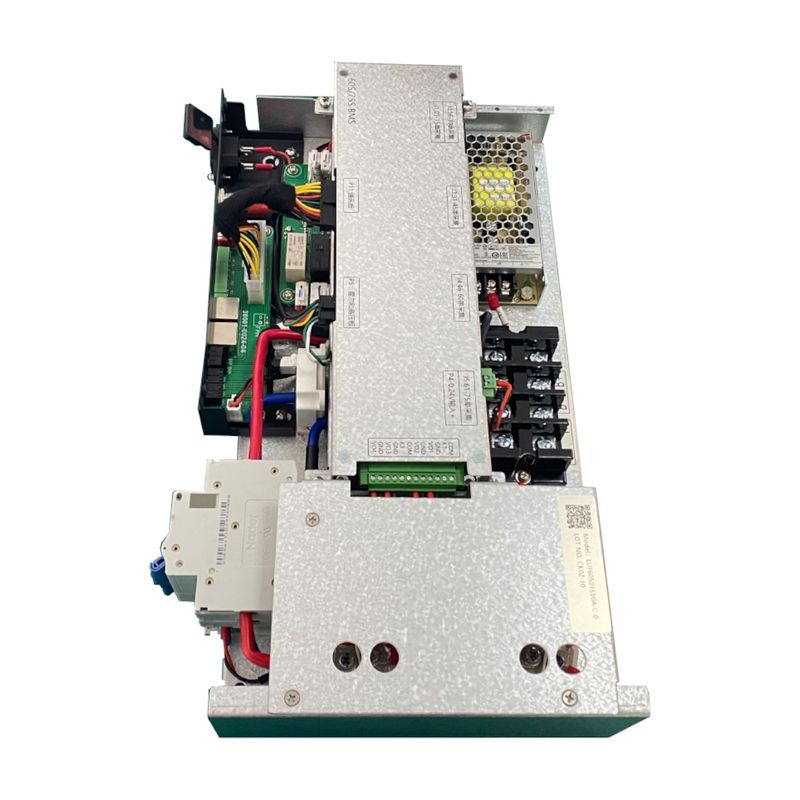

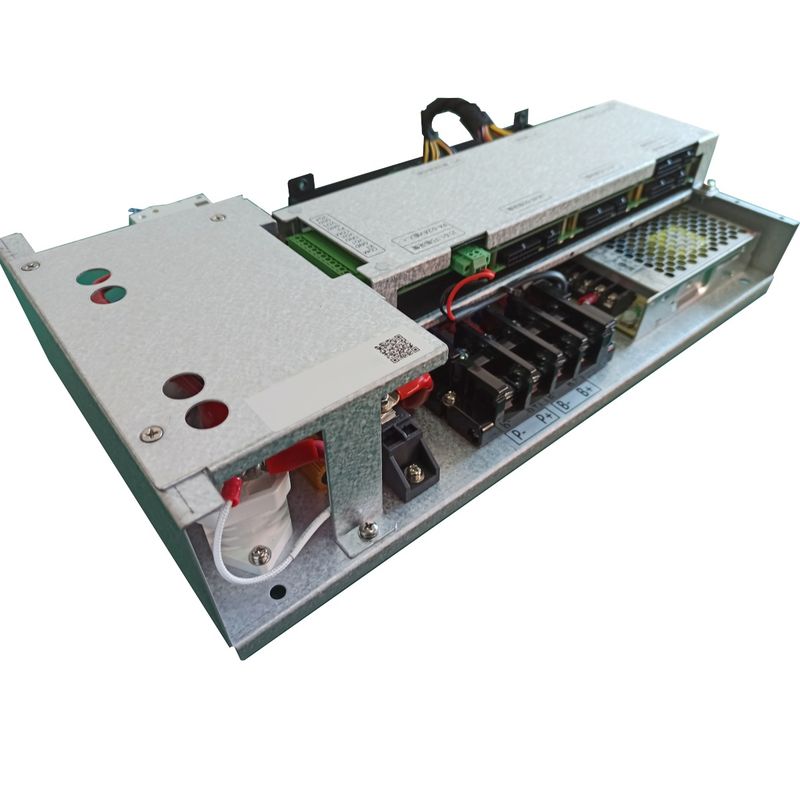

Integrated BMS supports 30S-75S lithium battery packs. 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the cost of users.
| Product Name | Integrated BMS |
|---|---|
| Model no. | RBMS07S60S50A |
| System voltage range | 120 - 228 V DC |
| Startup mode | DC start (optional AC and DC starter) |
| Number of battery strings | 60 S（4 x 15 S） |
| Balance | Equilibrium type: Passive resistance equalization Balanced current: 100mA ± 10mA(Single cell 3.4V) |
| Temperature Sampling | Numbers: 12 Battery temperature(4*3) Sampling accuracy: ± 2℃ |
| Voltage Sampling | Sampling accuracy: Single cell ±20mV |
| SOC | ≤5% |
| Communication mode | CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional |
| Display mode | 6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional |
| Hall sensor specifications | 50A/100A |
| Maximum load of power components | Steady-state：100A transient state：150A/10S（ Adjustable） |
| Alarm level | 1 Level |
| Protection level | 2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down |
| Operating Temperature | Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃ |
Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.
4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
