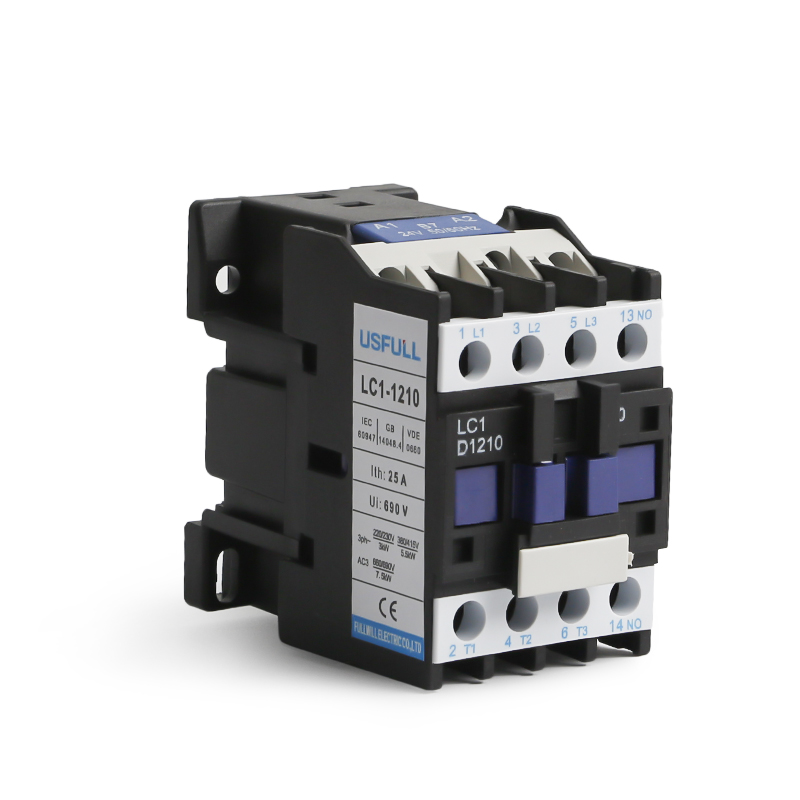

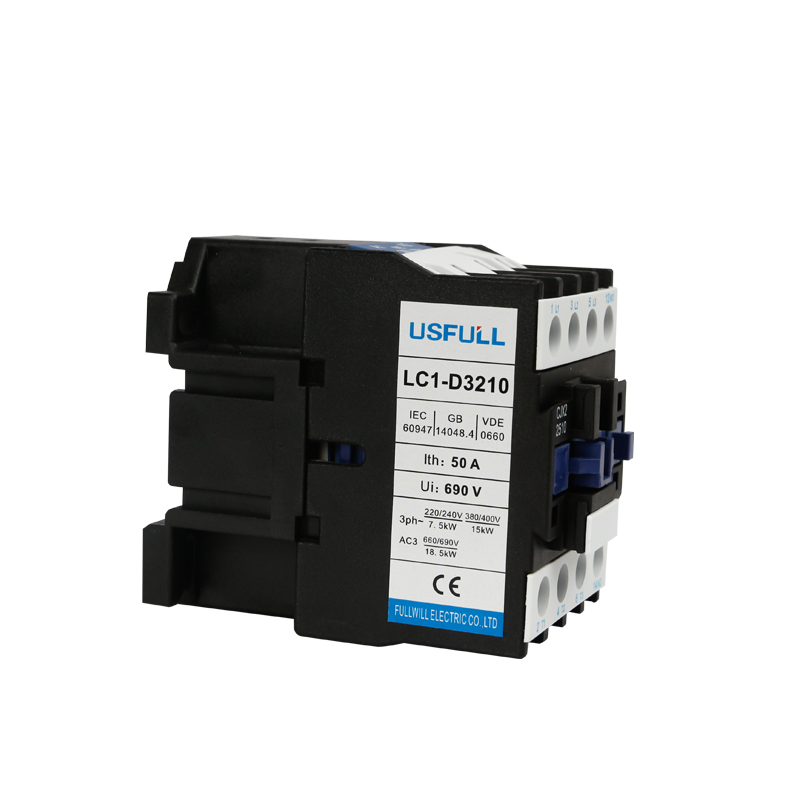

USFULL LC1D series AC contactor, popular in industrial control and protection.

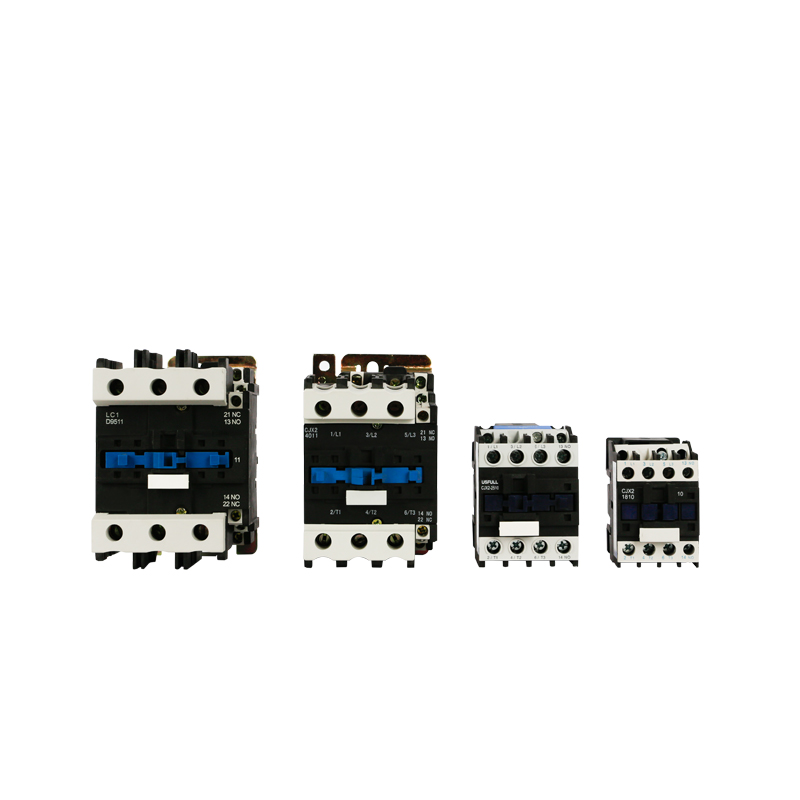

We offer LC1-D design 3 pole and 4 pole, AC coil and DC coil both available.
| SPECIFICATION | |||
| BRAND | USFULL | DESCRIPTION | AC CONTACTOR |
| MODEL | LC1-D | CERTIFICATE | ISO, CE |
| FREQUENCY | 1200 TIMES/H | CURRENT | 9A-95A |
| OPERATING FREQUENCY | 50/60HZ | COIL VOLTAGE | 24V/36V/48V/110V/220/380V/415V |
| OPERATING TEMPERATURE | -5℃ to +40℃ | INSULATION VOLTAGE | 690V |
| IP GRADE | IP 20 | ELEVATION | ≤2000M |
| MODEL SELECTION | |||
| Motor (KW) | Contactor Model | Thermal Relay Model | Circuit Breaker |
| 0.37 | LC1-D 0910 | LR2-D 1A | DZ47 3P/10A |
| 0.55 | LC1-D 0910 | LR2-D 1.6A | DZ47 3P/10A |
| 0.75 | LC1-D 0910 | LR2-D 2.5A | DZ47 3P/10A |
| 1.1 | LC1-D 0910 | LR2-D 4A | DZ47 3P/10A |
| 1.5 | LC1-D 0910 | LR2-D 4A | DZ47 3P/10A |
| 2.2 | LC1-D 0910 | LR2-D 6A | DZ47 3P/10A |
| 3 | LC1-D 0910 | LR2-D 10A | DZ47 3P/10A |
| 4 | LC1-D 1210 | LR2-D 13A | DZ47 3P/16A |
| 5.5 | LC1-D 1810 | LR2-D 18A | DZ47 3P/20A |
| 7.5 | LC1-D 2510 | LR2-D 25A | DZ47 3P/25A |
| 11 | LC1-D 3210 | LR2-D 32A | DZ47 3P/32A |
| 15 | LC1-D 4010 | LR2-D 40A | DZ47 3P/63A |
| 18.5 | LC1-D 5010 | LR2-D 50A | CM1 100A |
| 22 | LC1-D 6510 | LR2-D 65A | CM1 100A |
| 30 | LC1-D 8010 | LR2-D 80A | CM1 100A |
| 37 | LC1-D 9510 | LR2-D 93A | CM1 125A |
