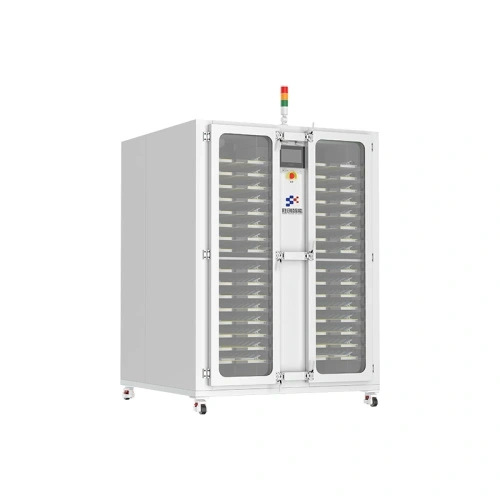

SHT32-512-3A(20-70℃) Polymer Pouch Battery Constant-Temperature Capacity Sorting Equipment
New Equipment Configuration
This intelligent formation and capacity sorting equipment designed for polymer batteries incorporates a 512-channel independent control system and dynamic constant-temperature technology. As
Battery Charge Discharge Test Equipment, the system supports a wide current range of 6mA-3A and precise temperature control of 20-70℃±3℃.
Breakthrough Core Technical Content
Constant-Temperature Energy Management System
Dynamic Temperature Control: Precise temperature control of 20-70℃±3℃ at rapid temperature rise rate (≤10℃/min) improves the uniformity of electrolyte impregnation.
Bidirectional Energy Recovery: Charging efficiency ≥80%, discharging efficiency ≥70%, saving over 30% on annual electricity bills and lowering production costs.
Four-Wire Precision Measurement: Contact resistance <1 milliohm with current and voltage precision ±(0.5‰ reading + 0.5‰ full scale).
Wide Range High Precision Testing
Current Support: 6mA-3A constant current charge and discharge capability, supporting the development needs of high-rate batteries. Multiple modes including constant current, constant voltage, constant power are supported by the
Lithium Ion Battery Tester.
Intelligent Sorting System: Grading of 12 parameters, including capacity, voltage, internal resistance, etc. A
Battery Charge Discharge Tester that achieves 99% pass rate.
13 Levels of Safety Protection: Active protection including reversed connection , short circuit, over-temperature, etc with response time ≤50ms.
Modular Production Adaptable
Quick Change Design: Fixtures and constant current boards support a fully independent ability for replacement which reduces model change time by 50%. Can work with batteries of various thicknesses from 1.5-20mm.
Full-Process Traceability: MES system integration and real-time recording of >20 parameters allow full-process traceability and process optimization. Low-Power Cooling: Natural air intake + upward exhaust designed with operational noise ≤75dB.
Different Parameter Comparison
Application Scenarios
Mass Production of Polymer Batteries: Fast charging performance prove with 3A current validates polymer batteries for mass production.
Energy Storage System Integration: Consistency testing of batteries with capacity >100Ah.
R&D Laboratory: High-precision data acquisition for material performance validation.
Special Process Development: Special irregular shaped batteries can be tested to meet process production needs.
This equipment is a high-precision Battery Charge Discharge Test Equipment alternative that features constant-temperature control, contact impedance compensation technology, and intelligent energy management capabilities. 72-hour rapid response service and lifetime upgrade for software supported, to maintain uninterrupted and stable production line operation.
