Application：

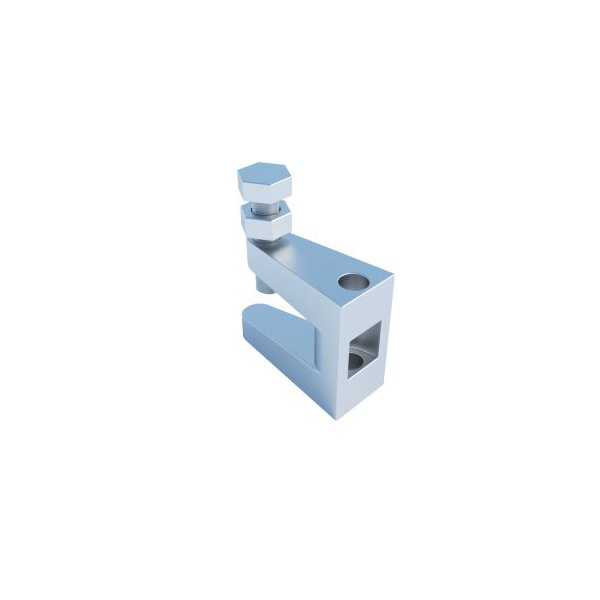

1. Steel structure connecting components are used for welding-free and drilling-free installation on steel structures.
2. Suitable for I-beam, T-shaped, U-shaped and diagonal steel beams.
Install pipes, air ducts, sprinkler systems, cables, bridge equipment, etc. on the steel structure.
It can be used alone as a component to install the cross brace, fixed cantilever structure and other process installation.
Structure：
1. A variety of specifications, select and use according to actual working conditions.
Installation：
1. Use high-strength bolts to fix, and the verticality can still be guaranteed on the inclined beam.
2. The pipe is fixed by the screw rod or the beam made of channel steel is suspended, and the installation height can be adjusted quickly.
If the load is too large, an anti-skid moving hook piece is added to the end of the channel steel.
P·Standard：
1. Material: Q235B, produced according to JIS G3131 standard.
2. Galvanized: Electro-galvanized, thickened 8um and then sealed, produced in accordance with GB T 9799 standard.
3. Other anti-corrosion treatment: hot-dip galvanizing, epoxy spraying.
