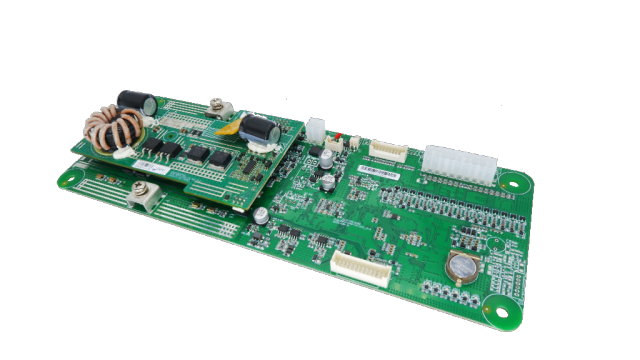

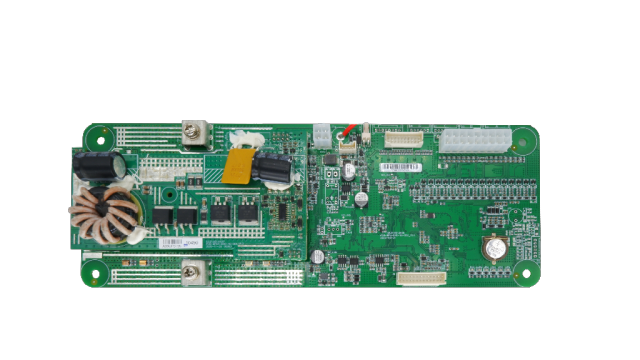

BPU-D40 Board 16-Str Voltage & Temp Sampling 1-Channel MOS 100A Discharging Protection for Energy Storage Systems

Hangzhou Xieneng Technology Co., Ltd. 2012 China
  • BPU-D40 Board 16-Str Voltage & Temp Sampling 1-Channel MOS 100A Discharging Protection for Energy Storage Systems
  • BPU-D40 Board 16-Str Voltage & Temp Sampling 1-Channel MOS 100A Discharging Protection for Energy Storage Systems
  • BPU-D40 Board 16-Str Voltage & Temp Sampling 1-Channel MOS 100A Discharging Protection for Energy Storage Systems
  • BPU-D40 Board 16-Str Voltage & Temp Sampling 1-Channel MOS 100A Discharging Protection for Energy Storage Systems
Summary
BPU-D40 Board supports 16-string voltage and temperature sampling with 1-channel MOS and ambient sampling. Designed for high-precision ±200A current monitoring and high-speed short circuit protection (120-300A), it ensures reliable performance in energy storage systems. Featuring ultra-low power consumption (≤200μA sleep mode), this board is ideal for battery management in demanding environments such as renewable energy storage and EV applications.More
Specifications
Working voltage:
0-60V
Continuous charging current:
50A
Working temperature:
-30~85℃
INQUIRY
  • BPU-D40 Board 16-Str Voltage & Temp Sampling 1-Channel MOS 100A Discharging Protection for Energy Storage Systems
  • BPU-D40 Board 16-Str Voltage & Temp Sampling 1-Channel MOS 100A Discharging Protection for Energy Storage Systems
Description Download
Features
Current sampling function
the sampling range supports ±200A , and the sampling accuracy is as high as 1% . Provide a maximum passive balancing current of 100mA.，The default number of parallel connection is less than 6
01
High speed short circuit protection
with 120~300A short circuit range and 100~400us protection delay
02
Ultra low power sleep and wake-up
≤200uA sleep mode and ≤50uA deep sleep mode
03
Current sampling function
the sampling range supports ±200A , and the sampling accuracy is as high as 1% . Provide a maximum passive balancing current of 100mA.，The default number of parallel connection is less than 6
01
High speed short circuit protection
with 120~300A short circuit range and 100~400us protection delay
02
Ultra low power sleep and wake-up
≤200uA sleep mode and ≤50uA deep sleep mode
03
Product Parameters

BPU-D40-16-003

BPU-D30-16-013

Working voltage

0-60V

36-60V

Charging voltage

54-60V

Continuous charging current

50A

50-55A

Continuous discharging current

100A

50-55A

Working temperature

-30~85℃

-20~70℃

Storage temperature

-40~125℃

-40~85℃

Humidity

95%

85%
