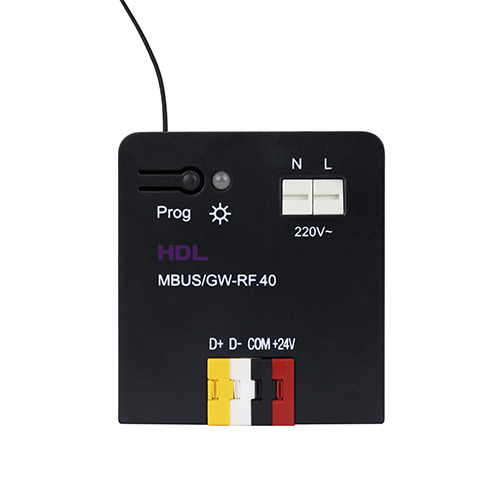

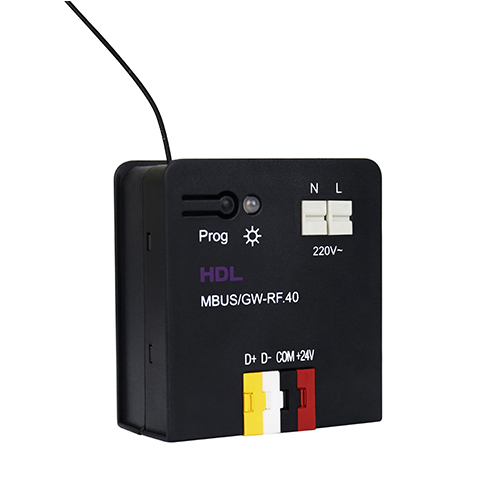

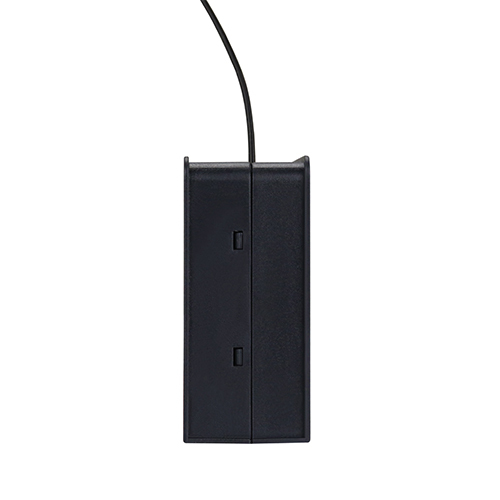

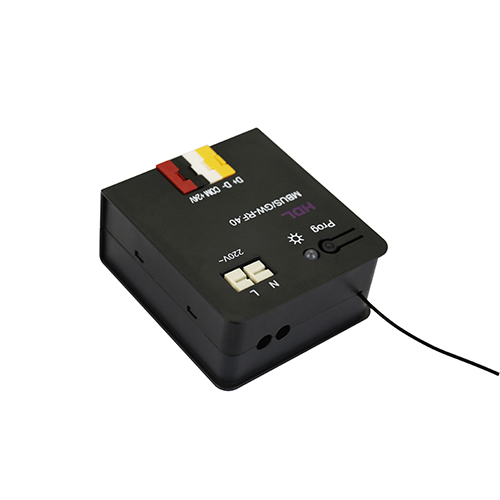

HDL-MBUS/GW-RF.40 is an easy-to-use Buspro/Wireles Gateway that enables communication between Buspro devices and Buspro Wireless devices by the means of connecting with Buspro devices and converting its signal into Buspro Wireless signal.
■ Supports IEEE.802.15.4
■ Provides power to HDL Buspro devices, while enabling them to be connected to a Buspro wireless network.
■ Online upgrades are supported for both the HDLMBUS/GW-RF.40, and the module it is connected to.
■ Supports easy programming
Electrical Parameters
Input voltage 85~260VAC, 50/60Hz
Power consumption 1.15W
Output 24VDC 100mA
Wireless transmission power +10dbm
Wireless sensitivity -90dbm
Indoor communication distance <=30m (barrier free)
RSSI received signal strength indication >-80dbm
Frequency allocation
(China) WPAN 780 to 786MHz
(Europe) SRD 864 to 870MHz
(North America) ISM 904 to 928MHz
Default band 780 MHz
Default PSK HDL-SecurityKey0
Environmental Conditions
Working temperature -10℃~45℃
Working relative humidity <90%<>
Storage temperature -20℃~+60℃
Storage relative humidity <93%<>
Approved
CE
RoHS
Product Information
Dimensions 48.2x43.6x21.3 (mm)
Weight 38g
Housing material ABS
Installation Stickup installation
Protection rating IP20
Fire and null 0.75~1mm2
Stripping length 5~6mm
