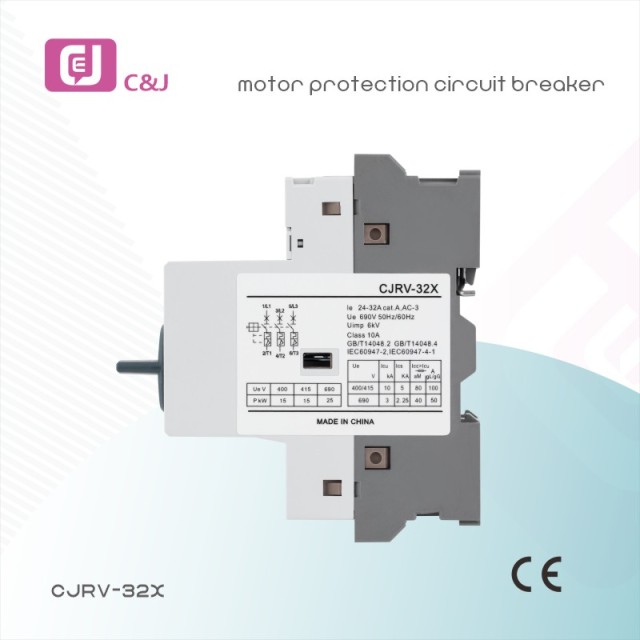

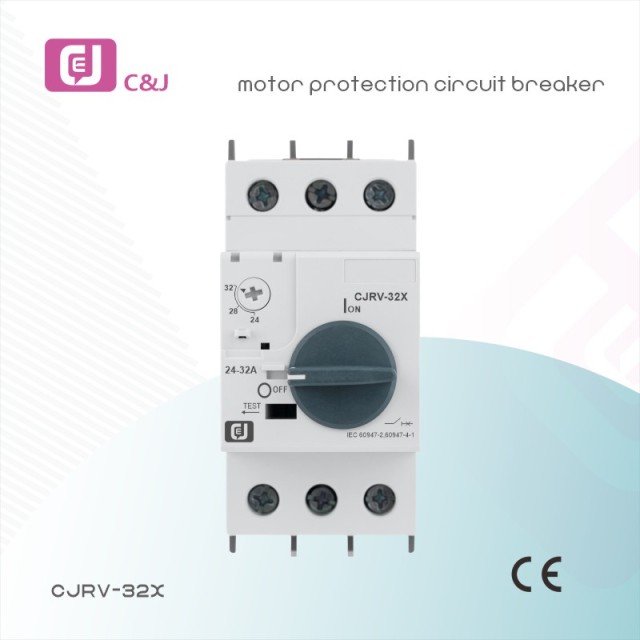

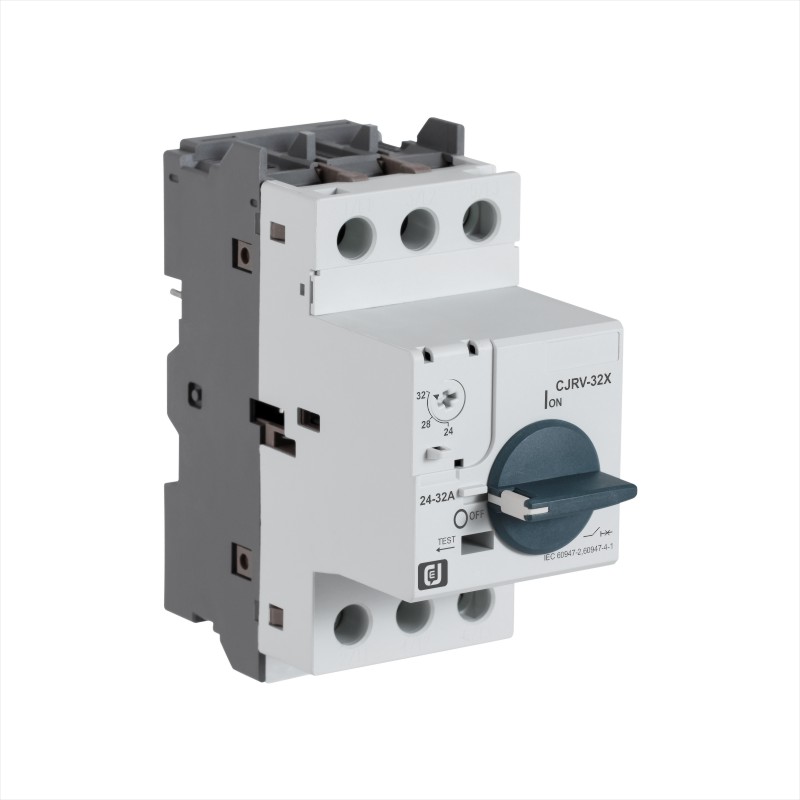

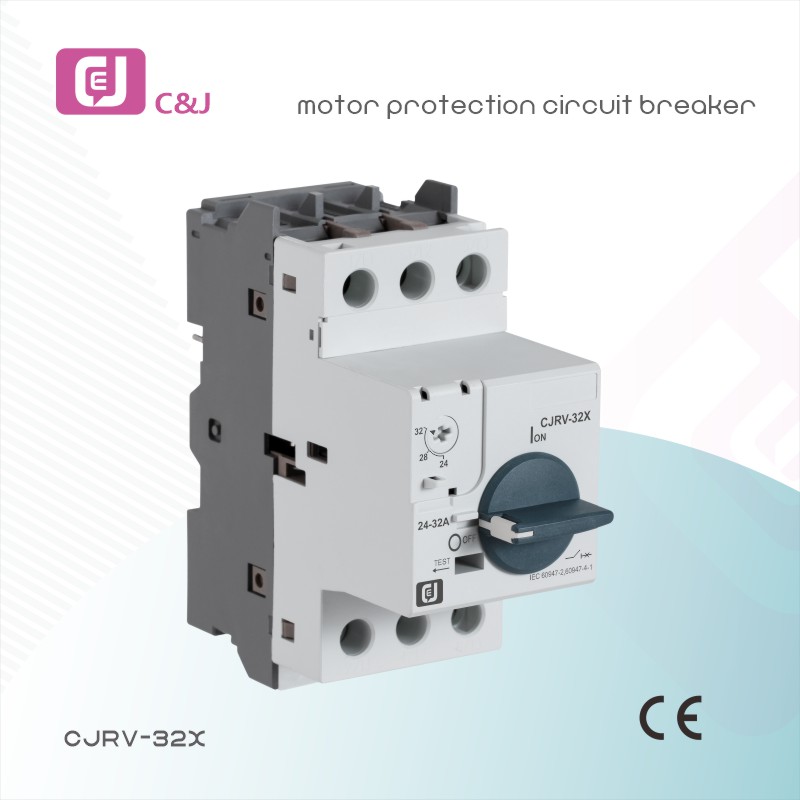

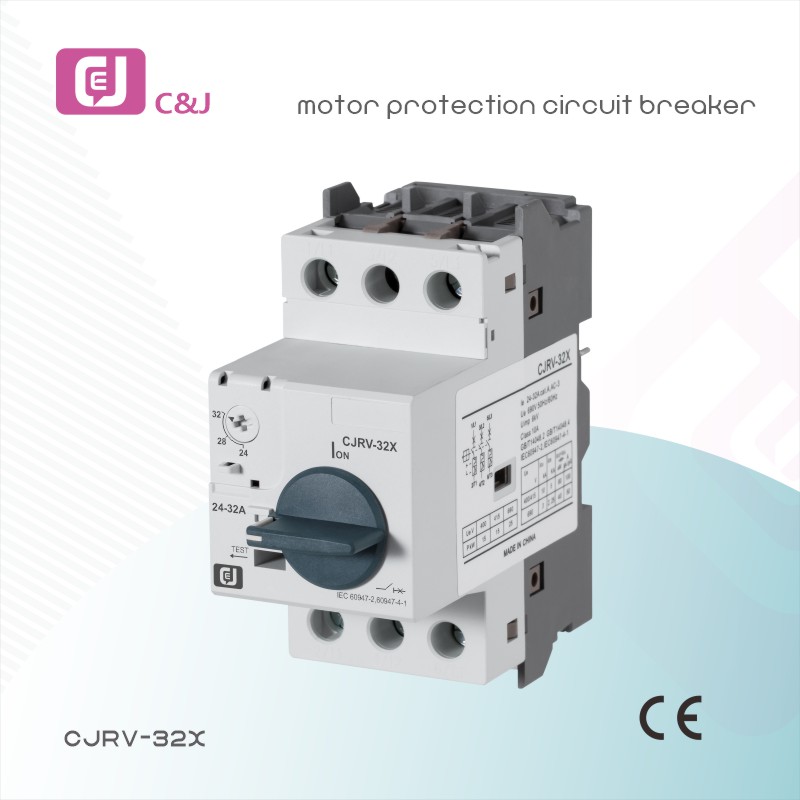

CJRV-32X MPCB 25-32A Motor Protection Circuit Breaker Overload Short Circuit Protection for Three-Phase Asynchronous Motors

Become a supplier Contact Us

Product Categories

All Batteries

Lithium Ion Batteries

Lithium-ion Cell

Lithium-ion Module

Lithium-ion Pack

lead-acid batteries

Sodium-ion Batteries

Flow Batteries

Uninterruptible Power Supplies (UPS)

Battery Accessories

Energy Storage Systems

Portable Power Stations

Home Storage Systems

C&I Storage Systems

Grid-Scale Storage Systems

Generation-Side Storage Systems

Mobile Energy Storage Systems

Mobile Energy Storage and Charging Systems

Institutional Energy Storage Systems

Telecom Base Station Energy Storage Systems

Distributed Power Systems

Microgrid Energy Storage Systems

Data Center Energy Storage Systems

Portable Power Station

Stoarge Technology

Lithium-ion Batteries

Lithium-ion Cell

Lithium-ion Module/ Pack

Lithium-ion Rack/Cluster

Flow Batteries

Flow Battery Stack

Electrolyte Storage and Circulation Unit

Flow Battery Electrolyte

Sodium-ion Batteries

Sodium-ion Cell

Sodium-ion Module/ Pack

Sodium-ion Pack

Lead-acid Batteries

Lead-acid Batteries

Lead-Carbon Batteries

Solid-state/Semi-solid-state Batteries

Other Energy Storage Batteries

Storage System Components

Power Conversion System (PCS)

Energy Storage Inverter/PCS

PV-Storage Hybrid Inverter

DC-DC Converter

PCS Controller

Control and Management Systems

Battery Management System (BMS)

Energy Management System (EMS)

Thermal Management System (TMS)

Liquid Cooling System

Air Cooling System

Immersion Cooling System

PCM-Based Cooling System

Thermal Management Control Unit

Safety & Protection Systems

Fire Suppression System

Pressure Relief Device (PRD)

Safety Interlock Controller

Insulation Monitoring Device(IMD)

Environmental Monitoring Sensor

Electrical Protection Devices

Electrical Connection and Distribution

HV/LV Connector

Electrical Busbars

Energy Storage Cable

AC/DC Power Distribution Equipment

Switching and Protection Devices

Grounding & Surge Protection System

Structural Support and Enclosure

Energy Storage Container

Equipment Cabinet and Enclosure

Battery Rack System

Mounting Brackets and Accessories

Enclosure Sealing

Grid Connection and Support System

Power Quality Management Equipment

Grid-connection Protection Device

Grid Interconnection Equipment

Generation Equipment

Solar Power Generation System

solar panels

Solar Inverters

Solar Charge Controller

Solar Cells

Tester, Sensors, Detectors

Solar Mounting System

BIPV

Solar Tracker

Panel Cleaning Machine

Solar Transformer

Solar Connector

Cable

Other Solar Components

Solar Generator

Solar Power System

PV Combiner Box

Solar Power Station

Solar Light

Wind Power Generation System

Wind Turbines

Wind Generators

Wind Turbine Controller

Wind Turbine Inverter

Critical Turbine Components

Other

Testor,Ditector

Hydrogen Power Generation System

Hydrogen Production Equipment

Hydrogen Storage Equipment

Hydrogen Transportation Equipment

Fuel Cell System

Hydro Turbine Controller

Energy Storage Materials

Manufacturing Equipment
Suppliers List
Storage Intelligence

Policy Updates

Projects

Companies

Electricity Markets

Economy & Trade

Market Analysis

Tech Trends

Applications & Use Cases

Supply Chain & Materials

Safety & Standards

Finance & Investment

Environment & Recycling

Exhibitions & Events

Normal working and installation conditions

The altitude of the installation site generally does not exceed 2000m;

The lower limit of the ambient air temperature is generaly not lower than -5 ℃,the upper limit is generaly not higher than+40℃, and its average value within 24 hours does not exceed+35 ℃;

The relative humidity of the air shall not exceed 90% (at+25 ℃ ± 5 ℃ )

The pollution level of the surrounding environment is pollution level 3;

The installation category of the starter is installation category lll;

The inclination between the starter and the vertical installation surface shall not exceed ± 5 °;

Tripping level: CJRV-25 (X),CJRV-32 (X),CJRV-32H,CJRV-80:10A;

Rated working hours: uninterrupted working hours, eight hour working hours.

Features

Rated insulation voltage Ui (V): 690.

Rated working voltage Ue (V): AC230/240,AC400/415,AC440,AC500, AC690.

Rated frequency(Hz): 50/60.

Rated current of shell frame level Inm (A): 25(CJRV-25,25X),32 (CJRV-32,32X CJRV-32H), 80 (CJRV-80).

Rated current of the release In (A): (see Table 1).

Setting current regulation range: (see Table 1).

Rated ultimate short-circuit breaking capacity lcu (kA): (see Table 1).

Rated operating short-circuit breaking capacity lcs (kA): (see Table 1).

Rated impulse withstand voltage Uimp (V): 8000.

Selective categories (A or B) and usage categories: A, AC-3.

Before inserting the conductor (wire/conductive strip) into the terminal, the insulation length should be peeled off (mm): 10, 15 (CJRV-80).

Cross section area of conductor (wire/conductive bar) mm2: 1~6, 2.5~25 (CJRV2-80).

Maximum number of conductors (wires/conductive bars) allowed to be clamped in: 2, 1 (CJRV-80).

Terminal fastening screw (or bolt)size: M4,M8(CJRV-80).

Tightening torque of terminal fastening screws (N·m): 1.7, 6 (CJRV-80).

Operation frequency (times/hour): ≤ 30,≤ 25 (CJRV-80).

Table 1

Product number	Rated current of release In (A)	Setting current Adjustment range(A)	Rated ultimate short-circuit breaking capacity lcu, rated operating short-circuit breaking capacity lcs kA				Flying arc distance (mm)
			AC 400/415V AC 690V		AC 690V
			Icu	Ics	Icu	Ics
CJRV-25(X)	0.16	0.1~0.16	100	100	100	100	40
	0.25	0.16~0.25	100	100	100	100	40
	0.4	0.25~0.4	100	100	100	100	40
	0.63	0.4~0.63	100	100	100	100	40
	1	0.63~1	100	100	100	100	40
	1.6	1~1.6	100	100	100	100	40
	2.5	1.6~2.5	100	100	3	2.25	40
	4	2.5~4	100	100	3	2.25	40
	6.3	4~6.3	100	100	3	2.25	40
	10	6~10	100	100	3	2.25	40
	14	9~14	15	7.5	3	2.25	40
	18	13~18	15	7.5	3	2.25	40
	23	17~23	15	6	3	2.25	40
	25	20~25	15	6	3	2.25	40
CJRV-32(X)	32	24~32	10	5	3	2.25	40
CJRV-32H	0.16	0.1~0.16	100	100	100	100	40
	0.25	0.16~0.25	100	100	100	100	40
	0.4	0.25~0.4	100	100	100	100	40
	0.63	0.4~0.63	100	100	100	100	40
	1	0.63~1	100	100	100	100	40
	1.6	1~1.6	100	100	100	100	40
	2.5	1.6~2.5	100	100	4	4	40
	4	2.5~4	100	100	4	4	40
	6.3	4~6.3	100	100	4	4	40
	10	6~10	100	100	4	4	40
	14	9~14	50	25	4	4	40
	18	13~18	50	25	4	4	40
	23	17~23	50	25	4	4	40
	25	20~25	50	25	4	4	40
	32	24~32	50	25	4	4	40
CJRV-80	25	20~25	50	17.5	4	2	50
	32	23~32	50	17.5	4	2	50
	40	30~40	50	17.5	4	2	50
	50	37~50	50	17.5	4	2	50
	65	48~65	50	17.5	4	2	50
	80	63~80	50	17.5	4	2	50
