1. View the inverter status.
2. Touch screen switch or remote switch (mobile phone control).
3. Touch screen switch load or remote switch load (mobile phone control).

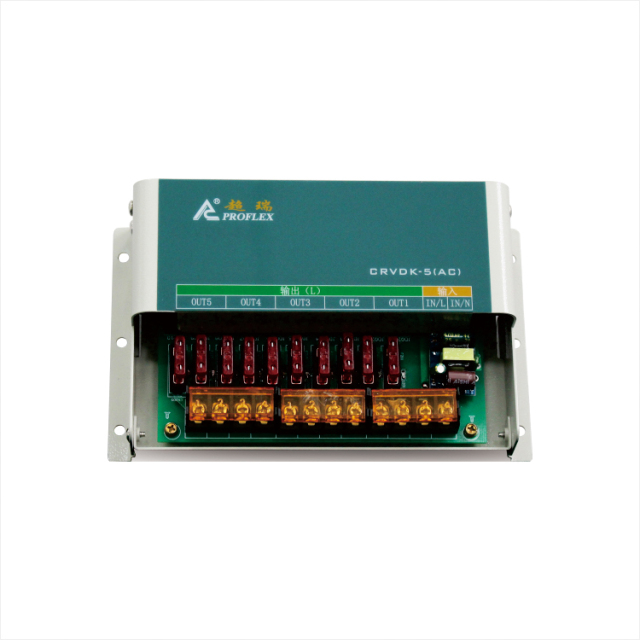

4. The load distribution boxes are independently powered.
5. 10 10A AC relay control.
6. 5 channels of 20A AC heavy load relay control.
7. Two 10A DC relay control.
8. Three 75A DC heavy load relay control.
9. 2 channels of analog water level probe detection.
10. 1 way switch quantity black water tank float detection.

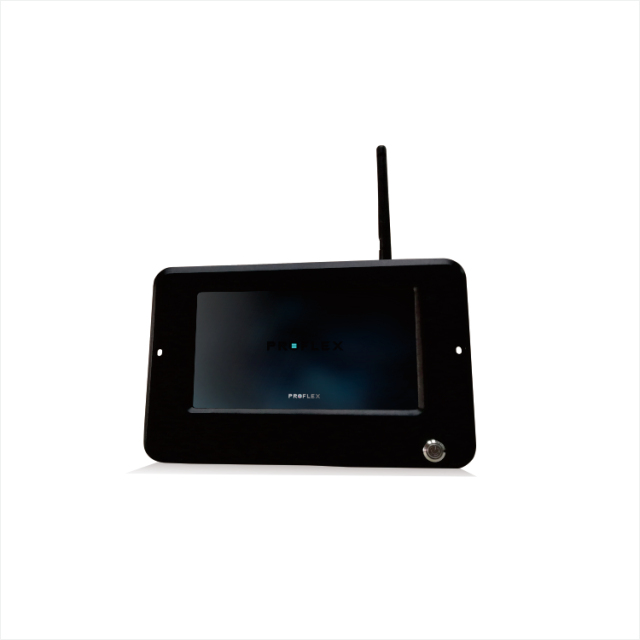

11. Display the touch screen temperature.
12. Low power consumption and automatic screen off design in 20 seconds.
Communication Interface:
Host 485 communication (RJ45 interface) customization
Touch screen 485 communication (DB9 pin) customization
Control box 485 communication (DB9 hole) custom
Custom communication protocol
Operating Voltage:
Touch screen DC10-16V
AC control box AC110-265V
DC control box DC10-40V
Touch screen working temperature: -20-70℃
Working temperature of load distribution box: -40-70℃
Protection level: IP20
