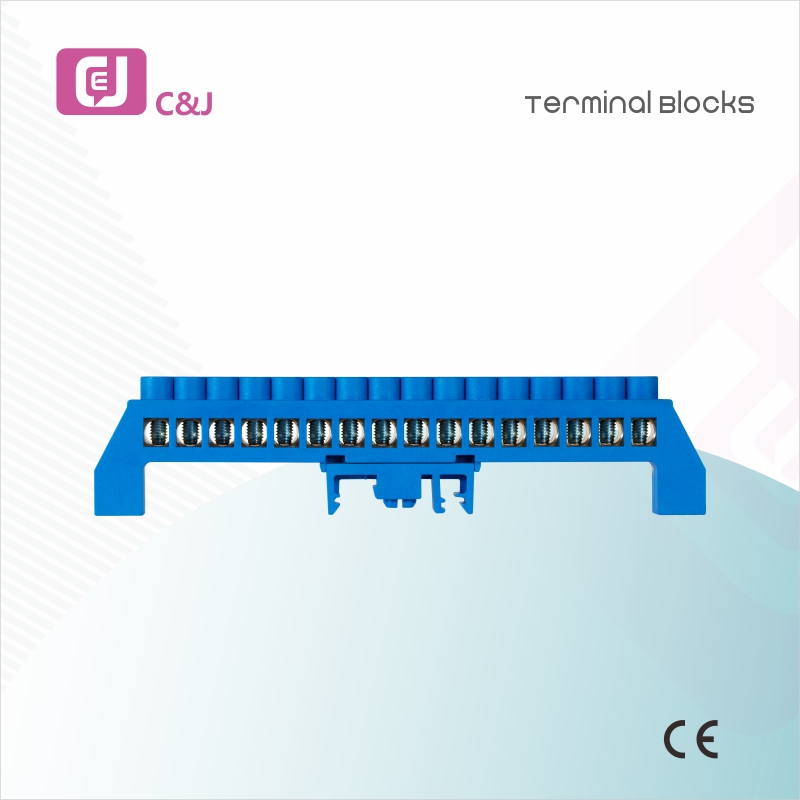

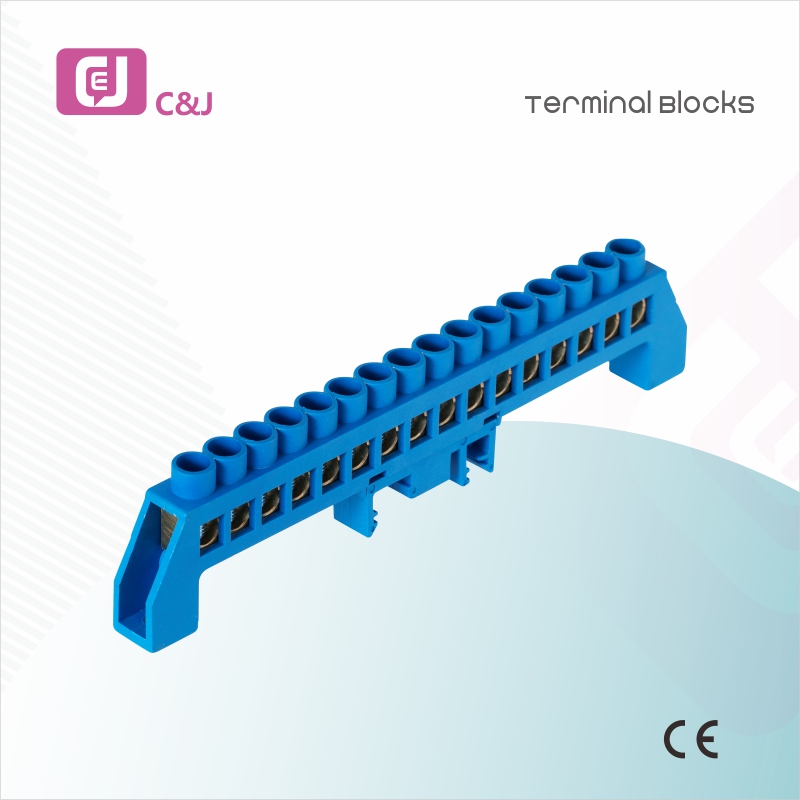

DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems

DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems

  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
Summary
DIN Rail Brass Earth Terminal Blocks offer high corrosion resistance, flame-retardant design, and excellent conductivity for energy storage and battery systems. Featuring PA66 and ABS materials, these screw terminal blocks operate reliably from -30°C to 110°C, ensuring long-term durability in demanding environments. Ideal for industrial energy storage, solar power systems, and battery energy storage solutions (BESS), these European-standard connectors provide secure, high-precision electrical connections. With brass terminals, zinc-plated screws, and a compact DIN rail mount design, they support voltages up to 450V, ensuring safe and efficient power transmission. Widely used in renewable energy and smart grid applications.More
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
  • DIN Rail Brass Earth Terminal Blocks Flame Retardant High Corrosion Resistance Screw Connectors for Energy Storage Battery Systems
Article No.WaysSpec.L1(mm)L2 (mm)M ScrewsΦ DiameterRemark
CJ0609/446×971.558.5M45.2Blue /Green
CJ0609/666×984.571.5M45.2Blue /Green
CJ0609/886×997.584.5M45.2Blue /Green
CJ0609/10106×9110.597.5M45.2Blue /Green
CJ0609/12126×9123.5110.5M45.2Blue/ Green
CJ0609/14146×9136.5123.5M45.2Blue /Green
CJ0609/16166×9149.5136.5M45.2Blue /Green
CJ0609/18186×9162.5149.5M45.2Blue /Green
CJ0812/448×1273.560.5M56Blue /Green
CJ0812/668×1288.575.5M56Blue /Green
CJ0812/888×12103.590.5M56Blue /Green
CJ0812/10108×12118.5105.5M56Blue /Green
CJ0812/12128×12133.5120.5M56Blue /Green
CJ0812/14148×12148.5135.5M56Blue /Green
CJ0812/16168×12163.5150.5M56Blue /Green
CJ0812/18188×12178.5165.5M56Blue/ Green
