Voltage covers 6V, 12V
Capacity: From 40Ah to 250Ah
Designed floating service life: 12 years @ 20 °C/68 °F.
Range summary

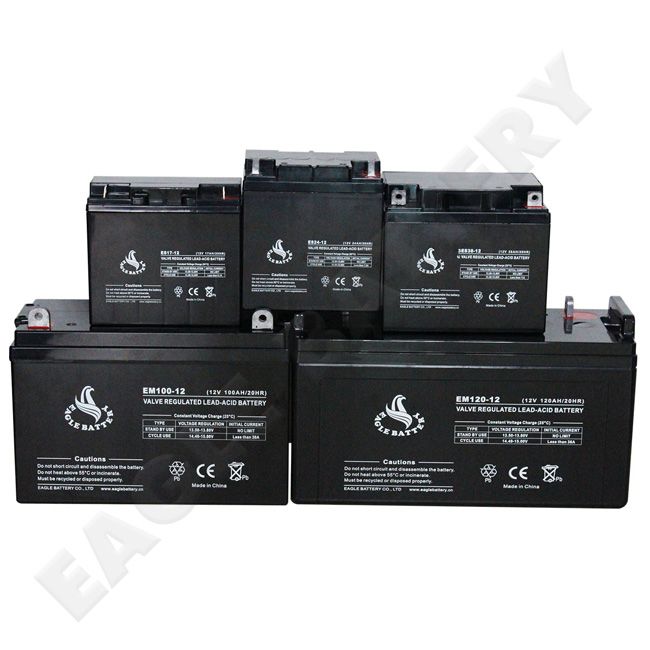

By combining a newly developed corrosion resistance alloy and an advanced curing process, the EM series can achieve better performance and reliable standby service life up to 12 years for float service. It is highly suited for UPS systems, switchgear devices, CATV and telecommunication applications.
FEATURES AND BENEFITS
12 years design life at floating condition @ 20°C
Wide operating temperature range from -15°C to 50°C
Thick flat plate featuring high Tin low Calcium alloy
Operation in any position without acid leakage
Low self-discharge rate and long shelf life
Excellent deep discharge recovery capability
CONSTRUCTION
Positive plate – High Sn low Ca grid to resist corrosion and prolong life
Negative plate – Balanced Pb-Ca grid for improved recombination efficiency
Separator – Advanced AGM separator for ultra low float current
Electrolyte – Dilute high purity sulphuric acid
Battery container and cover – ABS
Pillar seal – Double layers epoxy resin seal
Relief valve – Complete with integrated flame arrestor
Applications
Cable Television
Communication Equipments
Electric Power Systems
Security Systems
UPS systems
Control Equipments
Medical Equipments
Emergency Power Systems
Power Plant
