Design highlight:
High Efficiency – MPPT tracking efficiency of 99.9% and conversion efficiency of 99%, unaffected by shadows or obstructions.
High Quality – TI DSP + all-ceramic capacitors, full-load operation at up to 80°C.
High Stability – Reverse connection, overvoltage, overload, and base station power supply protection.
High Safety – Remote shutdown via backend + external emergency stop switch on combiner box.
High Intelligence – Bidirectional PLC communication for continuous monitoring of each module.

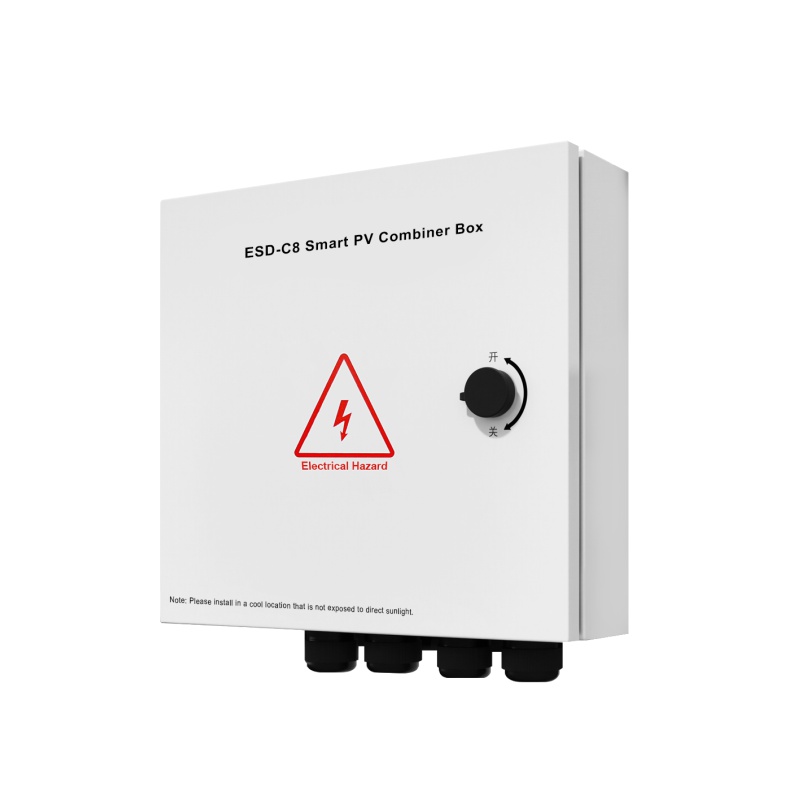

Easy Installation – Combiner box supports human-machine interaction and remote voltage sampling.
Easy Maintenance – Online replacement capability + cloud platform compatibility.

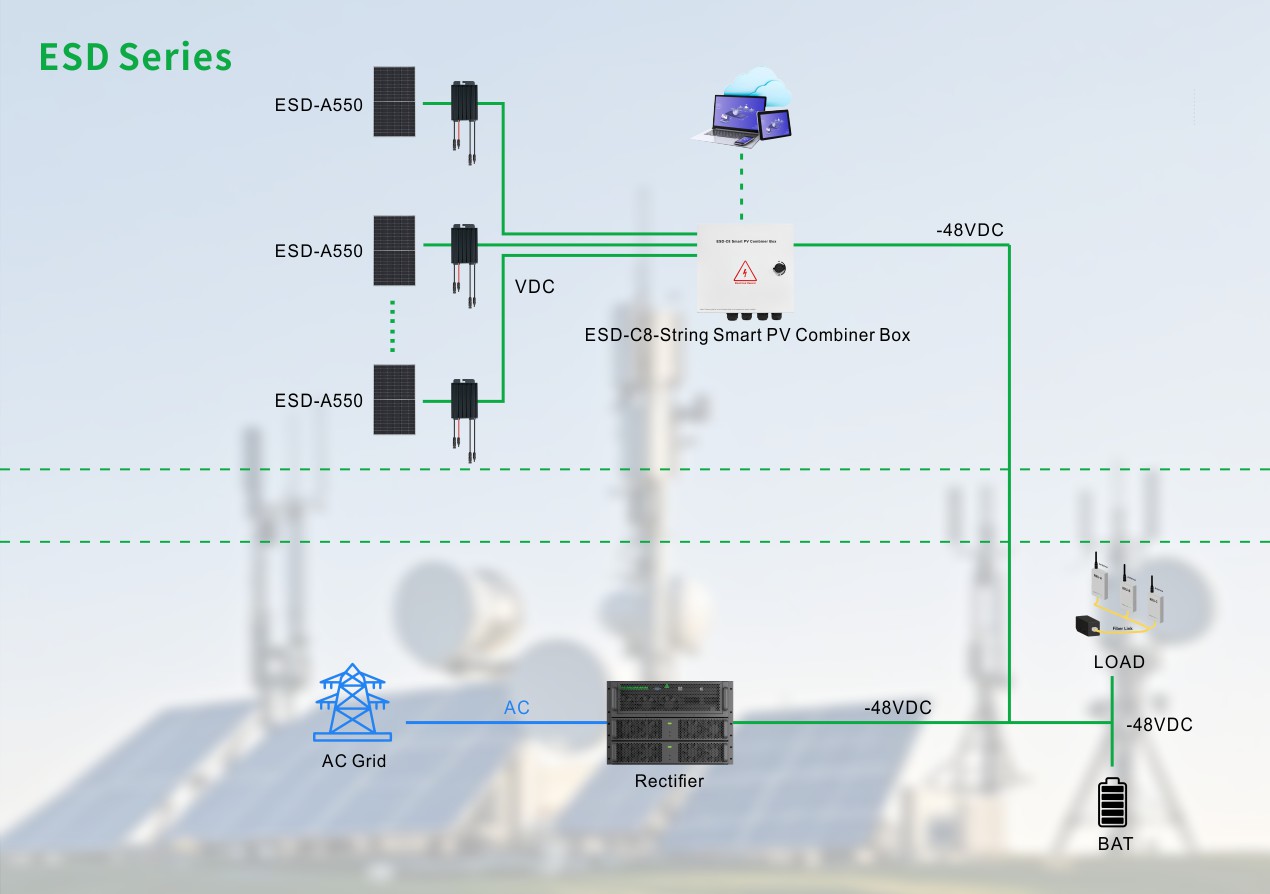

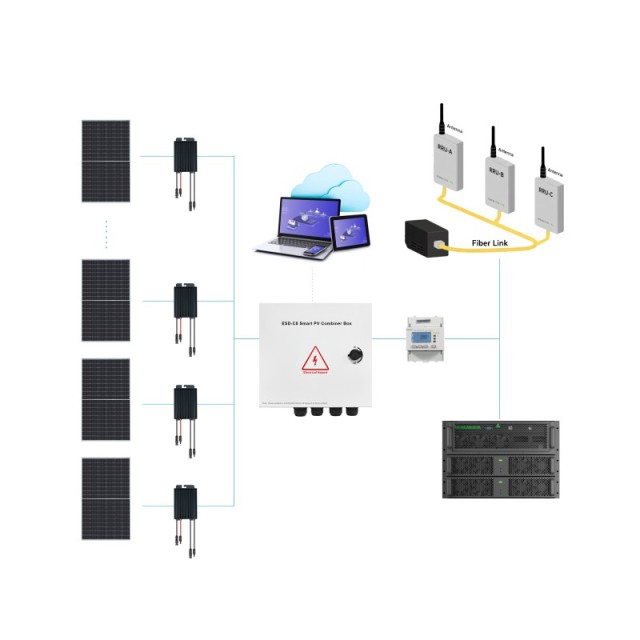

Work mode:
Adapters with MPPT tracking optimize the output of each photovoltaic panel, which are then connected in parallel to an intelligent combiner box linked to the DC bus of the existing power supply. The system dynamically monitors the DC bus voltage, prioritizing solar power and automatically supplementing any shortfall from the existing supply — ensuring seamless, non-intrusive operation.
