Conductor Type | Cu |
Rated Current | 630-4000A |
Frequency | 50Hz/60Hz |
Rated Voltage | 1000V |
IP | IP68 |
Product Series | GM |
Design standard | GA/T537；IEC61439-1；IEC61439-6；GB/T7251.1；GB/T7251.6；IEC 60529 |

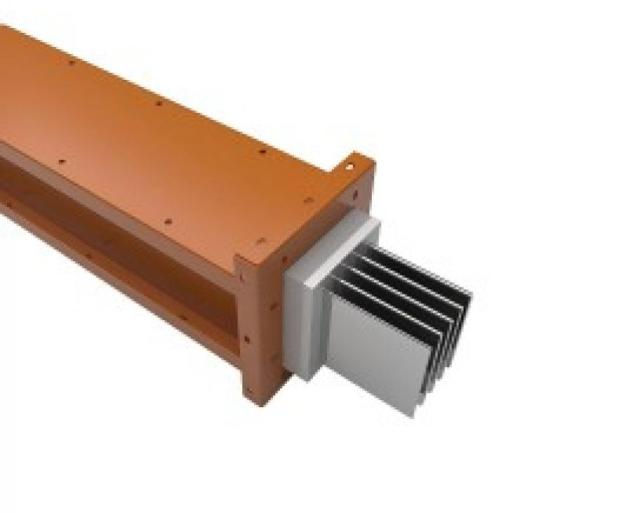

Product Type | Low Voltage Busway |
System | 3P3W/3P4W/3P5W |
Harbor and dock;Petrochemical industry;Date center;Rail transit
Place with waterproof, anticorrosive and explosion-proof requirements;Air-raid shelters;archives;high-rise buildings;Convention Center
Places with fire protection and emergency needs.
Compact design, easy installation, and no emission of toxicity (passed MSDS certificate), high qualities of raw materials, e.g. high purity of electrolytic copper, refining of mixed epoxy resin and halogen-free of raw materials.
High level of water protection up to IP68, the system can be applied safely and steadily even under water.
High performance of anti-corrosion, chemical resistance, anti
