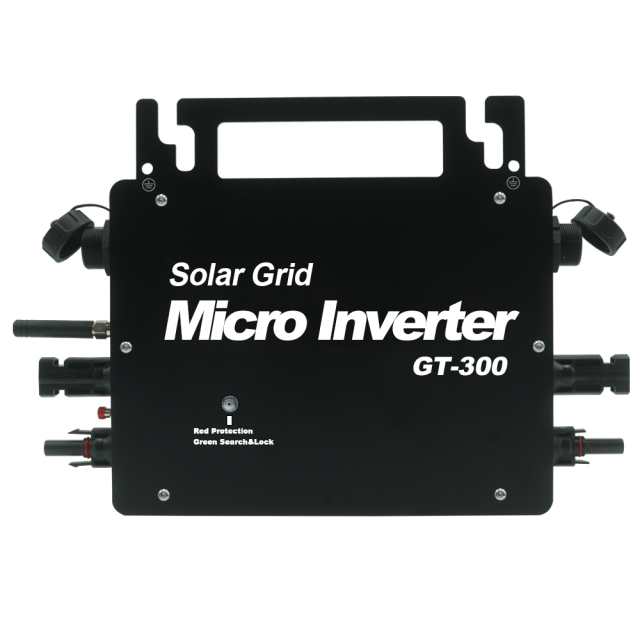

GT-300 Grid-Tied Solar Inverter 300W with 20V-50V DC input and 120V/230V AC output, delivers high efficiency and reliable power conversion for residential and commercial PV systems. Featuring MPPT voltage range of 22V-48V, IP66 waterproof rating, and smart grid-tied technology, this inverter ensures optimal solar energy utilization. Ideal for rooftop solar installations and small-scale renewable energy projects, GT-300 combines advanced performance with durable design for long-term energy solutions.More
Input Data (DC, PV) Number of Input MC4 Connector 2 sets MPPT Voltage Range 22V-48V Operation Voltage Range 20V-50V Maximum Input Voltage 50V Startup Voltage 22V Maximum Input Power 300W Maximum input Current 10.5A Output Data(AC) Single-Phase Grid Type 120V&230V Rated Output Power 300W Maximum Output Power 300W Nominal Output Current @120VAC:3A/@230VAC:1.5A Nominal Output Voltage 120VAC /230VAC Default Output Voltage Range @120VAC:80V-160V /@230VAC:180V-270V Nominal Output Frequency 50Hz / 60Hz Default Output Frequency Range @50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz Power Factor >0.99% Total Harmonic Distortion THD <5% Maximum Units per Branch @120VAC:5units /@230VAC: 10units Weight Max Current of AC Bus Cable 20A Waterproof Grade IP66
