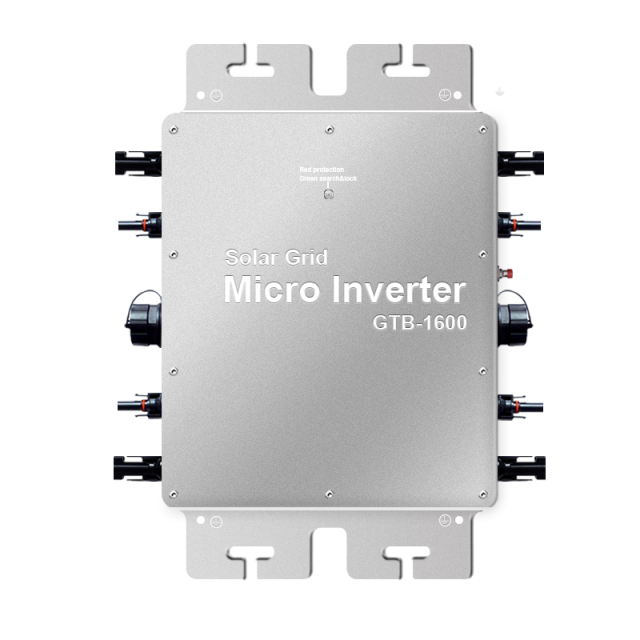

GTB-1600 Grid-Tied Solar Inverter delivers high-performance energy conversion with 1600W power output, wide MPPT voltage range (22V-48V), ensuring optimal efficiency for residential and commercial PV systems. Designed for reliable grid-tied operation, it supports 120VAC/230VAC output with high power factor (>0.99) and low THD (<5%), offering excellent compatibility and stable power supply. Built with IP65 protection, this inverter ensures durability and safety in diverse environmental conditions, making it ideal for modern solar energy installations.More
Input Data (DC, PV) Number of Input MC4 Connector 2sets MPPT Voltage Range 22V-48V Operation Voltage Range 20V-50V Maximum Input Voltage 50V Startup Voltage 22V Maximum Input Power 1600W Maximum input Current 10.5A? Output Data(AC) Single-Phase Grid Type 120V&230V Rated Output Power 1600W Maximum Output Power 1600W Nominal Output Current @120VAC:6A/@230VAC:5A Nominal Output Voltage 120VAC /230VAC Default Output Voltage Range @120VAC:80V-160V /@230VAC:180V-270V Nominal Output Frequency 50Hz / 60Hz Default Output Frequency Range @50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz Power Factor >0.99% Total Harmonic Distortion THD <5% Maximum Units per Branch @120VAC:3units /@230VAC: 6units Weight Max Current of AC Bus Cable 20A Waterproof Grade IP65
