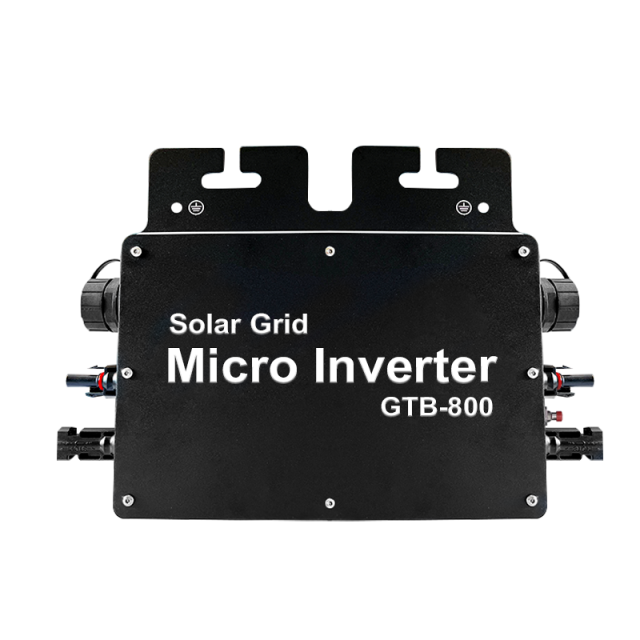

GTB-800 800W Grid-Tied Solar Inverter is designed for residential and commercial PV systems, featuring high efficiency, reliability, and smart grid integration. With a wide MPPT voltage range of 22V-48V and a maximum input power of 800W, it ensures optimal solar energy utilization. The inverter supports both 120VAC and 230VAC grid types, offering flexible installation options. Built with IP65 waterproof protection and advanced MPPT technology, GTB-800 guarantees stable performance in diverse environmental conditions. Ideal for rooftop solar systems and small-scale commercial applications, this inverter delivers clean, sustainable energy with low THD (<5%) and high power factor (>0.99).More
Input Data (DC, PV) Number of Input MC4 Connector 2sets MPPT Voltage Range 22V-48V Operation Voltage Range 20V-50V Maximum Input Voltage 50V Startup Voltage 22V Maximum Input Power 800W Maximum input Current 10.5A Output Data(AC) Single-Phase Grid Type 120V&230V Rated Output Power 800W Maximum Output Power 800W Nominal Output Current @120VAC:6A/@230VAC:5A Nominal Output Voltage 120VAC /230VAC Default Output Voltage Range @120VAC:80V-160V /@230VAC:180V-270V Nominal Output Frequency 50Hz / 60Hz Default Output Frequency Range @50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz Power Factor >0.99% Total Harmonic Distortion THD <5% Maximum Units per Branch @120VAC:3units /@230VAC: 6units Weight Max Current of AC Bus Cable 20A Waterproof Grade IP65
