Summary
The Heptafluoropropane Fire Suppression Device is an advanced internal pressure storage fire protection solution, ideal for high-risk environments in the energy storage and battery sectors. Featuring a prefabricated integrated design, this device ensures rapid and efficient fire suppression with real-time pressure display and leakage alarm functionality. Designed for seamless integration with pipe network systems, it offers reliable performance in critical scenarios. Available in multiple capacities (44kg, 66kg, 85kg, and 114kg), it provides total flooding protection for enclosed spaces ranging from 61m3 to 158m3, with a fast discharge time of ≤10 seconds. Built to operate within a temperature range of 0°C to 50°C, this fire suppression system combines durability, precision, and safety for industrial and commercial applications in the renewable energy sector.More
  • Heptafluoropropane Fire Suppression Device Internal Pressure Storage Real-Time Pressure Display for Pipe Network Systems

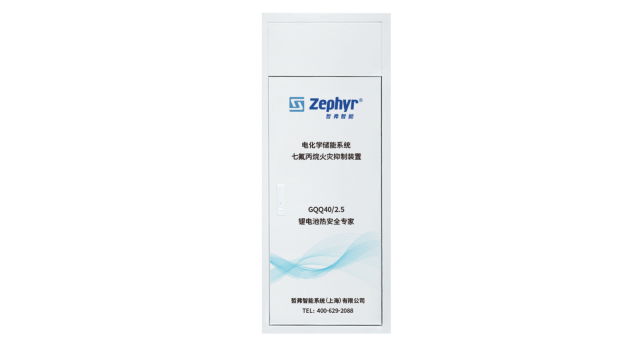

Internal pressure storage type heptafluoropropane fire suppression device

Product Features

  • Prefabricated integrated design
  • Simple installation
  • Real-time pressure display and leakage alarm
  • Can be matched with the pipe network for use.
44kg internal storage pressure heptafluoropropane suppression device
No.
Name
Technical parameters
1
Maximum filling capacity
44kg
2
Model
GQQ40/2.5
3
Storage pressure MPa (20 C)
2.16mpa.
4
Maximum working pressure MPa (50 C)
4.2 MPa
5
Working temperature
0 C ~ 50 C
6
Fully submerged protection space
61m3
7
Blowout time
≤10S
8
Overall dimension (L*W*H)
L600*W500*H1200mm
66kg internal storage pressure heptafluoropropane suppression device
No.
Name
Technical parameters
1
Maximum filling capacity
66 kg
2
Model
GQQ4.2/70N
3
Storage pressure MPa (20 C)
4.3 MPa
4
Maximum working pressure MPa (50 C)
6.7 MPa
5
Working temperature
0 C ~ 50 C
6
Fully submerged protection space
91m3
7
Blowout time
≤10S
8
Overall dimension (L*W*H)
L600*W500*H1450mm
85kg internal storage pressure heptafluoropropane suppression device
No.
Name
Technical parameters
1
Maximum filling capacity
85kg
2
Model
GQQ4.2/90N
3
Storage pressure MPa (20 C)
4.3 MPa
4
Maximum working pressure MPa (50 C)
6.7 MPa
5
Working temperature
0 C ~ 50 C
6
Total submerged protection space
117m3
7
Blowout time
≤10S
8
Overall dimension (L*W*H)
L600*W500*H1600mm
114kg internal storage pressure heptafluoropropane suppression device
No.
Name
Technical parameters
1
Maximum filling capacity
114kg
2
Model
GQQ4.2/120N
3
Storage pressure MPa (20 C)
4.3 MPa
4
Maximum working pressure MPa (50 C)
6.7 MPa
5
Working temperature
0 C ~ 50 C
6
Total submerged protection space
158m3
7
Blowout time
≤10S
8
Overall dimension (L*W*H)
L600*W500*H2000mm
