Product overview

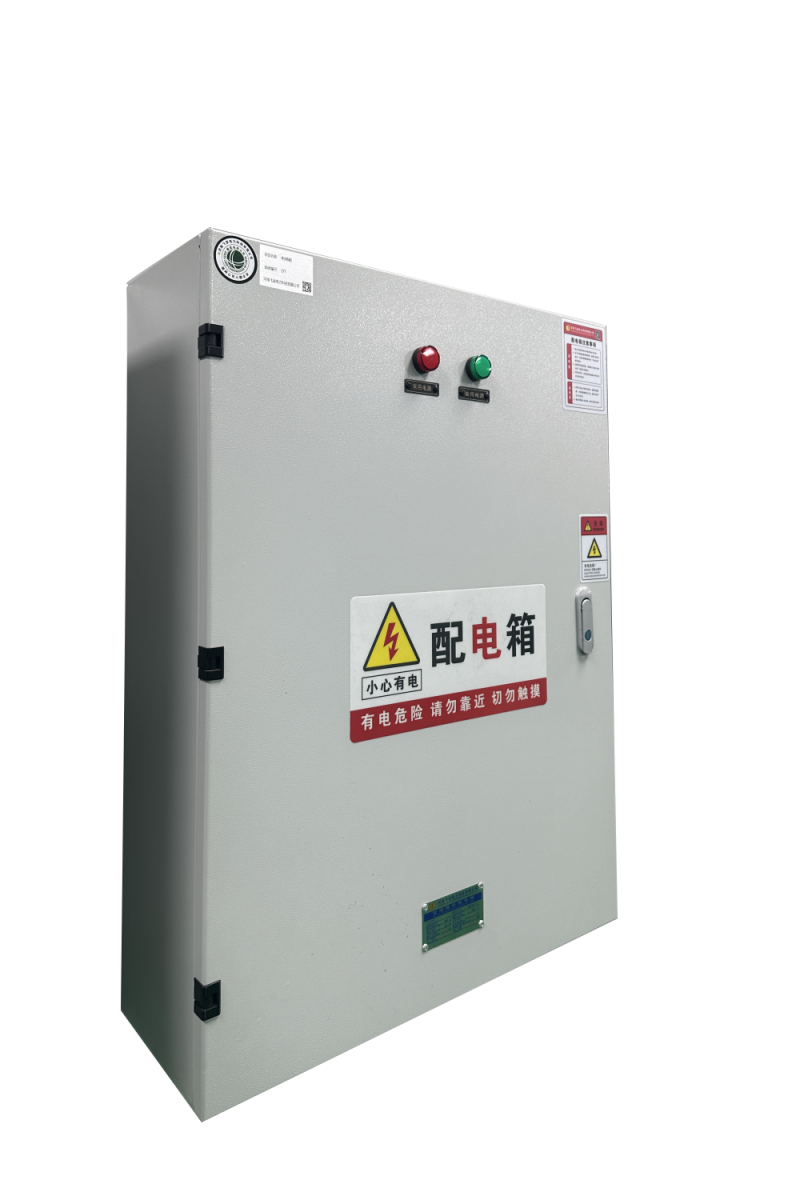

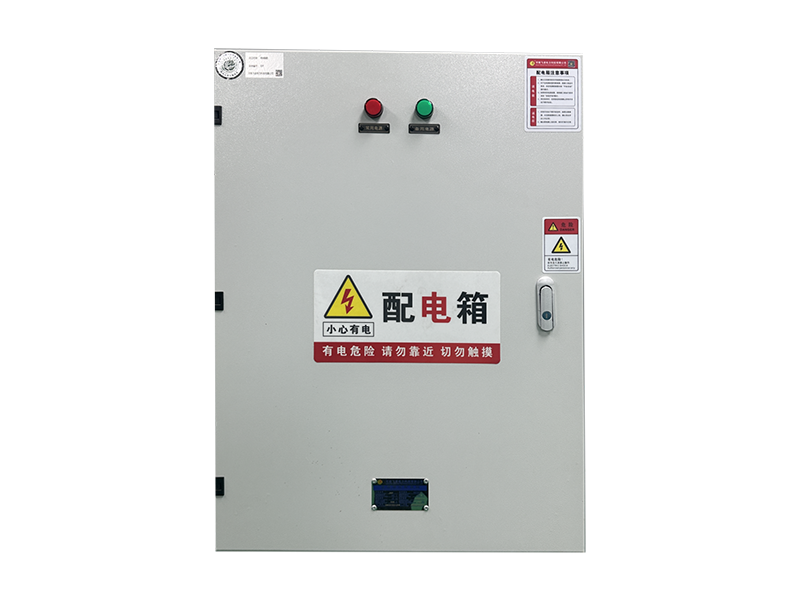

JXF series distribution box is a kind of component type, specification, quantity design and assembly into a variety of control functions of the power distribution device. It is widely used in power distribution, lighting distribution and automation control in power systems with rated voltage of 380V and below and frequency of 50Hz in industrial and civil buildings. JXF system products for the closed structure, hanging wall mounted or concealed in the wall. The box body is made of cold-rolled steel plate bending and welding, and the surface is treated by electrostatic spray, which is both beautiful and protective. Both the door and the box are welded with grounding screws and connected with multi-strand flexible wires, with good grounding protection. Product shell protection grade up to IP54, in line with G87251.1 and IEC60439-1 standards.
regular dimensions
| regular Outline Size Table | |||||||||
| Model | Iron materials Thickness | Overall dimension | Mounting dimensions | Base plate | Door Lock Quantity | ||||
| High | Wide | Deep | High | Wide | High | Wide | |||
| JXF-2520/14 | 1.2 | 250 | 200 | 140 | 290 | 150 | 170 | 158 | 1 |
| JXF-3025/14 | 1.2 | 300 | 250 | 140 | 340 | 200 | 220 | 208 | 1 |
| JXF-3025/18 | 1.2 | 300 | 250 | 180 | 340 | 200 | 220 | 208 | 1 |
| JXF-3030/14 | 1.2 | 300 | 300 | 140 | 340 | 250 | 220 | 258 | 1 |
| JXF-3030/18 | 1.2 | 300 | 300 | 180 | 340 | 250 | 220 | 258 | 1 |
| JXF-4030/14 | 1.2 | 400 | 300 | 140 | 440 | 250 | 320 | 258 | 1 |
| JXF-4030/20 | 1.2 | 400 | 300 | 200 | 440 | 250 | 320 | 258 | 1 |
| JXF-5040/14 | 1.5 | 500 | 400 | 140 | 540 | 350 | 420 | 358 | 1 |
| JXF-5040/20 | 1.5 | 500 | 400 | 200 | 540 | 350 | 420 | 358 | 1 |
| JXF-5040/23 | 1.5 | 500 | 400 | 230 | 540 | 350 | 420 | 358 | 1 |
| JXF-6040/14 | 1.5 | 600 | 400 | 140 | 640 | 350 | 520 | 358 | 2 |
| JXF-6040/20 | 1.5 | 600 | 400 | 200 | 640 | 350 | 520 | 358 | 2 |
| JXF-6040/23 | 1.5 | 600 | 400 | 230 | 640 | 350 | 520 | 358 | 2 |
| JXF-6050/14 | 1.5 | 600 | 500 | 140 | 640 | 450 | 520 | 458 | 2 |
| JXF-6050/20 | 1.5 | 600 | 500 | 200 | 640 | 450 | 520 | 458 | 2 |
| JXF-6050/23 | 1.5 | 600 | 500 | 230 | 640 | 450 | 520 | 458 | 2 |
| JXF-7050/16 | 1.5 | 700 | 500 | 160 | 740 | 450 | 620 | 458 | 2 |
| JXF-7050/20 | 1.5 | 700 | 500 | 200 | 740 | 450 | 620 | 458 | 2 |
| JXF-7050/23 | 1.5 | 700 | 500 | 230 | 740 | 450 | 620 | 458 | 2 |
| JXF-8060/20 | 1.5 | 800 | 600 | 200 | 840 | 450 | 720 | 558 | 2 |
| JXF-8060/23 | 1.5 | 800 | 600 | 230 | 840 | 550 | 720 | 558 | 2 |
| JXF-8060/25 | 1.5 | 800 | 600 | 250 | 840 | 550 | 720 | 558 | 2 |
| JXF-10080/20 | 1.5 | 1000 | 800 | 200 | 1040 | 750 | 920 | 758 | 2 |
| JXF-10080/25 | 1.5 | 1000 | 800 | 250 | 1040 | 750 | 920 | 758 | 2 |
| JXF-10080/30 | 1.5 | 1000 | 800 | 300 | 1040 | 750 | 920 | 758 | 2 |
