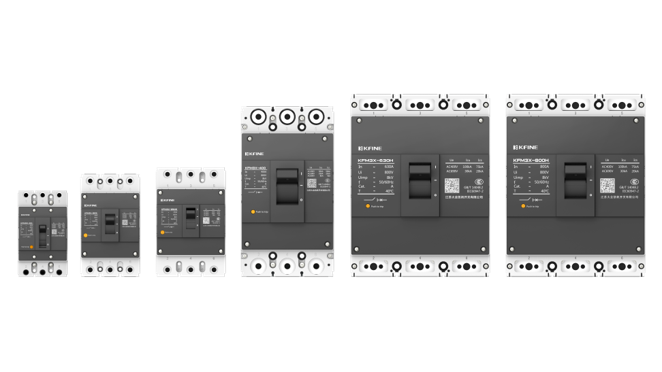

Product Features
1.Compact structure, small size, short flashover, safe and reliable operation;
2.MCCB have functions such as power distribution, motor protection, grounding protection, leakage protection, communication and fault recording;
3.The electronic molded case circuit breaker is equipped with an OLED screen, a low-power LCD screen, and a button wake-up function, making it convenient for users to obtain data more intuitively;
4.The residual current operated circuit breaker can be equipped with A-type and AC-type leakage protection;
5.The thermal magnetic circuit breaker has a breaking capacity level of C, S, and M types, and is suitable for the connection of incoming lines in AC400V distribution systems.
Rated working current range: 10 A~1600 A Divided into 7 shell current: 100 A, 160 A, 250A, 400A, 630A, 800 A, 1600 A Short circuit breaking capacity: AC400V, Icu=100kA Mechanical service life: up to 20000 times for 250 shell frames and below, and up to 10000 times for 400 shell frames and above Electrical service life: up to 8000 times for 250 shell frames and below, and up to 7500 times for 400 shell frames and above (maintenance free) Release: thermal magnetic release, single magnetic release, electronic release
