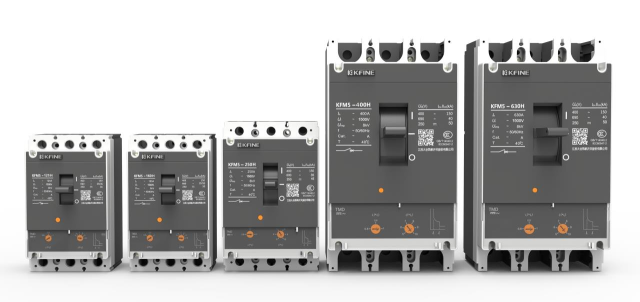

Product Features
1 Modular structure, rotating double break point contact system, with excellent current limiting characteristics
2 Unique and innovative overall appearance
3 Brand new stuck mechanism and energy tripping mechanism
4 Rotating shaft system for preventing arc backflow
5 thermal magnetic release, electronic release, leakage release
6 Brand new operating mechanisms with highly reliable handle indication
7 Multiple breaking capabilities, suitable for different requirements and occasions
8 Diversified installation methods (fixed front, fixed rear, plug-in, and withdrawable)
Shell current: 125A, 160A, 250A, 400A, 630A, 1600A; Current range: 1.5A-1600A; Current category: AC, DC; Breaking capacity: C, S, M, H, V, R, HU, HU1, HU2; Short circuit breaking capacity: up to Ics=Icu=200kA (AC400V); Mechanical service life: up to 40000 times; Electrical service life: up to 20000 times; Type of release: Thermomagnetic adjustable, Thermomagnetic fixed, Electronic, Leakage type; The release is fully modular: with a unified installation size, different releases can be selected.
