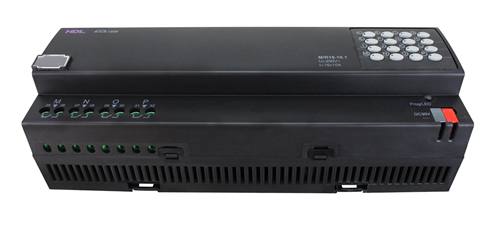

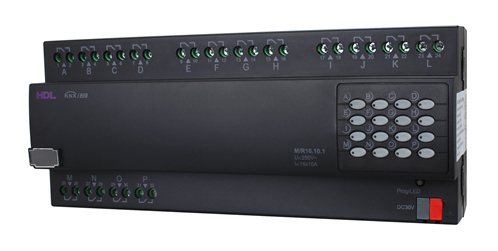

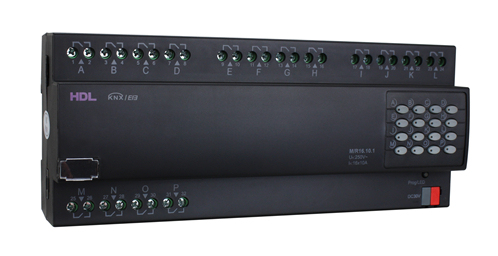

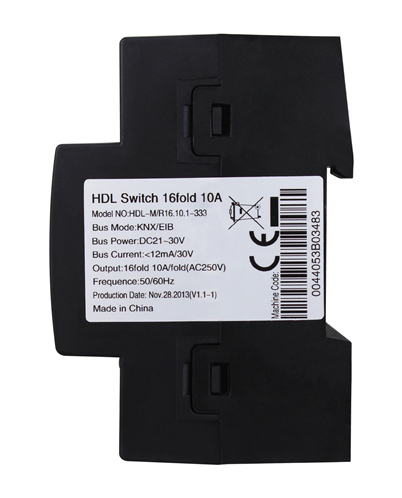

KNX 10A High Power Switch Actuator includes 4 types (4CH, 8CH, 12CH and 16CH) of output circuits, and each channel outputs 10A current. With characteristics of long life, low power consumption and fast execution speed,
this series of actuators are in full compliance with European KNX safety standards and protocols of high-power switching equipment.
■ 10A High Power Switch Actuators include 4 types: 4, 8, 12 and 16 channels of actuator.
■ Maximum output current of each channel:10A.
■ Control functions: Statistical ON time, Status response, Status recall, Staircase light, Flashing, ON/OFF delay,
Protection delay, Scene control, Threshold function, Curtain control, etc.
■ Logic function: AND, OR, XOR, Gate.
■ Heating function: PWM(1bit/1byte) control output.
Basic Parameters
Working voltage: 21~30V DC Class 2
Working current: 15mA/30V DC
Input voltage:120V/240V AC (50/60Hz)
Communication: KNX
Cable diameter of KNX terminal: 0.6-0.8mm
Rated switch current: 10A lighting load, max inrush 500A
Operation times: >100,000
Line in/Line out terminals: 2.5-4m㎡
Output channel: 16CH/10A
Capacitance: <300μf<>
External Environment
Working temperature : -5℃~45℃
Working relative humidity : ≤90%
Storage temperature : -20℃~60℃
Storage relative humidity : ≤93%
Specifications
Dimensions：90×216×64(mm)
Net weight：830g
Housing material：Flame-retardant nylon
Installation ：35mm DIN rail installation
Protection rating (Compliant with EN 60529) ：IP20
