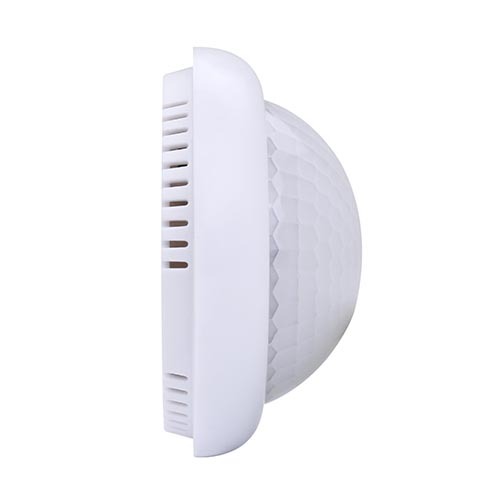

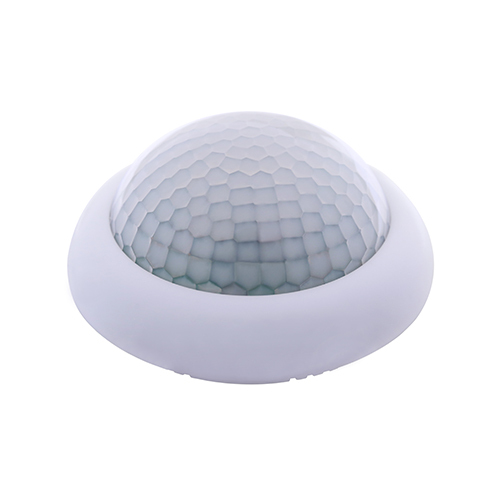

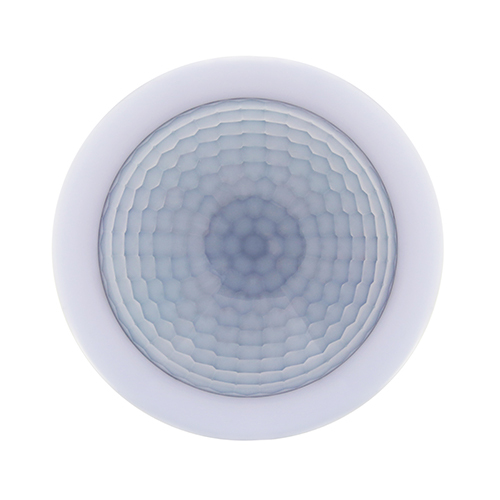

KNX Ceiling Mount OmniSense Sensor can detect movement at a distance of up to 24 meters, which can be controlled logically by different input conditions. Meanwhile, the parameters can be set via ETS software to select the detection area, and 6 detection areas in total can be selected.
■ With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semiautomatic mode. Telegram locking/unlocking and delay time can be set.
■ With 2CH constant brightness control, 4 dimming values and forced operation can be set.
■ The sensor has 5 logic blocks and each block can control 10 object outputs. Dry contact and telegram locking/
unlocking and delay time can be set.
■ Control types: Switch control, Absolute dimming control, Curtain control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
■ Logic inputs: PIR sensor status, brightness value, temperature value, dry contact status and external telegrams.
■ 2 logical relations: AND, OR.
■ 2 working modes: Single mode and master / slave mode.

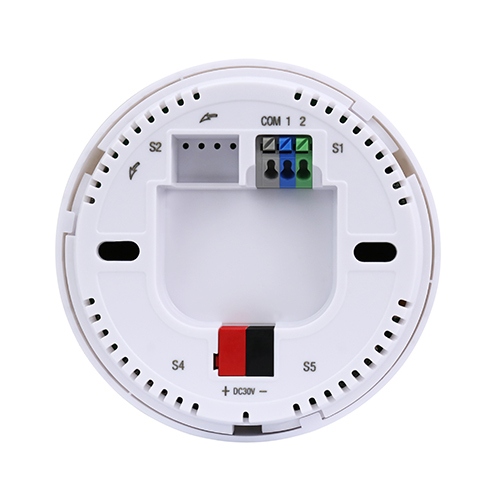

■ 2CH dry contact can be set as dry contact and LED status display and the operation function can be set as switch control, dimming control, scene control.
■ The detection area can be selected.
Basic Parameters
Working voltage 21~30V DC
Working current 10mA/30V DC
Communication KNX
Cable diameter of KNX terminal 0.6 - 0.8mm
PIR detection range Φ30m (Installation height: 3m)
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions Φ84×42 (mm)
Net weight 60g
Housing material ABS, PC
Installation
Ceiling mount
Protection rating (Compliant with EN 60529) IP20
