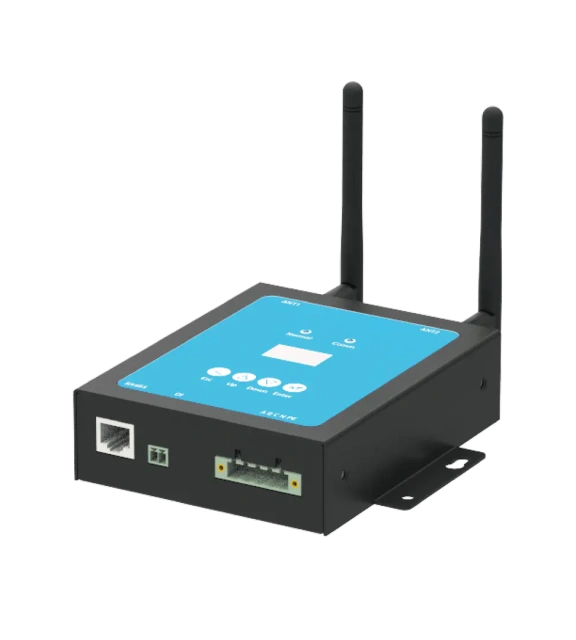

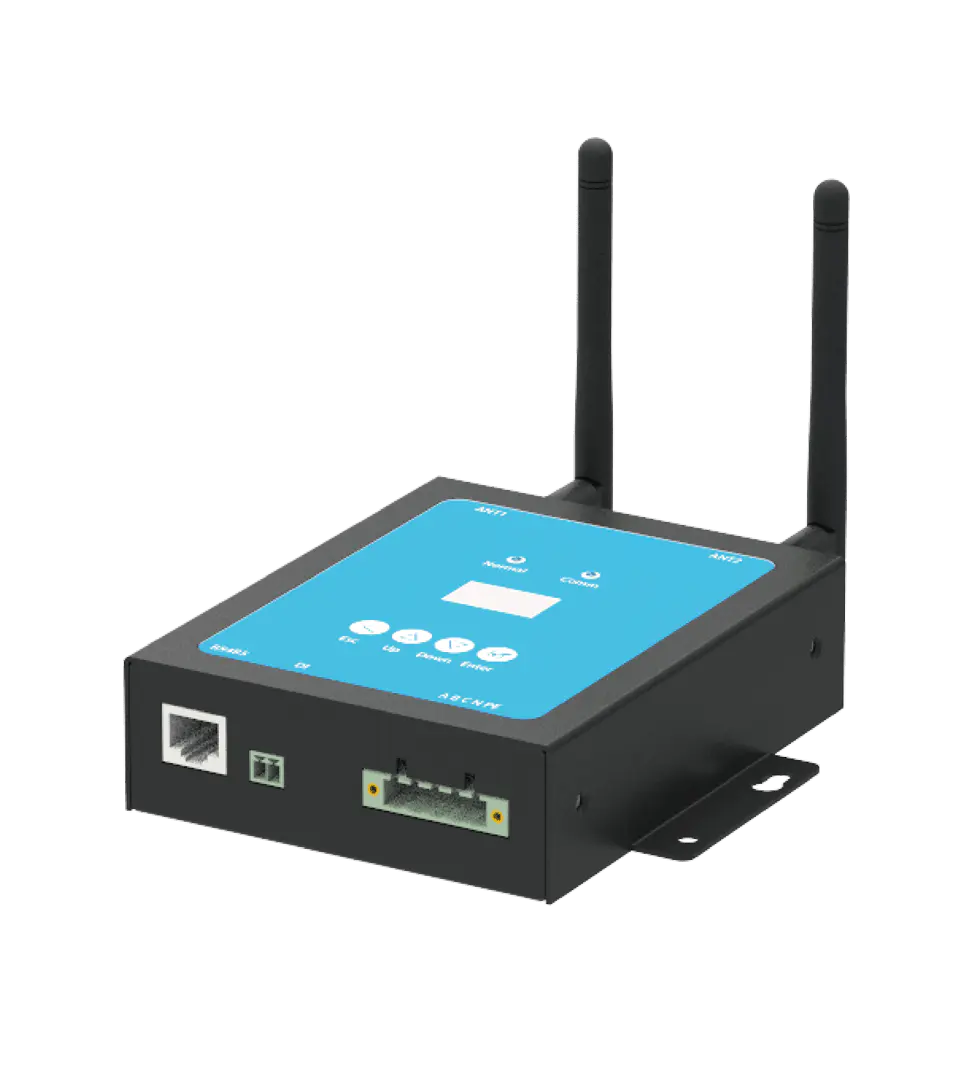

Model | MECD |
Communication interface | |
Communication method | Zigbee, PLC |
Max. number of inverters connected | 5、10、20、32 (Max.) |
Communication to router | WIFI |
WIFI wireless security | WEP, WPA2-PSK |
RS485 | Reserved |
Max. distance (free space) | PLC 300m; Zigbee 100m (Max. straight-line distance) |
Power Supply | |
AC power supply | 100 to 240V AC, 50/60Hz |
Power consumption | 5W typical, 10W Maxinum |
Mechanical Data | |
Dimenstions (L/H/W) in mm | 133.6×132×35.5 mm |
Weight (kg) | 0.3 |
Operation temperature range | -20~+50℃ |
Mounting method | Wall-mounted |
Display | OLED and LED indicators |
Features | |
Grid type | Single phase/three phase |
Digital Input | Control device connection |
Other | |
Compliance | IEC60950, IEC61000-6-2, FCC Part15 Class B / Class C |
Warranty | 3 years |
