Miniature Perfluorohexanone Fire Suppression Device offers fast fire extinguishing with automatic detection, ideal for battery cabinets and modules. Compact size, pressure-free storage, and eco-friendly agent ensure high safety and reliability. Perfect for energy storage systems with non-conductive, non-toxic, and smoke-free performance.More

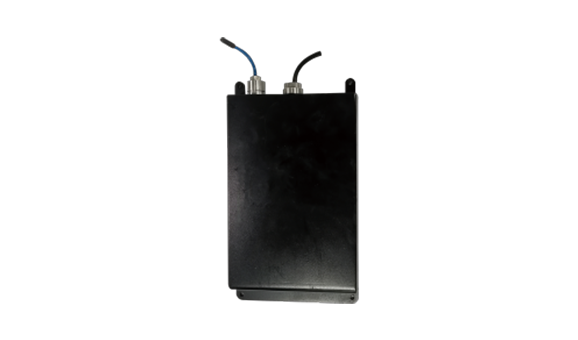

Miniature perfluorohexanone fire suppression device
Product Features
Quickly extinguish the fire.
Small size, only the size of a charging treasure, can be installed internally.
Products are stored without pressure and have high safety.
Automatic fire detection and fire extinguishing functions are integrated and automatically started.
Closer to the fire source, high reliability in detection and fire extinguishing.
The sprayed extinguishing agent is insulated, non-conductive, non-toxic and smokeless, which has no harm to electronic components and other electrical equipment and surrounding personnel, and has no corrosion effect and is environmentally friendly.
It is directly installed in the battery cabinet, battery module, etc. with bolts, and the installation and maintenance are very simple.
Product technical parameters
100g miniature perfluorohexanone fire suppression device
No.
Name
Technical parameters
1
Filling capacity
100g
2
Working temperature
-40 C ~ 70 C
3
Storage pressure
no pressure
4
Maximum working pressure
1.2MPa
5
Working voltage
DC 24V
6
Operating temperature
170°C
7
Injection time
≤3s
8
Total flooded protection space
≤0.1m3
9
Overall dimension (L*W*H)
L150*W96*H16mm
10
Installation dimension
86 * 168mm
160g miniature perfluorohexanone fire suppression device
