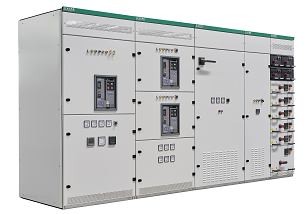

MODAQO-M modular intelligent low-voltage distribution system is a self-developed product of the company, which has the advantages of flexible design, safety and reliability, easy operation, and economical configuration. It meets the standards of IEC61439 and GB7251, and can be used as a distribution center, motor control center, and power lighting control system. It is widely used in fields such as energy and electricity, petrochemical industry, mining, and commercial buildings.
Product advantages
1. Compact structure, reasonable layout, standardized component scheme, and convenient engineering design
2. The same cabinet can achieve mixed packaging of drawer type, plug-in type, and fixed partition type units
3. Sustainable optimization and improvement of equipment, with high operational reliability
Product features
1. Multiple cabinet types: MDP, MDMW, MDMF, MDG, which can meet the different needs of users
2. Cabinet structure: An integrated frame structure composed of unique three-way connectors and seamless square steel pipes
3. Key contact: Imported beryllium copper alloy silver laminated contact, excellent conductivity, flexible insertion and removal, and reliable contact
4. Busbar system: Unique C-type bus, with strong current carrying capacity, high mechanical strength, good heat dissipation performance, and seamless connection
5. Bus connection: The BLTS bus introduced from Germany can achieve seamless integration with the MODAQO-M distribution cabinet
6. Intelligent power distribution: ZKM-SCADA introduced from Germany can achieve the function of intelligent power distribution in the product
Parameters：
Main Busbar
lnA A 630/800/1000/1250/1600/2000/2500/3200/4000/5000/6300
Icw kA 65/80/100
Ipk kA 176/220/330
Dropper Busbar
lnc A 1600
lcw kA 65
Ipk kA 143
Basic Date
Ue V 400/690
Ui V 1000AC/1200DC
fn Hz 50/60
Impact withstand voltage V 3000/1min
Uimp kV 8
Internal Partitions Form1-4b
