Product Description

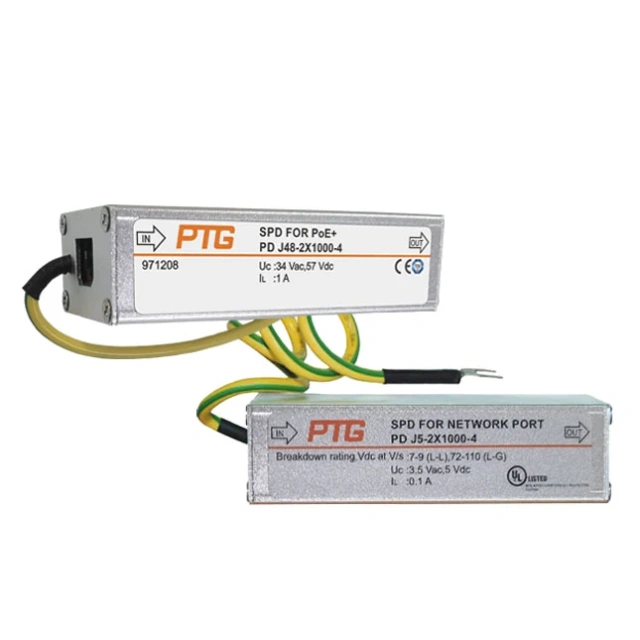

The PoE+ network surge protector is suitable for protecting Ethernet (Cat. 6 cables) and similar comprehensive wiring systems that conform to Class E standards. It uses gas discharge tubes and diode matrices to achieve full-line protection and a fully shielded enclosure, and is suitable for DIN rail and bracket installation.
Technical Parameters
| PD J5-2X1000-4 |
| Item | Uc | In?(8/20 μs) | IL | Cut-off frequency | Connection |
| Parameter | 3.5Vac/5Vdc | 2.5kA | 100mA | 250MHz | RJ45 |
| Approvals | TUV,CE,UL |
| PD J48-2X1000-4 |
| Item | Uc | In?(8/20 μs) | IL | Cut-off frequency | Connection |
| Parameter | 34Vac/57Vdc | 2.5kA | 1A | 250MHz | RJ45 |
| Approvals | TUV,CE |
