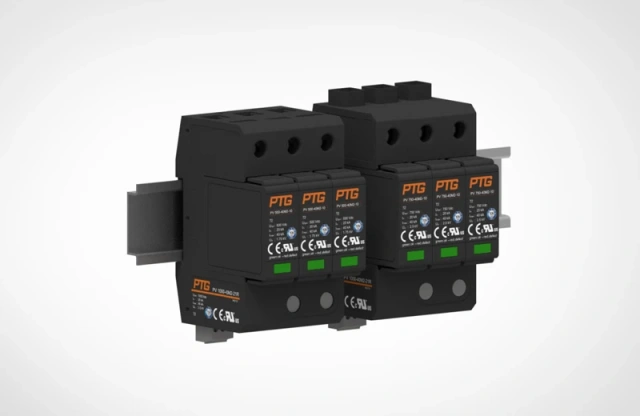

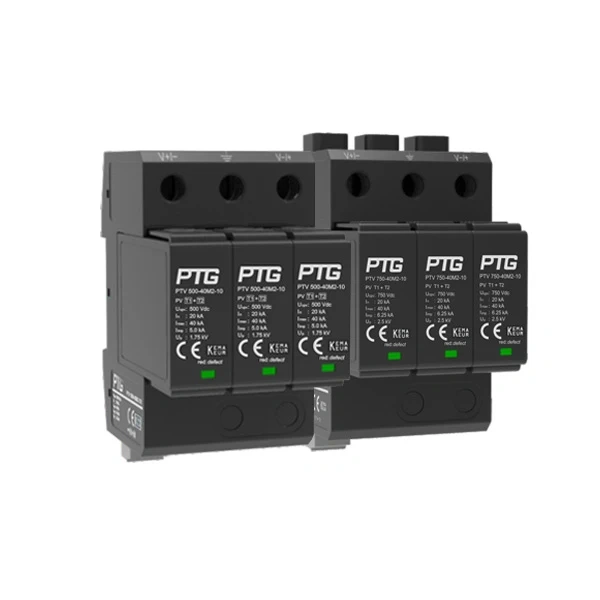

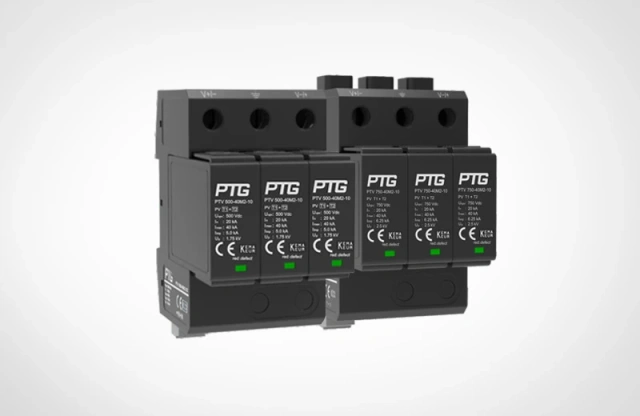

Adopts a Y-type circuit design.
Covers a voltage range of 100Vdc to 1500Vdc, meeting the application requirements of the mainstream market.
The vibration-resistant and pluggable module design ensures stability and reliability during transportation and current discharge.
Large arc shield baffle arc-extinguishing technology ensures reliable disconnection after module failure, reducing the risk of fire.
When the SPD malfunctions and disconnects, the creepage distance between contacts reaches 10mm, ensuring safety and reliability.
Wide voltage range from 100Vdc to 1500Vdc, covering mainstream application needs.
Class I test impulse discharge current Iimp(10/350μs) up to 6.25kA.
Short-circuit current rating Iscpv up to 20kA, better suited for energy storage system requirements.
Ingenious large arc shield design enables rapid heat conduction at low-temperature solder joints, preventing fire risks.
After product fault tripping, contact creepage distance reaches 10mm, ensuring safety and reliability.
Y-type fully symmetric structure protection circuit.
Voltage range from 100Vdc to 1500Vdc, covering mainstream application needs.
Short-circuit current rating Iscpv up to 20kA, better suited for energy storage system requirements.
Large arc shield arc-extinguishing technology, ensuring reliable tripping after module failure and minimizing fire risks to the greatest extent.
Visual status indication with local red-green windows and remote signaling dry contacts.
