Pre-filled Perfluorohexanone Fire Suppression Device 1U/2U/6U Modular Design for Cabinet Fire Protection

Pre-filled Perfluorohexanone Fire Suppression Device 1U/2U/6U Modular Design for Cabinet Fire Protection

Zephyr 2015 China
  • Pre-filled Perfluorohexanone Fire Suppression Device 1U/2U/6U Modular Design for Cabinet Fire Protection
  • Pre-filled Perfluorohexanone Fire Suppression Device 1U/2U/6U Modular Design for Cabinet Fire Protection
Summary

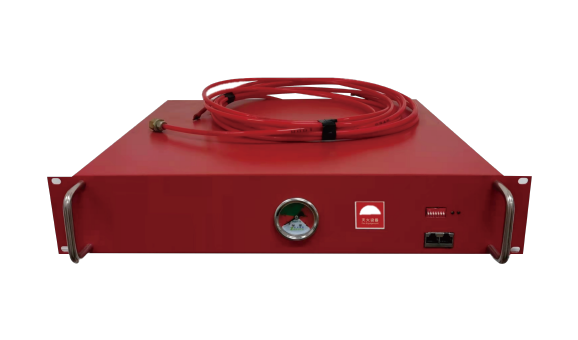

Pre-filled Perfluorohexanone Fire Suppression Device (1U/2U/6U) is a modular fire protection solution designed for cabinets, offering passive temperature detection, remote positioning via 485 communication module, and rapid fire suppression within 60 seconds. Ideal for energy storage and battery systems in renewable energy applications, this device ensures reliable fire safety in confined spaces such as electrical cabinets and server racks, with protection volumes ranging from 1.2m3 to 7.5m3.More
  • Pre-filled Perfluorohexanone Fire Suppression Device 1U/2U/6U Modular Design for Cabinet Fire Protection

Preset
perfluoro suppression device for hexanone fire.

Product Features

  • 19-inch standard cabinet installation and modular design.
  • Passive passive temperature detection trigger.
  • 485 communication module, remote positioning.
  • Direct and indirect targeted configuration.

Product technical parameters

1U preset perfluorohexanone fire suppression device
No.
Name
Technical parameters
1
Specification
1U
2
Model
jges-f-1.25/1.6ze
3
Maximum filling capacity
1.25kg
4
Working temperature
-20C~65C
5
Storage pressure
1.6MPa(20C)
6
Maximum working pressure
3.0MPa
7
Operating temperature
170C
8
Injection time
60s
9
Total flooded protection space
1.2m3
10
Overall dimension(L*W*H)
L483*W455*H88mm
2U preset perfluorohexanone fire suppression device
No.
Name
Technical parameters
1
Specification
2U
2
Model
jges-f-3.75/16ze
3
Maximum filling capacity
3.75kg
4
Working temperature
-20C~65C
5
Storage pressure
1.6MPa(20C)
6
Maximum working pressure
3.0MPa
7
Operating temperature
170C
8
Injection time
60s
9
Fully submerged protection space
3.5m3
10
Overall dimension(L*W*H)
L483*W455*H88mm
6U preset perfluorohexanone fire suppression device
No.
Name
Technical parameters
1
Specification
6U
2
Model
jges-f-7.5/1.6ze
3
Maximum filling capacity
7.5kg
4
Working temperature
-20C~65C
5
Storage pressure
1.6MPa(20C)
6
Maximum working pressure
3.0MPa
7
Operating temperature
170C
8
Injection time
60s
9
Fully submerged protection space
7.5m3
10
Overall dimension(L*W*H)
L700*W442*H266mm
Zephyr
Zephyr
2015
China
BSS Technology, BITS System, BIDS System, BIES System
