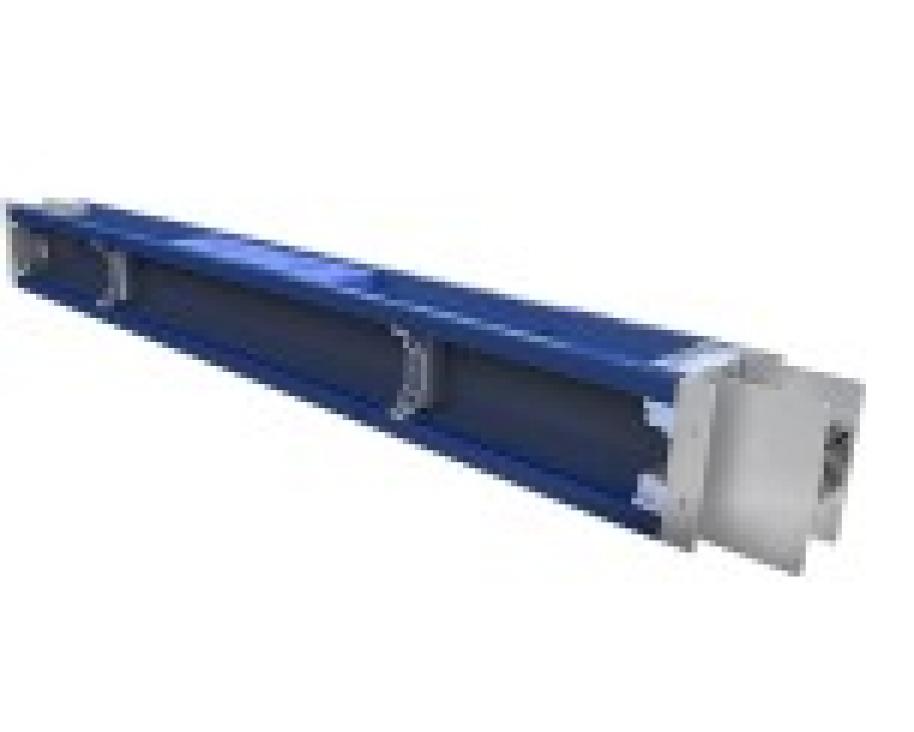

Pro B busway adopts a new design, from the inside to the outside, exudes a unique charm, and enjoys the convenience and safety brought by technological innovation.
l Unique technological charm
High conductivity conductor, save 21% power than normal aluminum conductor;
High heat dissipation housing, lower temperature rise, longer product life;
Composite insulation design, stronger ability to withstand impulse voltage;
The integrated side plate makes the grounding continuity more reliable;
The patented design of P Elastic Joint? Elastic Joint? reduces the area of the existing plug-in interface by more than 50%. The parallel connection technology of dual-plug interfaces can truly realize fully compatible plug-in connections below 1000A. The pin adopts a patented elastic design, which can automatically compensate for the deformation during long-term operation.
Rated Current | 250-5000A | |
Frequency | 50Hz/60Hz | |
Rated Voltage | 1000V | |
IP | IP54/IP65/IP66 | |
Product Series | Pro B Series Compact Busway | |
Design standard | IEC61439-1；IEC61439-6；GB/T7251.1；GB/T7251.6；IEC60331；IEC 60529 | |
Product Type | Low Voltage Busway | |
System | 3P3W/3P4W/3P5W | |
