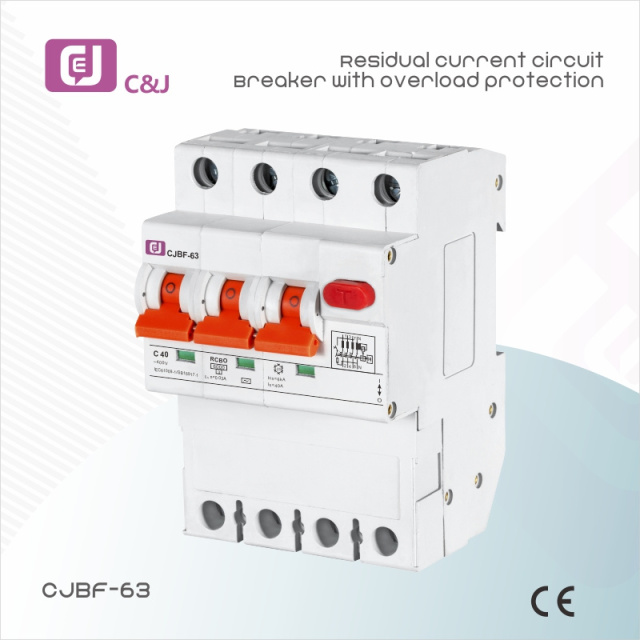

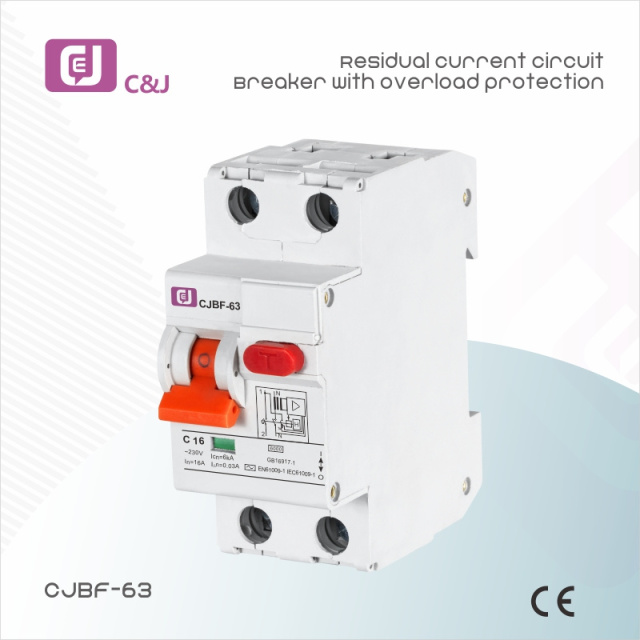

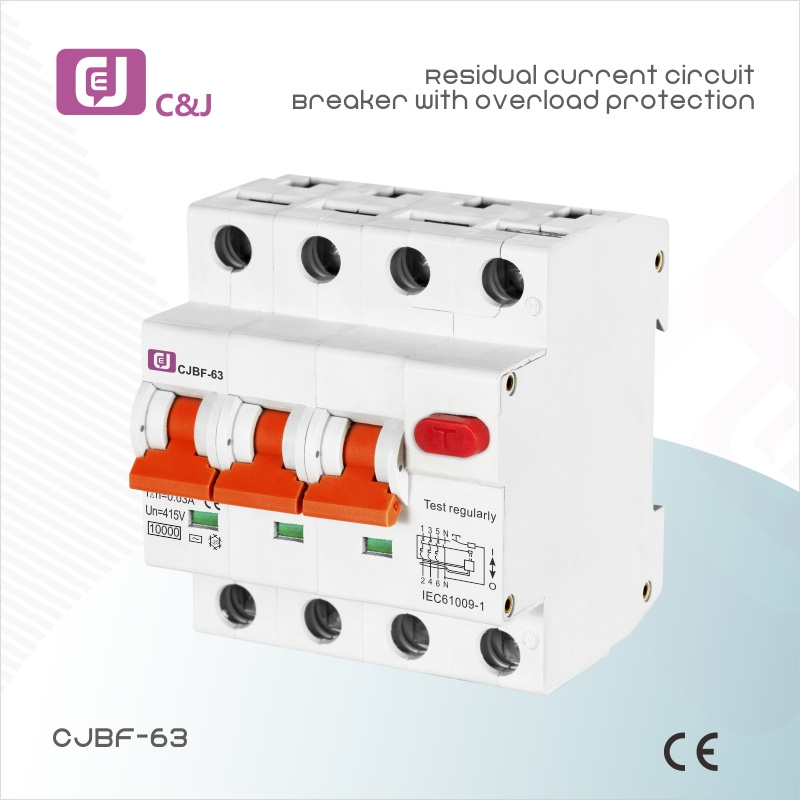

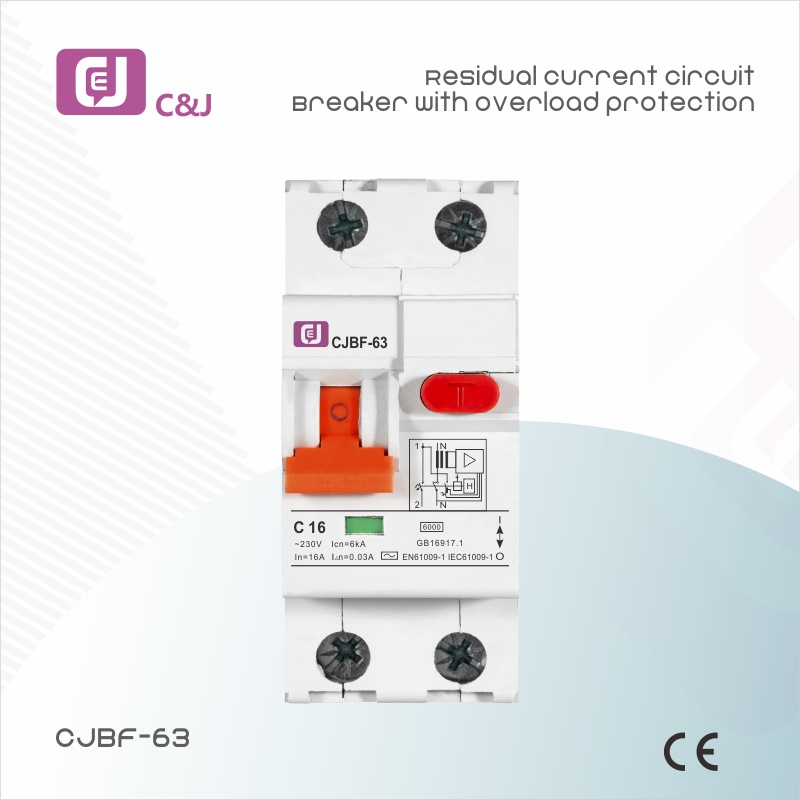

CJBF-40 series miniature circuit breaker is a new type product researched and developed by our company independently on the basis of absorbing overseas advanced technologies. It complies with the standards GB16917.1 and IEC61009-1. The products are featured with small volume, high breaking capacity of 10KA, neutral breaking function, etc, are widely applied to low-voltage electric systems of AC50 HZ, rated voltage of 230V and rated current not exceed 63A, protect the human body against electric shock, and protect the building and similar purposed circuit equipment against over-current or short circuit. The products also can be used to prevent fire danger caused by earthing fault current due to the damage of insulation of circuits and electrical equipment. The product also has a wide current range, up to 63A is available, instead of two pole and medley pole products, saves space.
The circuit breaker should be wired according to the polarity marks, the positive and negative polarities of power supply should be absolutely proper. Power incoming terminal of circuit breaker is 1 (1P) or 1,3 (2P), load terminal is 2 (1P) or 2 (positive end of load),4 (negative end of load)(2P), don't make wrong connection.
When placing an order, please give clear indications on model, rated current value, tripping type, pole number and quantity of circuit breaker e.g: DAB7-63/DC miniature direct current circuit breaker, rated current is 63A tripping type is C, two-pole, C type 40A, 100 pieces, then it can be expressed as: CJBF-63/DC/2-C40100pcs.
| Standard | IEC61009/EN61009 | |||||||
| Poles of number | 1P+N/2P | 3P+N/4P | 2P | 3P+N/4P | ||||
| Rated current ln A | 6-63A | 6-32A | 6-63A | 40-63A | ||||
| Rated voltage(Ue) | 230V/400V,50HZ | |||||||
| Rated current In | 6-63A | |||||||
| Release features | B,C,D features curves | |||||||
| Shell protection grade | IP40(After installation) | |||||||
| Rated break capacity lcn | 10kA(CJBF-40),6kA(CJBF-63) | |||||||
| Rated residual action current | 10mA 30mA,50mA 100mA, 300mA | |||||||
| Maximum available fuse | 100AgL(>10KA) | |||||||
| Climatic conditions resistance | According to IEC1008 in L standard | |||||||
| Total life | 180000 times of operation | |||||||
| Lifespan | No less than 6000 times on-off action | |||||||
| No less than 12000 times on-off action | ||||||||
| Release type | Magnetic type | |||||||
| Functions | Protection against short circuit,leakage, overload, over voltage, isolation | |||||||
| Type of residual current | AC and A | |||||||
| Rated frequency f Hz | 50-60Hz | |||||||
| Rated working voltage Ue VAC | 230/400 | |||||||
| Rated residual current I△n mA | 10,30,100,300 | |||||||
| Insulation voltage Ui | 500V | |||||||
| Rated impulse withstand voltage Uimp | 6KV | |||||||
| Instantaneous tripping type | B/C/D | |||||||
| Rated short circuit lcn(kA) | CJBF-40 10KA, CJBF-63 6KA | |||||||
| Mechanical | 12000 | |||||||
| Electrical | 6000 | |||||||
| Protection degree | IP40 | |||||||
| Wire mm2 | 1~25 | |||||||
| Working temperature (with daily average≤35℃) | -5~+40℃ | |||||||
| Resistance to humidity and heat | Class 2 | |||||||
| Altitude above sea | ≤2000 | |||||||
| Relative humidity | +20℃, ≤90%; +40℃,≤50% | |||||||
| Pollution degree | 2 | |||||||
| Installation environment | Avoid obvious shock and vibration | |||||||
| Installation class | Class II, Class III | |||||||
| Auxiliary contact | √ | |||||||
| Alarm contact | √ | |||||||
| ALT+AUX | √ | |||||||
| Shunt release | √ | |||||||
| Under voltage release | - | |||||||
| Over voltage release | √ | |||||||
