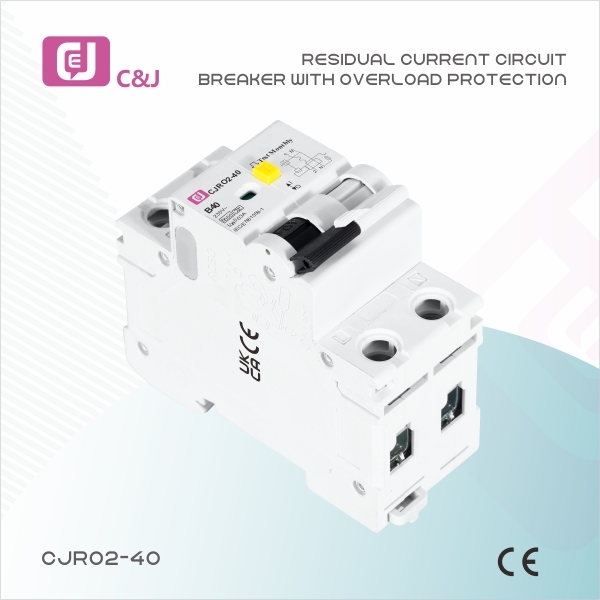

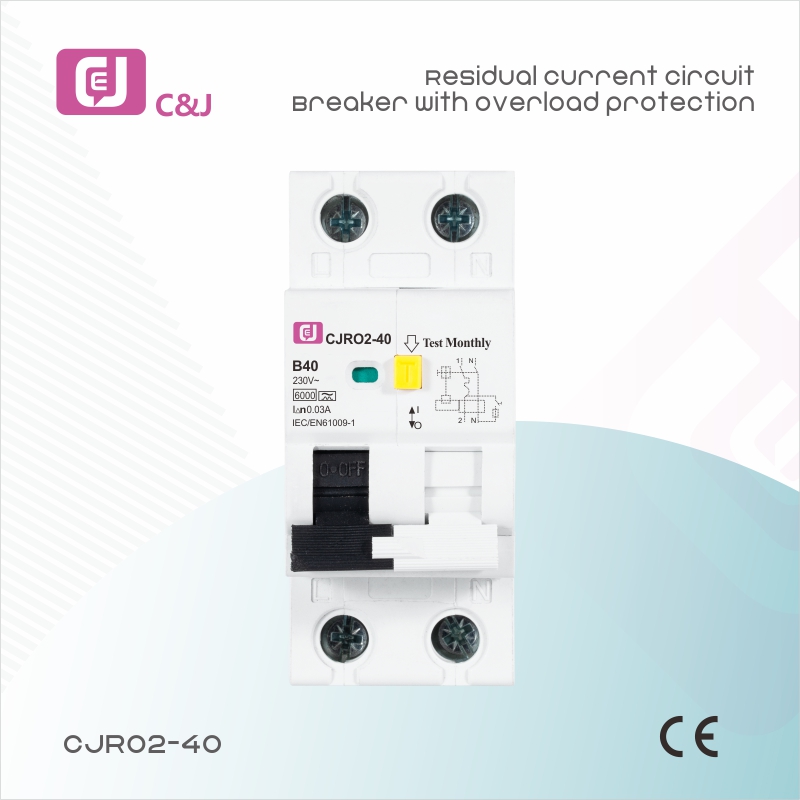

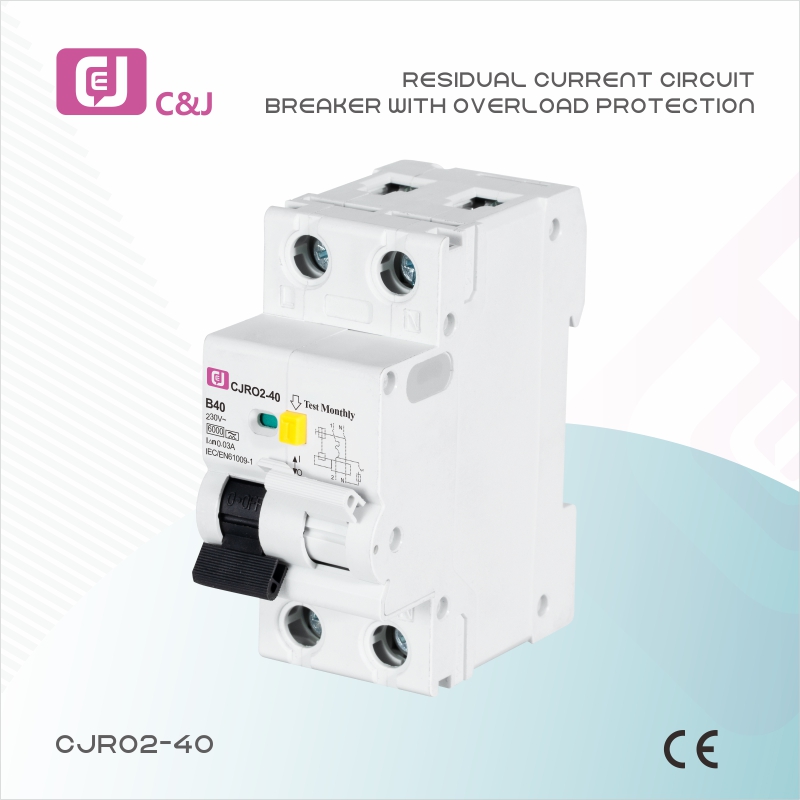

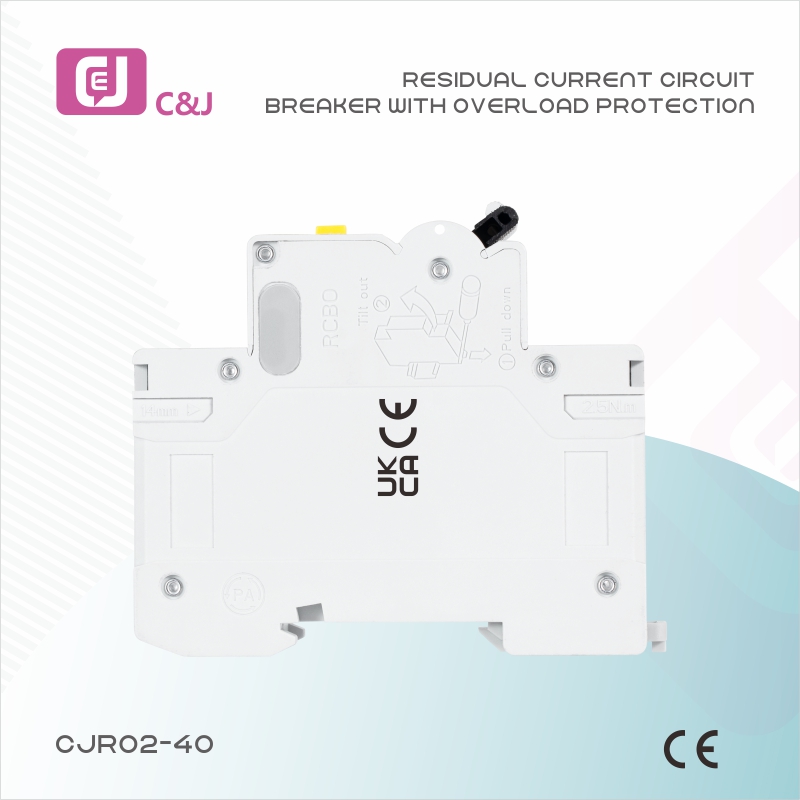

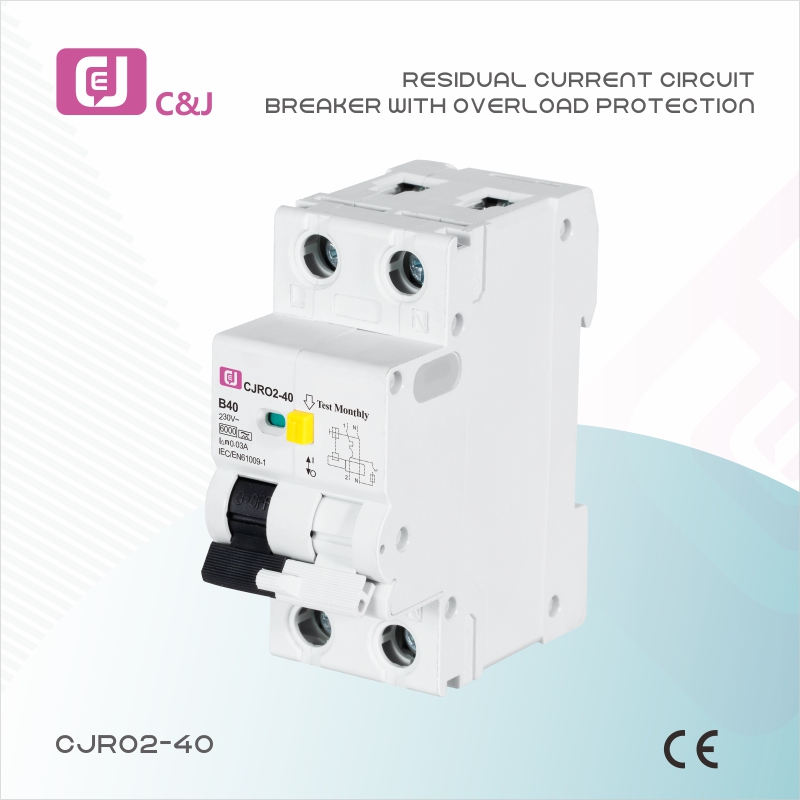

| Standard | IEC61009-1/EN61009-1 | |||||||
| Type | Electronic type | |||||||
| Residual current characteristics | AC | |||||||
| Pole No | 1P+N | |||||||
| Tripping curve | B, C, D | |||||||
| Rated short-circuit capacity | 6kA | |||||||
| Rated current (A) | 6A, 10A, 16A, 20A, 25A, 32A | |||||||
| Rated voltage | 230V AC | |||||||
| Rated frequency | 50/60Hz | |||||||
| Rated residual operating current(mA) | 0.03, 0.1, 0.3 | |||||||
| Tripping duration | instantaneous≤0.1s | |||||||
| Electro-mechanical endurance | 4000 cycles | |||||||
| Connection terminal | pillar terminal with clamp | |||||||
| Terminal Connection Height | H1=16mm H2=21mm | |||||||
| Over-voltage tripping | 280V±5% | |||||||
| Connection capacity | Flexible conductor 10mm2 | |||||||
| Rigid conductor 16mm2 | ||||||||
| Installation | On symmetrical DIN rail 35.5mm | |||||||
| Panel mounting | ||||||||
| Test procedure | Type | Test Current | Initial State | Tripping or Non-tripping Time Limit | Expected Result | Remark | ||
| a | B,C,D | 1.13In | cold | t≥1h | no tripping | |||
| b | B,C,D | 1.45In | after test a | t＜1h | tripping | Current in the 5s in th increase of stability | ||
| c | B,C,D | 2.55In | cold | 1s＜t＜60s | tripping | |||
| d | B | 3In | cold | t≤0.1s | no tripping | Turn on the auxiliary switch to close the current | ||
| C | 5In | |||||||
| D | 10In | |||||||
| e | B | 5In | cold | t＜0.1s | tripping | Turn on the auxiliary switch to close the current | ||
| C | 10In | |||||||
| D | 20In | |||||||
| The terminology “cold state” refers to that no load is carried before testing at the reference setting temperature. | ||||||||
| Residual Current Action Breaking Time | ||||||||
| type | In/A | I△n/A | Residual Current (I△) Is Corresponding To The Following Breaking Time (S) | |||||
| I△n | 2 I△n | 5 I△n | 5A,10A,20A,50A,100A,200A,500A | I△t | ||||
| general type | any value | any value | 0.3 | 0.15 | 0.04 | 0.04 | 0.04 | Max Break-time |
| Lagangle(A) | A Tripping Current(A) | |||||||
| Lower Limit | Upper Limit | |||||||
| 0° | 0.35 I△n | 0.14 I△n | ||||||
| 90° | 0.25 I△n | |||||||
| 135° | 0.11 I△n | |||||||
