Specifications
| Adapt connector external diameter | ≤21mm |
| Caliber | 25±2mm |
| Size before shrinkage | 210±10mm |
| Size after shrinkage | ≤220mm |
| Wall thickness after contraction | 3.0±0.2mm |
| Extraction method | Unidirectional extraction |
| Ambient temperature | -40℃+80℃ |
| Flame rating | UL94-V0 |
| Material quality | Silica gel |
| Colour | Black, customizable |

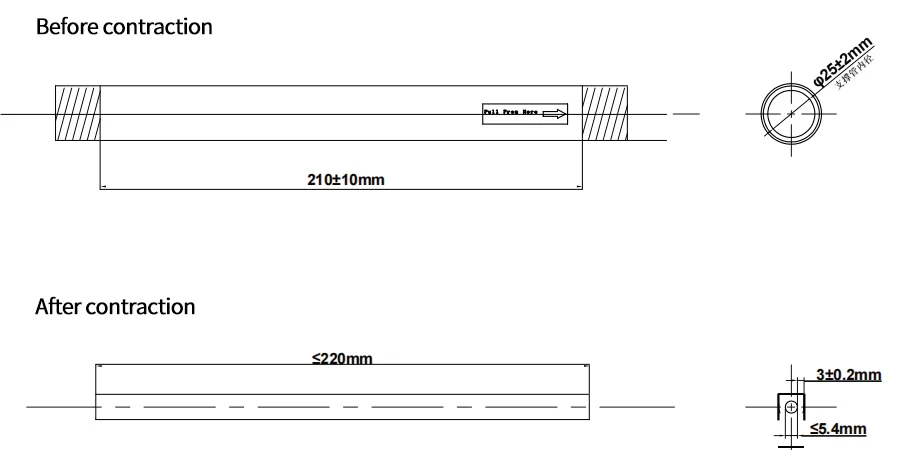

Overall dimension drawing
