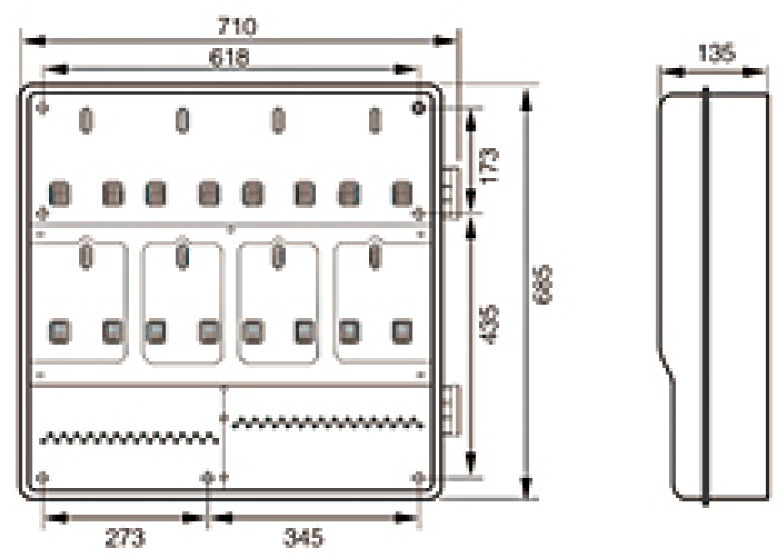

Installation dimension drawing

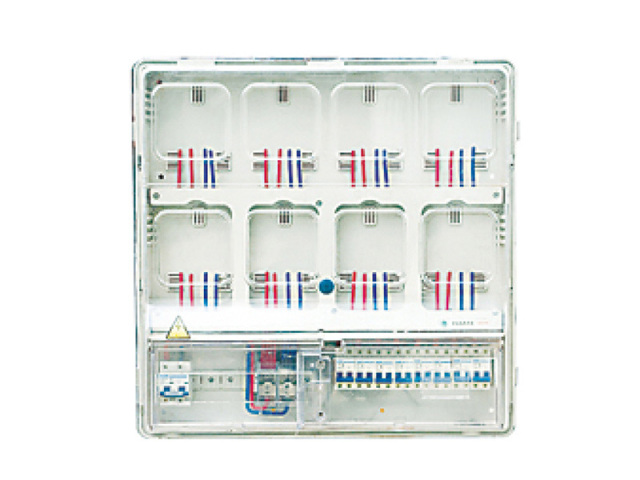

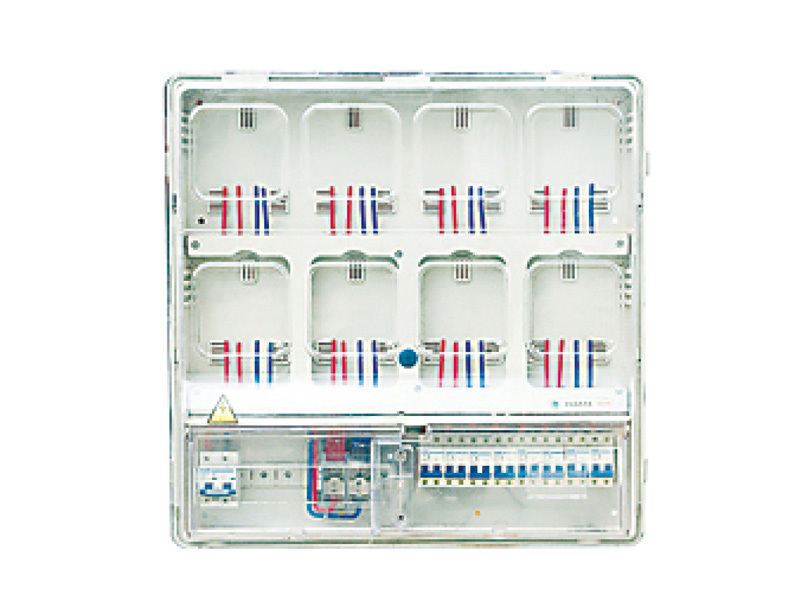

Product model and main configuration
| Product model and main configuration | |||||
| Model | Configuration | Name | Specifications | Quantity | Remarks |
| DLDX1-801 | Bus Configuration | Terminal (1 in 2 out) | FJ6/JTS2-35/2 × 10 | 1 | Three-phase incoming line |
| Terminal (1 in 3 out) | FJ6/JTS2-35/3 × 10 | 2 | |||
| Terminal (1 in 8 out) | FJ6/JTS2-70/8 × 10 | 1 | |||
| Pre-Table Configuration | Isolating switch | NH2-100/1P 63A | 8 | ||
| post-table configuration | Circuit Breaker | DZ47-60/2P 32A | 8 | ||
| DLDX1-802 | Configuration of main switch | Circuit Breaker | DZ158-125/2P 100A | 1 | |
| Pre-Table Configuration | Terminal (1 in 6 out) | FJ6/JTS2-70/8 × 10 | 2 | ||
| post-table configuration | Circuit Breaker | DZ47-60/2P 32A | 8 | ||
| DLDX1-803 | Configuration of main switch | Circuit Breaker | DZ158-125/2P 100A | 1 | |
| Pre-Table Configuration | Terminal (1 in 8 out) | FJ6/JTS2-35/4 × 10 | 2 | ||
| post-table configuration | Junction box (16 in 16 out) | FJ6/JHD-8/E | 1 | ||
Note: the main switch connection line BV16mm 2 or BV25mm 2 electric energy meter connection line BV6mm 2 or BV10mm 2.
