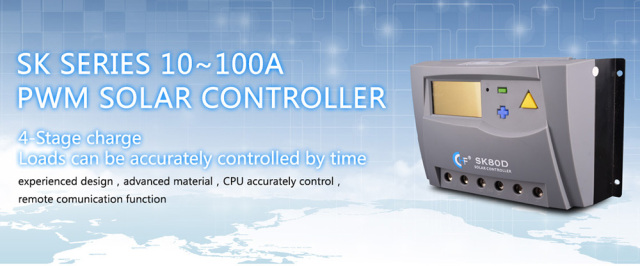

SK SERIES
INTELLIGENT?SOLAR CHARGE CONTROLLER
SK series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably.
Meanwhile, parameters are explicitly displayed. All parameter values can be set to meet various applications.?
Key Features
Intelligent, high-efficient PWM charging mode in series connection
Multistage charging technology(bulk, absorption, float and equalized)
Most parameters displayed explicitly
Automatic detection of battery voltage?
Automatic load reconnection?
Automatic temperature compensation
Simple button operation
Adaptable to Sealed, Gel, Flooded and other customized battery type
Preset parameters for charging and discharging (Special parameters can be customized)
All working parameters can be adjusted and reset
Various controlling modes for load
Electronic Protections
Over charge protection
?Over discharge protection
?Over temperature and over load protection?
?Automatic electronic fuse
?Short circuit protection of load and PV?
?Input over voltage protection?
?Reverse current protection at night?
?Reverse connection protection of PV, load, and battery
?Overheat protection and short circuit protection of USB output
