Product Name:Sturdy Stainless Steel Solar Adapter Plate for hanger bolt
Product Description:

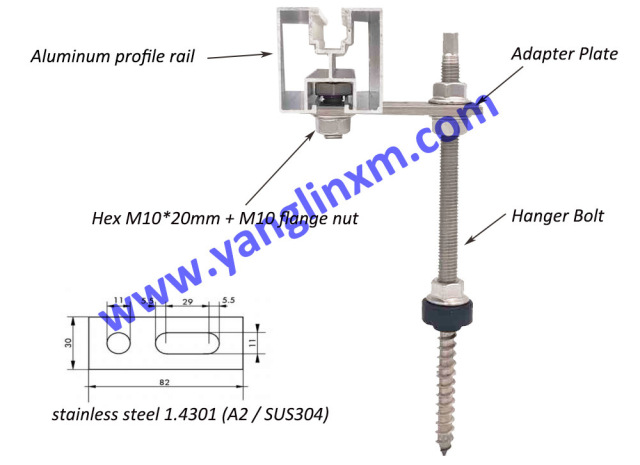

Solar Adapter plate made of 1.4301 stainless steel A2, an austenitic stainless steel characterized by very good corrosion resistance. L x W x D = 82 x 30 x 5mm. With 11mm round hole and 11 x 40mm slot. Soalr adapter plates serves as a connection between hanger bolts and your PV aluminum profile rails. Rails are fastened with hex head screws or T bolt via the slot and can be positioned this way. The round hole is used to fasten the adapter to the hanger bolt.
For Use With: Solar Fastening Systems, PV Mounting Systems, PV Racking Systems, Solar Adapter Plate, Roof Attachment,
Tip:
With us you get matching M10 hanger bolts in different lengths: M10*200mm, M10*250mm, M10*300mm, M12*200mm, M12*300mm, click here to see more hanger bolt detail.
Adapter plate for M10 hanger bolt Solar profile connection
