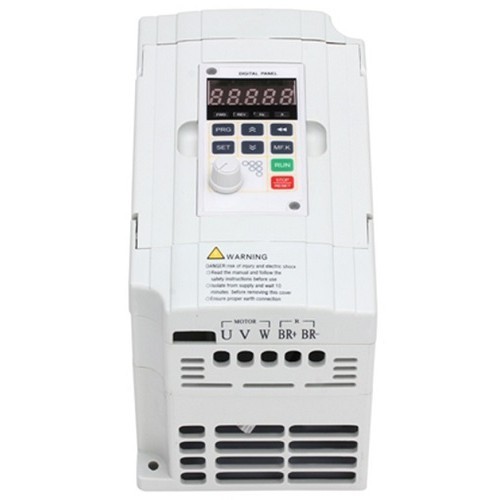

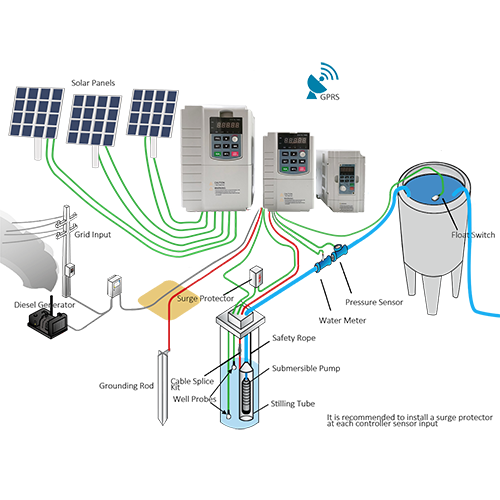

Solar pump inverter VFD controller 1HP/750W 3Phase 220Vac, or called solar VFD MPPT pumping inverter, solar drive, which is input solar panels to run AC pumps directly under sunshine. Within VFD and MPPT technologies, and flexible settings design, the inverters are ideal choose for any 3phase 220Vac solar pumping system! Its price is best with robust quality! Cost-effective for deep well pumping, farm irrigation, solar pump inverter system run by solar power directly! Now GPRS online monitoring and AC & DC inputs running together synchronously are available! You also can choose our extra IP54 weather-proof case(extra price) for the solar pump inverter with anti-dust screen, PG4 Connectors, DC breaker, AC breaker, terminal bars etc! Or IP55 case version by little extra cost only!
CVT & Real MPPT: widely adjustable settable MPPT voltage and MPPT stride, to make best solar pumping system for specific solar panels configuration and sunshine condition!Only need 60V-330Vdc solar PV input, easy to configure with solar panels in series!
Auto or Manual: Defaulted automatically running or stop according to solar radiation, or start&stop it by manual or extra switch/water level sensor. Compatible with all pump types!
Full Protection:Overloading, over-voltage, low voltage, over current, short-circuit, over heat, grounding, phase-lose, dry-protection,motor locked, weak sunlight, water level sensor compatible; To protect solar pump inverter itself and pump motor to the max!
You also can get all parts of 1HP 3phase 220Vac solar pumping system from our store, like solar panels, solar module mounting systems, cables, etc.
How much cost could it save for you than diesel? Find Comparison Data with diesel powered pumping on our Blogs here!
