Description：

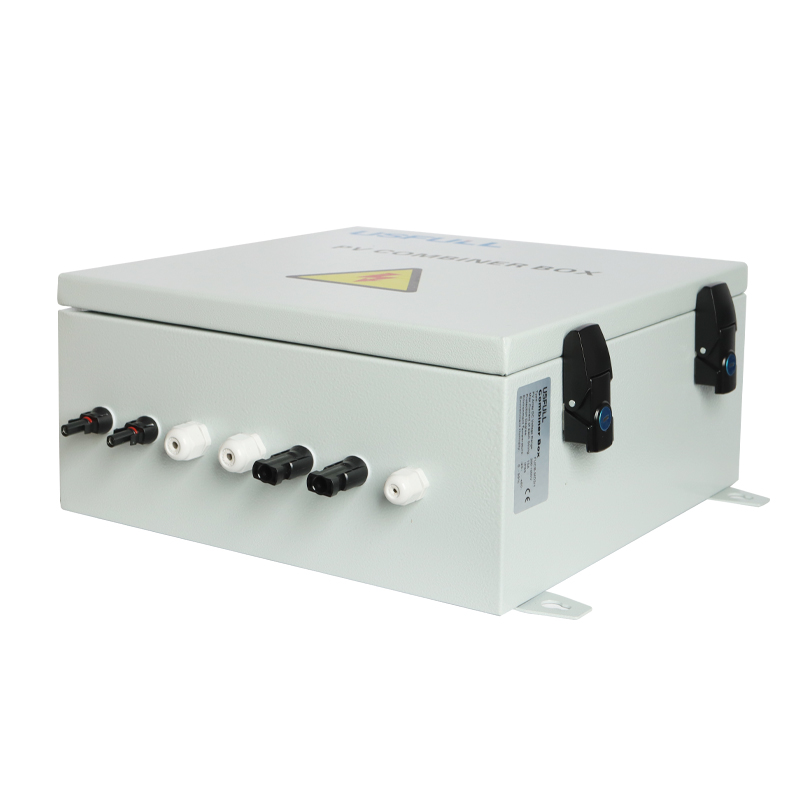

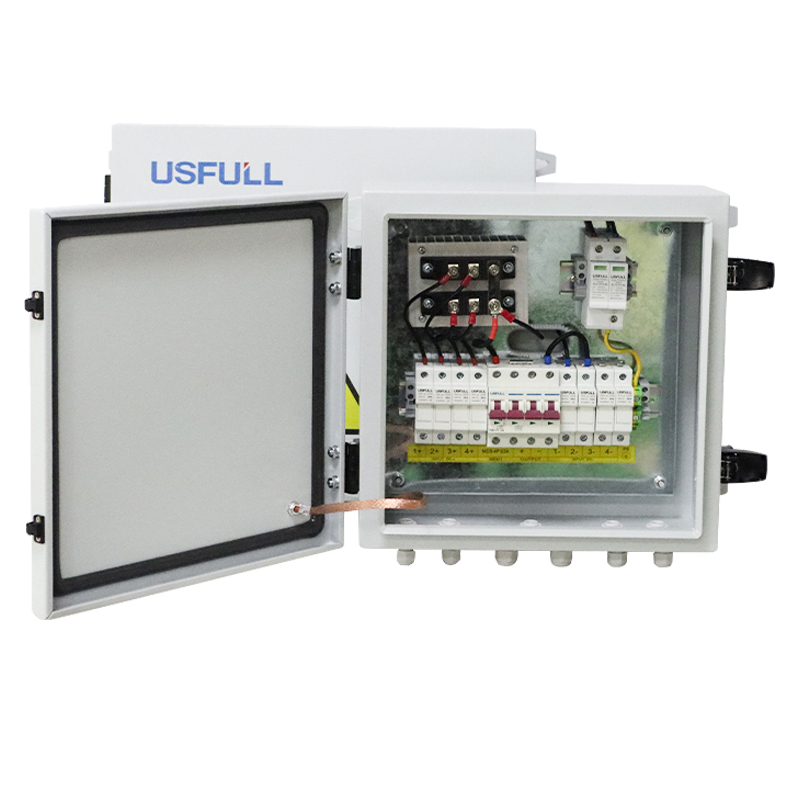

USFULL FUCB series solar pv combiner box is water proof, dust proof, with the function of overload protection, lightning protection, over current protection, etc. The combiner box meet the requirement of long time use for both outdoor and indoor situation.Application：
On grid solar power station
Off grid solar power system
Energy storage system
Solar pump system
| Specification (PV Combiner Box): |
| Model | FUCB-MD2 | FUCB-MD4 | FUCB-MD6 | FUCB-MD8 | FUCB-MD10 | FUCB-MD12 | FUCB-MD14 | FUCB-MD16 | FUCB-MD18 | FU-CB 20 | FUCB-MD22 | FUCB-MD24 |
| Number of DC Inputs | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Material of Box | Coated Iron |
| Protection Level | IP65/IP66 |
| IK Impact Resistance Class | IK08 |
| Max Rated Voltage DC | 1000V |
| DC Fuse | 15A (Recommend 15A, support other ampre) |
| Fuse Holder | 1000V DC 30 A |
| DC Breaker | 32A | 63A | 100A | 125A | 150A | 200A | 225A | 250A | 275A | 300A | 315A | 350A |
| Surge Protection DC | Type II In=20KA, Imax=40KA, Ucpv=1000V DC |
| Over-Voltage Category | Cat III |
| Diode for The Function of Anti-Reflux | Built-in |
| Connection Type DC Input | PG09, IP68 |
| Input Cable Size for Negative and Positive | Φ4-8mm |
| Number of DC Outputs | 1 (Support customize for output number) |
| Connection Type DC Output | PG11 | PG11 | PG13.5 | PG19 | PG19 | PG25 | PG25 | PG25 | PG29 | PG29 | PG29 | PG29 |
| Gland Connectors | Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68 |
| Ambiant Temperature Range/Humidity | Temperature: -20°C~+ 60°C, Humidity: 0-99% |
| Altitude | ≤2000m. Derating for above 2000m. |
| Installation | Wall mounting/Padlockable latch |
