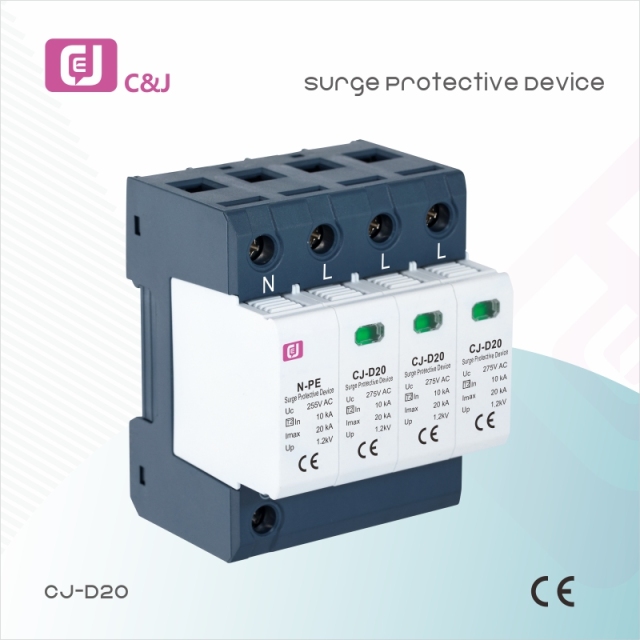

Surge protection device(SPD) is an indispensable device for lightning protection of electronic equipment. It is used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or A powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.
| IEC Electrical | 150 | 275 | 320 | 385 | 440 | ||
| Nominal AC Voltage (50/60Hz) | 120V | 230V | 230V | 230V | 400V | ||
| Maximum Continuous Operating Voltage (AC) | (L-N) | Uc | 150V | 275V | 320V | 385V | 440V |
| (N-PE) | Uc | 255V | |||||
| Nominal Discharge Current (8/20μs) | (L-N)/(N-PE) | In | 10kV/10kA | ||||
| Maximum Discharge Current (8/20μs) | (L-N)/(N-PE) | Imax | 20kA/20kA | ||||
| Voltage Protection Level | (L-N)/(N-PE) | Up | 0.6kV/1.5kV | 1.3kV/1.5kV | 1.5kV/1.5kV | 1.5kV/1.5kV | 1.8kV/1.5kV |
| Follow Current Interrupt Rating | (N-PE) | Ifi | 100ARMS | ||||
| Response Time | (L-N)/(N-PE) | tA | <25ns/<100ns | ||||
| Back-Up Fuse (max) | 125A gL /gG | ||||||
| Short-Circuit Current Rating (AC) | (L-N) | ISCCR | 10kA | ||||
| TOV Withstand 5s | (L-N) | UT | 180V | 335V | 335V | 335V | 580V |
| TOV 120min | (L-N) | UT | 230V | 440V | 440V | 440V | 765V |
| mode | Withstand | Safe Fail | Safe Fail | Safe Fail | Safe Fail | ||
| TOV Withstand 200ms | (N-PE) | UT | 1200V | ||||
| Operating Temperature Range | -40oF to +158oF[-40oC to +70oC] | ||||||
| Permissible Operating Humidity | Ta | 5%…95% | |||||
| Atmospheric pressure and altitude | RH | 80k Pa..106k Pa/-500m..2000m | |||||
| Terminal Screw Torque | Mmax | 39.9 lbf-in[4.5 Nm] | |||||
| Conductor Cross Section (max) | 2 AWG(Solid, Stranded) / 4 AWG (Flexible) | ||||||
| 35 mm2(Solid,Stranded) / 25 mm2(Flexible) | |||||||
| Mounting | 35 mm DIN Rail,EN 60715 | ||||||
| Degree of Protection | IP 20 (built-in) | ||||||
| Housing Material | Thermoplastic: Extinguishing Degree UL 94 V-0 | ||||||
| Thermal Protection | Yes | ||||||
| Operating State / Fault Indication | Green ok / Red defect | ||||||
| Remote Contacts (RC) / RC Switching Capacity | Optional | ||||||
| RC Conductor Cross Section (max) | AC:250V/0.5A;DC:250V/0.1A;125V/0.2A;75V/0.5A | ||||||
| 16 AWG(Solid) / 1.5 mm2(Solid) | |||||||
