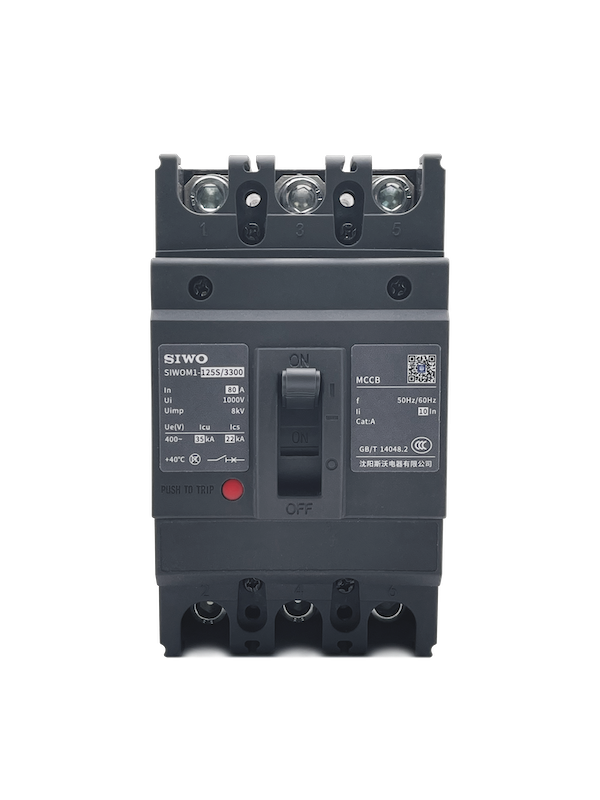

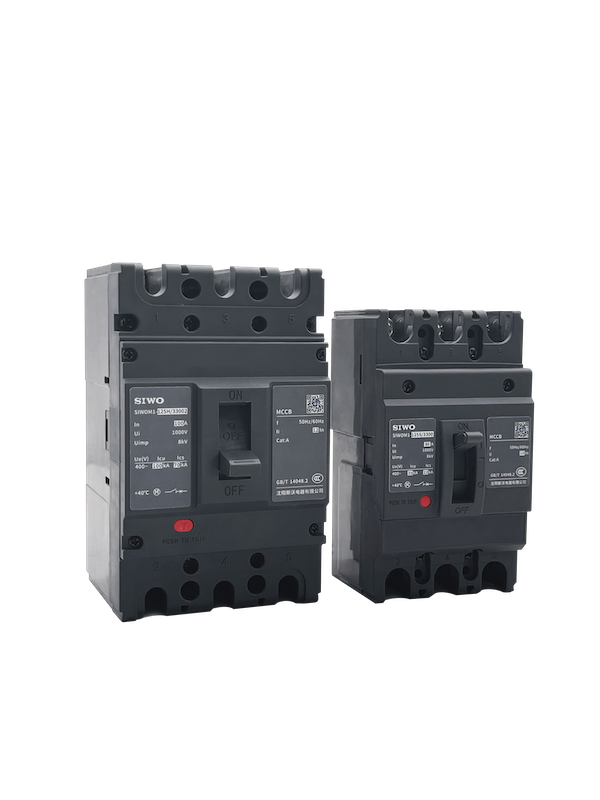

The SWOM1 series plastic shell circuit breaker adopts the form of a thermal magnetic release; This product has superior performance such as beautiful appearance, compact structure, long service life, low rated power consumption, stable performance, and convenient installation, providing users with safe and reliable protection.
This circuit breaker has isolation function.
With O and OFF position indication, the handle indicates the O and OFF positions when the contact is opened; The indicated position of the rotating handle or operating mechanism is consistent with the body, which will not affect the reliability of the product.
The circuit breaker can be installed vertically (i.e. vertically) or horizontally (i.e. horizontally).
With current limiting capability, the entire series is designed with a current limiting action mechanism, which extinguishes the arc before the expected short-circuit current reaches its peak, reliably suppressing the impact of short-circuit current on the circuit. The diagram shows the actual breaking short-circuit current peak and expected short-circuit current peak curve indicators of the current limiting action mechanism.
