Product Advantage

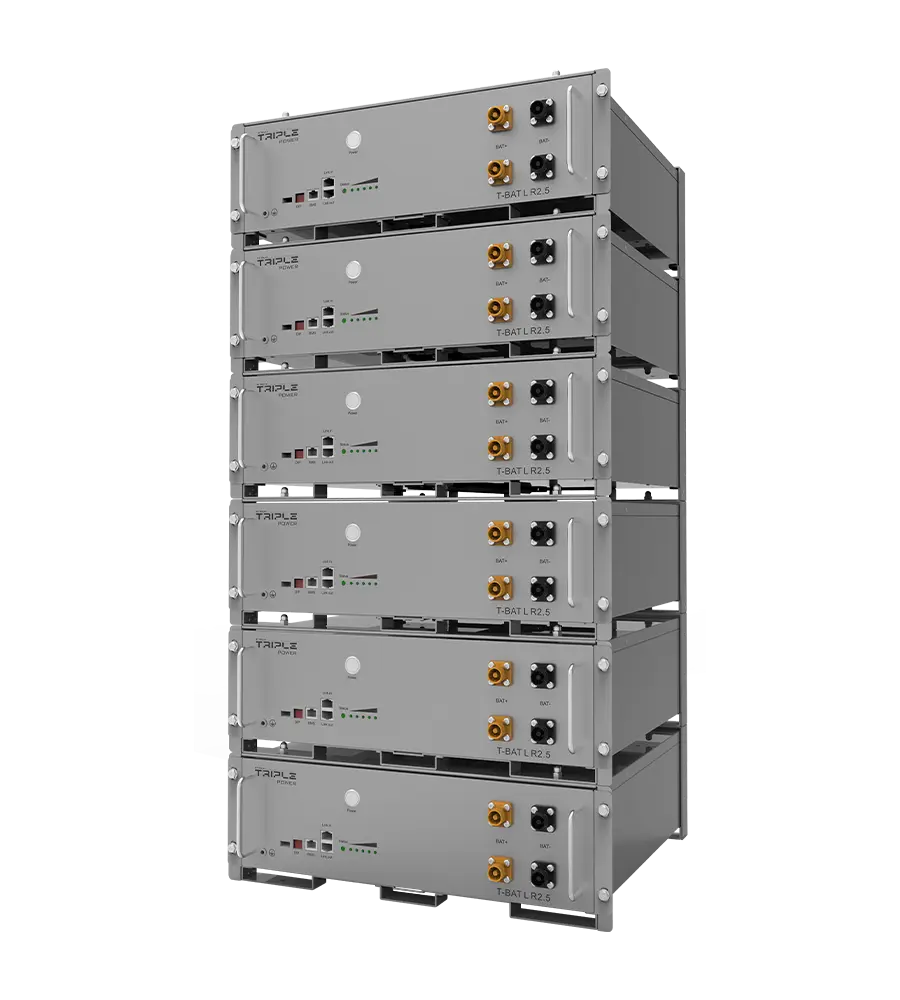

The T-BAT-SYS-LV R36 from SolaX features LFP battery technology and offers a flexible capacity range between 3.6 kWh and 58.8 kWh. This battery is perfectly paired with the X1 HYBRID LV inverter, making it a flexible solution for residential energy needs, while being easy to install and maintain.
Assured Reliability
- LiFePO4 battery cell & high-performance processors
- No toxic heavy metals or caustic materials
- Soft start to protect BAT and INV from a sudden surge
High Performance
- Long cycle life > 6000 times
- High capacity utilization
- Efficient energy transfer
Smart Management
- Remote fault diagnosis, upgrade and maintenance
Flexible Adaptability
- Wall quick bracket, or cabinet mounting optional
- Easy to scale up
Product Parameters
T-BAT LR3.6
| Number of modules | 1 Module |
| Nominal capacity | 3.6 kWh |
| Max.output current | 50 A |
| Peak discharge current | 60 A (60 s); 100 A (15 s) |
T-BAT LR7.2
| Number of modules | 2 Module |
| Nominal capacity | 7.3 kWh |
| Max.output current | 85 A |
| Peak discharge current | 120 A (60 s); 200 A (15 s) |
T-BAT LR10.8
| Number of modules | 3 Modules |
| Nominal capacity | 11.0 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR14.4
| Number of modules | 4 Modules |
| Nominal capacity | 14.7 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR18.0
| Number of modules | 5 Modules |
| Nominal capacity | 18.4 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR21.6
| Number of modules | 6 Modules |
| Nominal capacity | 22.0 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR25.2
| Number of modules | 7 Modules |
| Nominal capacity | 25.7 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR28.8
| Number of modules | 8 Modules |
| Nominal capacity | 29.4 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR32.4
| Number of modules | 9 Modules |
| Nominal capacity | 33.1 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR36.0
| Number of modules | 10 Modules |
| Nominal capacity | 36.8 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR39.6
| Number of modules | 11 Modules |
| Nominal capacity | 40.4 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR43.2
| Number of modules | 12 Modules |
| Nominal capacity | 44.1 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR46.8
| Number of modules | 13 Modules |
| Nominal capacity | 47.8 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR50.4
| Number of modules | 14 Modules |
| Nominal capacity | 51.5 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR54.0
| Number of modules | 15 Modules |
| Nominal capacity | 55.2 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
T-BAT LR57.6
| Number of modules | 16 Modules |
| Nominal capacity | 58.8 kWh |
| Max.output current | 120 A |
| Peak discharge current | 150 A (60 s); 200 A (15 s) |
