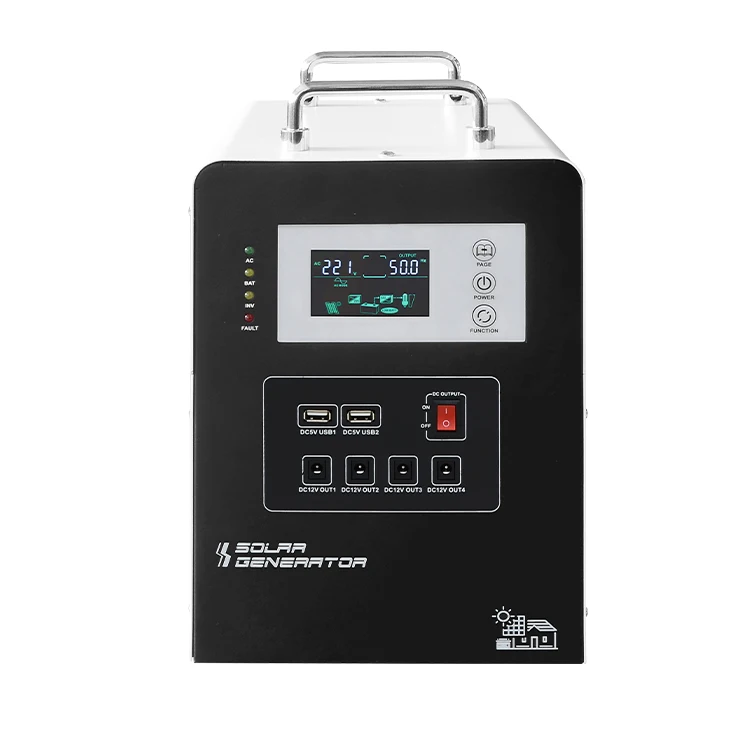

Specification
|
||||||||
|
Model : ESS
|
301P
|
501P
|
102P
|
|||||
|
Capacity
|
Rated power
|
300W
|
500W
|
1000W
|
||||
|
Peak power(20ms)
|
900VA
|
1500VA
|
3000VA
|
|||||
|
Input
|
Stardard battery voltage
|
12VDC
|
||||||
|
AC input voltage range
|
73~138VAC(110VAC)/83~148VAC(120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/165~295VAC(240VAC)
|
|||||||
|
AC input frequency range
|
45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
|
|||||||
|
Output
|
Conversion efficiency
|
≥85%(Battery mode); >99%(AC mode)
|
||||||
|
AC Output voltage
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /
240VAC±10%(AC mode) |
|||||||
|
AC Output frequency
|
50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
|
|||||||
|
AC Output waveform
|
Pure Sine Wave
|
|||||||
|
THD
|
≤3%(Linear load)
|
|||||||
|
DC Output voltage
|
4*DC 12V; 2*USB(5V)
|
|||||||
|
AC charger
|
AC charging current
|
0~30A(Depends on model)
|
||||||
|
AC charging method
|
Three-stage(constant current, constant voltage, floating charge)
|
|||||||
|
solar charger (Optional)
|
Charging mode
|
PWM
|
||||||
|
Max PV input voltage(Voc)
|
50V
|
|||||||
|
(At the lowest temperature)
|
||||||||
|
PV input voltage range
|
15V~44V
|
|||||||
|
Charge & discharge current
|
20A
|
40A
|
||||||
|
Max PV input power
|
280W
|
560W
|
||||||
|

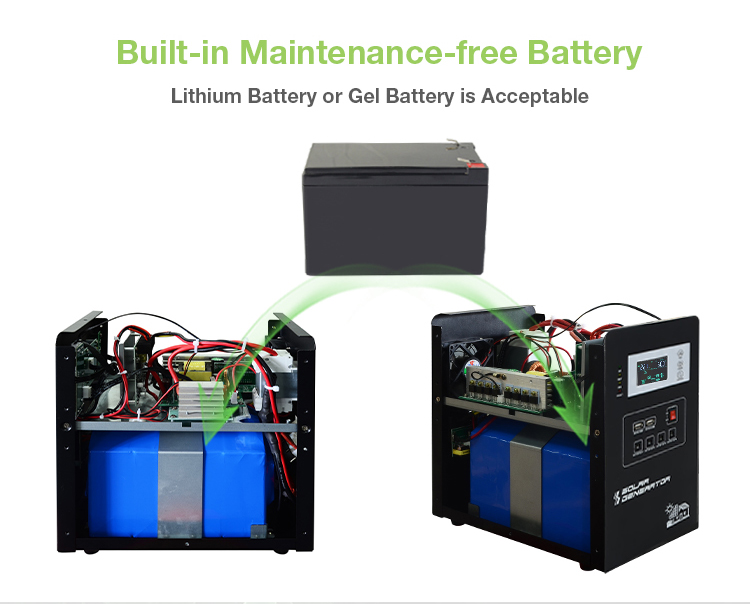

Inbuilt battery
|
Capacity
|
1*50AH
|
1*100AH
|
|||||
|
Battery size(LxWxH)/pcs
|
229*138*210(228)
|
407*174*210(240)
|
||||||
|
Other
|
Transfer time
|
≤4ms
|
||||||
|
Protection
|
||||||||
|

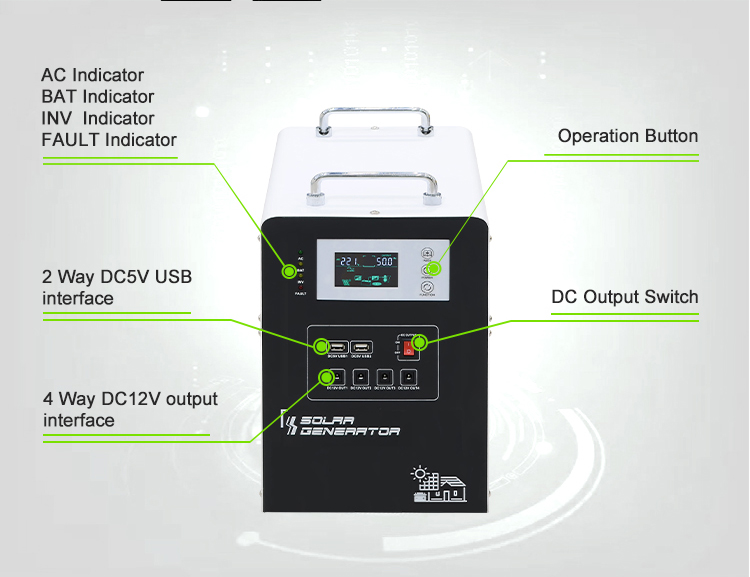

Display
|
LCD & LED
|
|||||||
|
Cooling way
|
||||||||
|
Communication(Optional)
|
RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported)
|
|||||||
|
Working mode
|
d1
|
|||||||
|
(selectable)
|
d2
|
ECO mode
|
||||||
|
d3
|
||||||||
|
Work
|
Operating temperature
|
-10℃~40℃
|
||||||
|
environment
|
Storage temperature
|
|||||||
|
Elevation
|
2000m(More than derating)
|
|||||||
|
Humidity
|
||||||||
|
Physical
|
Dimention L x W x H(mm)
|
358*192*390
|
488*232*450
|
|||||
|
Net weight(kg)(without battery)
|
8
|
10
|
16
|
|||||
|
Packing
|
Dimention L x W x H(mm)
|
400*252*500
|
550*295*625
|
|||||
|
Gross weight(kg)(without battery)
|
11
|
13
|
21
|
|||||
|
Quantity/CTN
|
1pcs per wooden case
|
|||||||
|
