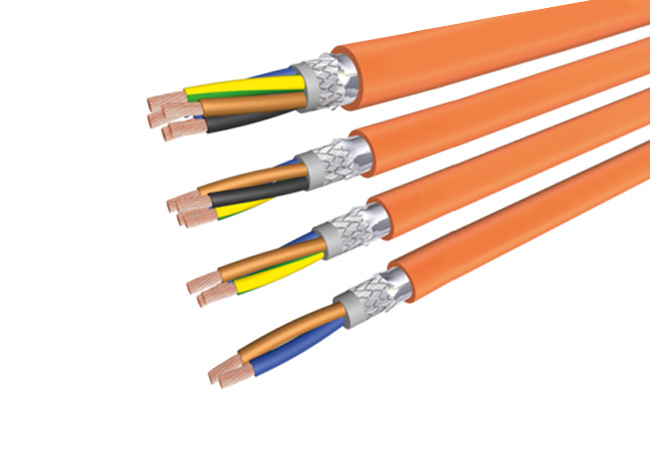

Sailtran has a range of ev high voltage cable, highybrid vehicle high voltage cable, available in shielded, unshielded or multi-conductor configurations.
Sailtran offer a range of FHL2G, FHLAL2G, FHLR2GCB2G, FHLR4GC13X, FHLR91XC13X & FHLR2G2GCB2G types Cables.
Our experts match you with the optimum conductor cross-section, reducing weight, packaging space and costs.
Conductor：Bare Copper/Tinned Copper
Filling: PP rope
Taping：Polyester tape/aluminum foil
Braid：Tinned copper
Insulation/Sheath：XLPE / XLPO (red, white, black)/orange
Rated temperature：-40℃~125℃;
Rated Voltage：AC/DC 600/900v;
Short-term Aging：240h,Comply with QC/T 1037;
Long-term Aging： 3000h,Comply with QC/T 1037;
Withstand voltage：2.1kV/1min. ( 600/900v );
Anti-tear Performance：>20N/mm;
Minimum bending radius：5D(OD≤20mm),6D(OD >20mm);
Environmental Requirements：RoHS & REACH;
Remarks: The above product specifications, dimensions and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
