Summary

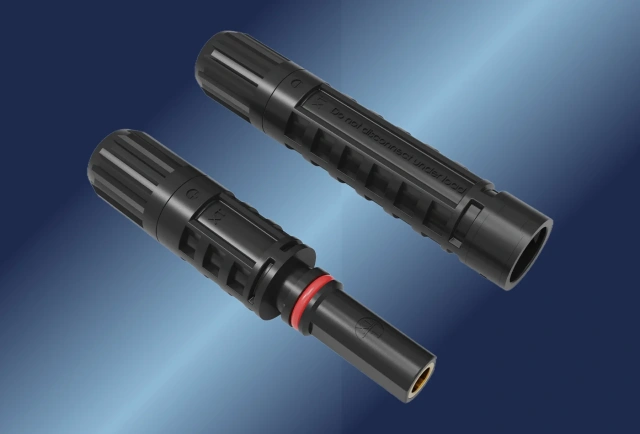

XT4xyz (Mini) 1500V IP68 Waterproof Connector is a high-performance solution for solar PV and energy storage systems, delivering reliable power transmission in extreme environments. Engineered with MPPE/PA/PC insulating materials and rated up to IP68, it ensures superior protection against dust and water immersion. With a 1500V voltage rating and contact resistance ≤0.5mΩ, this compact connector supports TUV-certified currents of up to 46A (6mm2), making it ideal for demanding renewable energy applications where safety, durability, and efficiency are critical.More
Specifications
Rated voltage:
1500V
Rated current:
TUV:30A (2.5mm2) / 41A (4mm2) / 46A(6mm2)
IP rating:
IP68
  • XT4xyz (Mini) 1500V IP68 Waterproof Connector for Solar PV and Energy Storage Systems
  • XT4xyz (Mini) 1500V IP68 Waterproof Connector for Solar PV and Energy Storage Systems

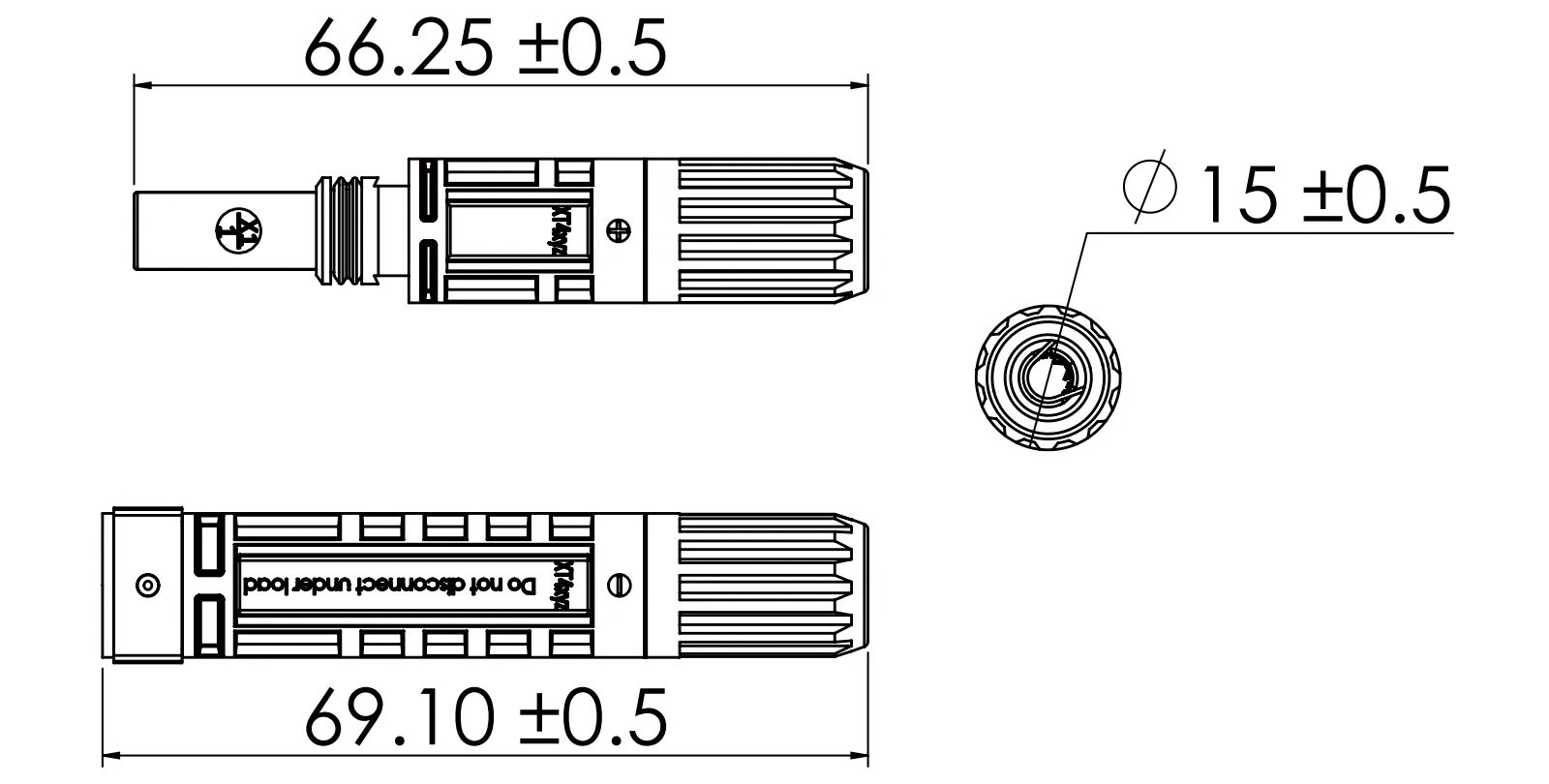

Overall dimension drawing


Certification
