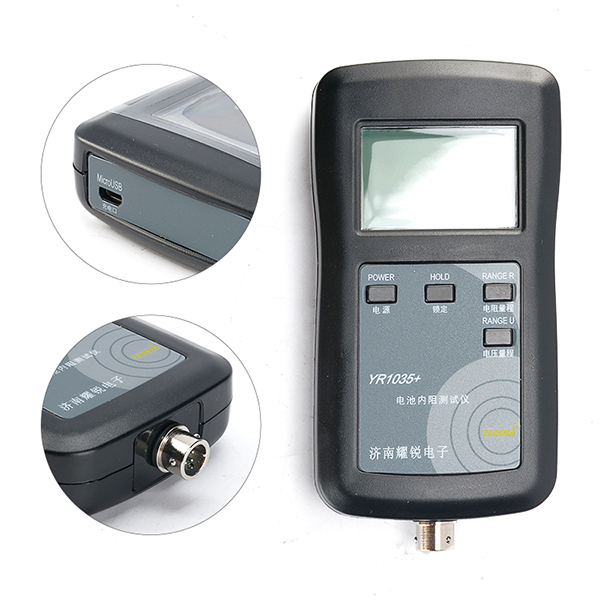

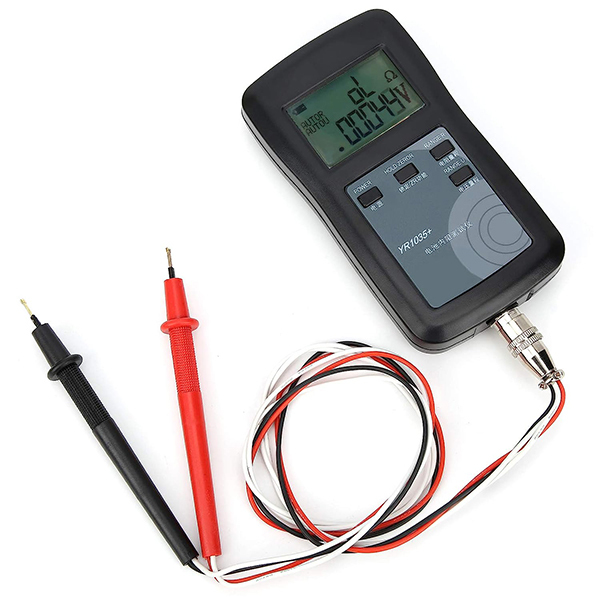

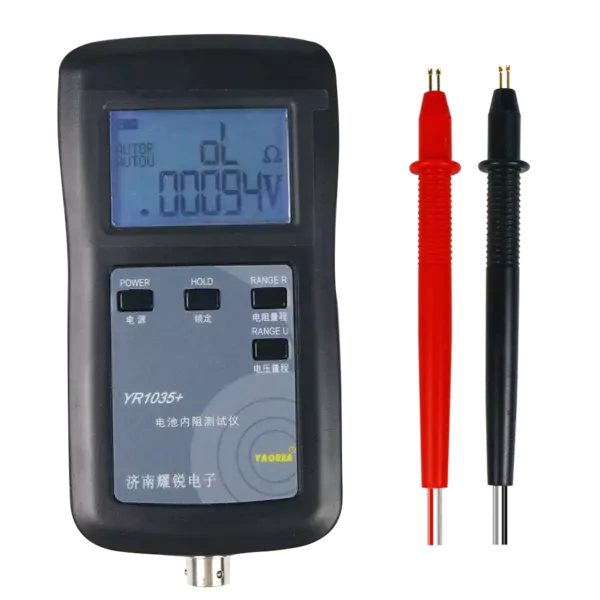

YAOREA YR1035+ Lithium Battery Internal Resistance Tester with 0.01mOhm Resolution for Li-Ion, LiFePO4, Ni-MH, and Pb Battery Cells Measurement

ERICSITY

China

Summary

The YAOREA YR1035+ Lithium Battery Internal Resistance Tester is a high-precision digital instrument designed for accurate internal resistance and voltage measurement of various battery types, including Li-Ion, LiFePO4, Ni-MH, Pb, and more. With a measurement range of 0.01 mOhm ~ 200 Ohm and 0V~100V DC voltage, it supports 1 kHz AC-sinusoidal testing using a true four-wire method. Ideal for battery R&D, quality control, and maintenance in energy storage and EV applications, it ensures reliable, fast, and safe testing with high resolution and immunity to external interference.More

INQUIRY

Parameters Description Download

login look

Features

Digital LCD display, easy to read the measurement result. With backlight, it makes it easy to read in low light areas.
Adopt 4-wire method which helps to ensure the accuracy of the measured value.
True four line 1Khz AC sinusoidal battery internal resistance instrument 0.00001 ohm – 200 ohm range.
Test range up to 200 ohms with a minimum resolution of 0.01 milliohms and less than 5 milliohms.
Press HOLD to enable the ZR function to measure internal resistance as low as 0.30–0.50 milliohms.
It is applicable for measurement of internal resistances of Lithium-ion, Pb, Li-Ion, Ni-MH, Li-Pol, LiFePO4, Ni-H2, Ni-Cd cells or assembled battery.

Packing List

1 * Tester
1 * Pair of Clip
1 * Pair of Test Pen
1 * Bracket

Differences Between YR1030+ and YR1035+

YR1030+ Maximum voltage: 28V

YR1035+ Maximum voltage: 100V

YR1035+ has higher voltage accuracy and resolution than YR1030+. The internal resistance accuracy is the same.

Application

Designed for measuring batteries of type Pb, Li-Ion, Ni-MH, Li-Pol, LiFePO4, Ni-H2, Ni-Cd, as well as alkaline and dry cells, button cells, resistors, etc.

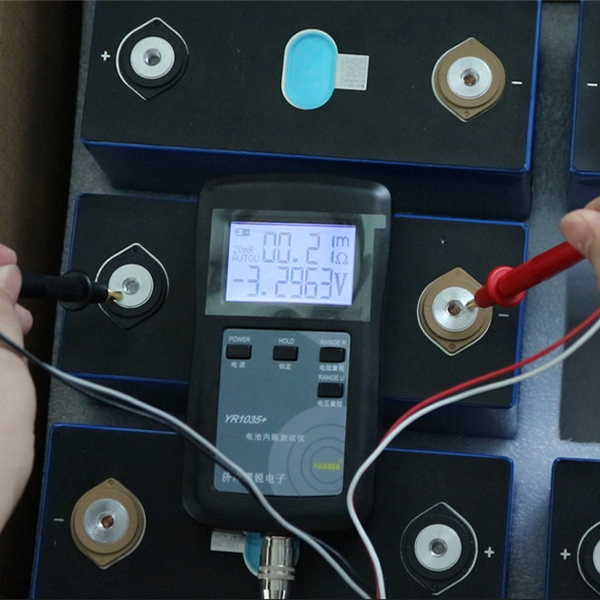

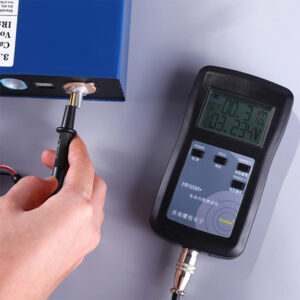

YAOREA YR1035+ Lithium Battery Internal Resistance Tester for LiFePo4 Prismatic Battery Cells

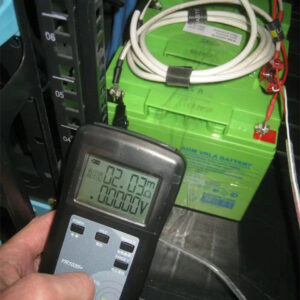

YAOREA YR1035+ Lithium Battery Internal Resistance Tester for AGM Battery

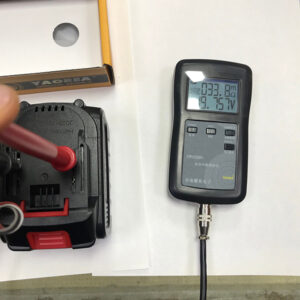

YAOREA YR1035+ Lithium Battery Internal Resistance Tester Application

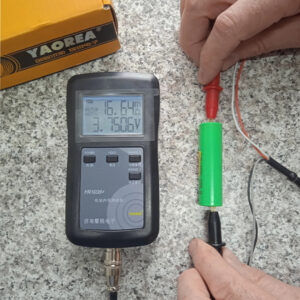

YAOREA YR1035+ Lithium Battery Internal Resistance Tester Application(1)

Note!

It is forbidden to enter an AC signal and a DC voltage greater than 100 V.
