Summary

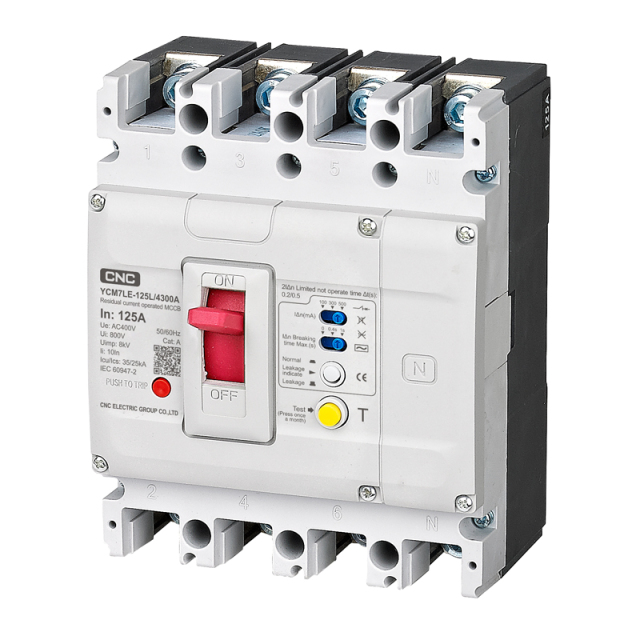

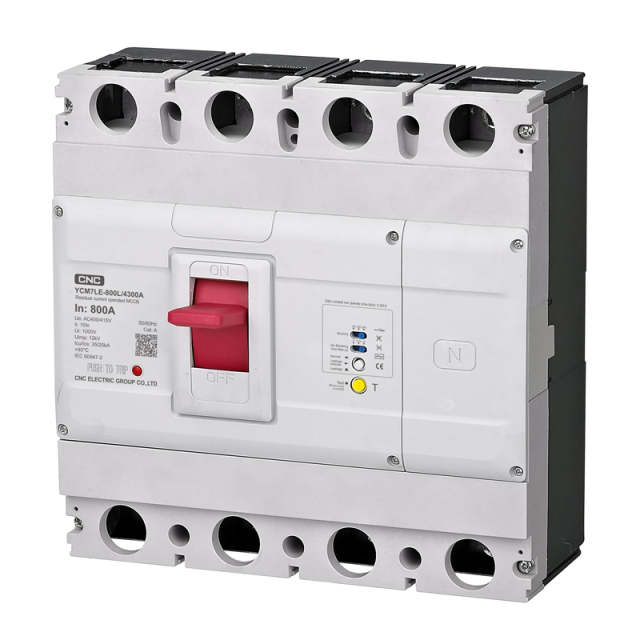

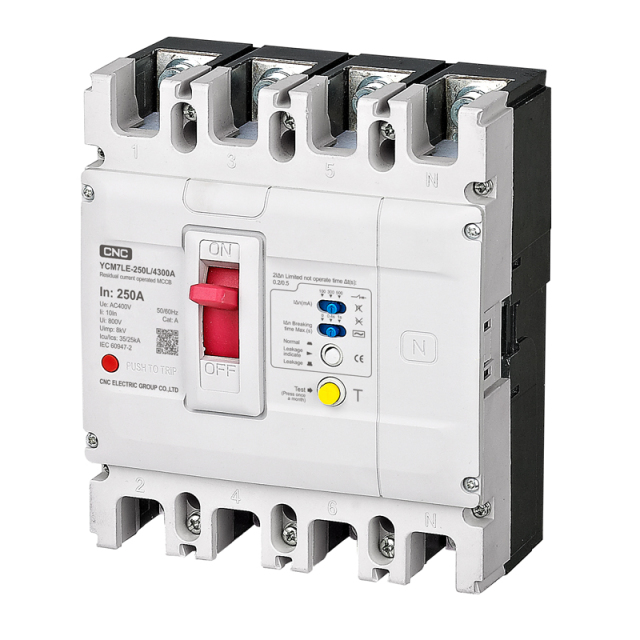

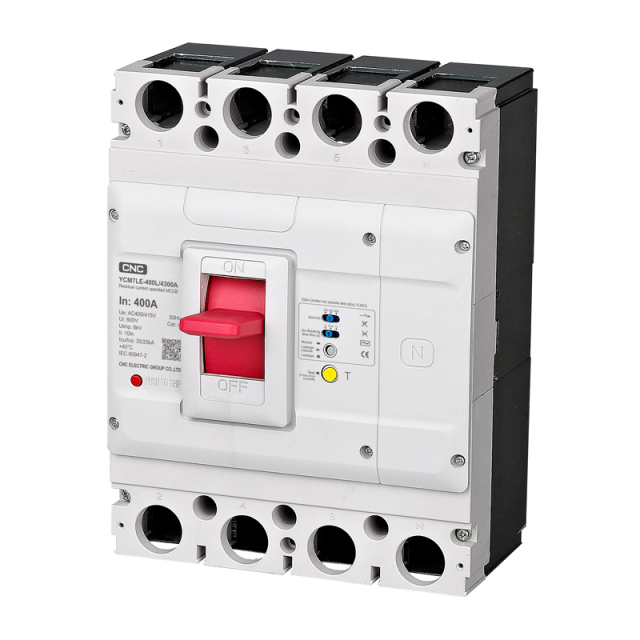

YCM7LE RCBO is a high-end 4P circuit breaker designed for energy storage systems, featuring anti-creep tripping, superior environmental adaptability, and a separate cover structure. With frame currents from 125A to 800A and rated currents from 16A to 800A, it ensures reliable electrical protection in demanding applications. Ideal for renewable energy and battery storage solutions, this breaker offers exceptional durability and performance under extreme conditions.More
  • YCM7LE RCBO High-End Surface Design 4P Circuit Breaker for Energy Storage Systems
  • YCM7LE RCBO High-End Surface Design 4P Circuit Breaker for Energy Storage Systems
  • YCM7LE RCBO High-End Surface Design 4P Circuit Breaker for Energy Storage Systems
  • YCM7LE RCBO High-End Surface Design 4P Circuit Breaker for Energy Storage Systems
  • High-end surface design

  • Separate cover structure

  • Anti-creep tripping

  • Super environmental adaptability

Model
Frame current Inm(A)
Rated current In(A)
Pole
Rated insulation voltage Ui(V)
Rated working voltage Ue(V)
Rated impact voltage Uimp(kV)
Flashover distance(mm)
Breaking capacity class
Rated limit short-circuit breaking capacity Icu(kA)
Rated operating short-circuit breaking capacity Ics(kA)
Rated residual short-circuit breaking capacity
Rated residual operating current IΔn(mA)(Non-delay type)
Rated residual operating current IΔn(mA)(Delay type)
Rated residual unoperating current IΔn(mA)
Operating performance(times)(Power on)
Operating performance(times)(Power off)
Residual current protection operating time
Max breaking time(S)(Non-delay type)
Max breaking time(S)(Delay type)
YCM7LE-125
YCM7LE-250
YCM7LE-400
YCM7LE-630
YCM7LE-800
125
250
400
630
800
16,20,25,32,40,50,63,80,100,125
100,125,140,160,180,200,225,250
225,315,350,400
400,500,630
400,500,630,700,800
4
4
4
4
4
800
800
800
800
800
AC400
AC400
AC400
AC400
AC400
8000
8000
8000
8000
8000
50
50
100
100
100
L,M
L,M
L,M,H
L,M,H
L,M,H
L:35;M:50
L:35;M:50
L:35;M:50;H:85
L:35;M:50;H:85
L:35;M:50;H:85
L:25;M:35
L:25;M:35
L:25;M:35;H:65
L:25;M:35;H:65
L:25;M:35;H:65
L:12.5;M:12.5
L:12.5;M:12.5
L:8.75;M:12.5;H:21.25
L:8.75;M:12.5;H:21.25
L:8.75;M:12.5;H:21.25
30/100/500,100/300/500
30/100/500,100/300/500
100/300/500
300/500/1000
300/500/1000
100/300/500
100/300/500
100/300/500
300/500/1000
300/500/1000
1/2IΔn
1/2IΔn
1/2IΔn
1/2IΔn
1/2IΔn
1500
1000
1000
1000
1000
8500
7000
4000
4000
4000
IΔn
2IΔn
5IΔn
10IΔn
10IΔn
0.3
0.15
0.04
0.04
0.04
0.4/1
0.4/1
0.4/1
0.4/1
0.4/1
Intelligent electrical appliances, Modular din rail, Distribution apparatus, Motor control & protection, High-voltage electrical appliances, Low-voltage switchgear
