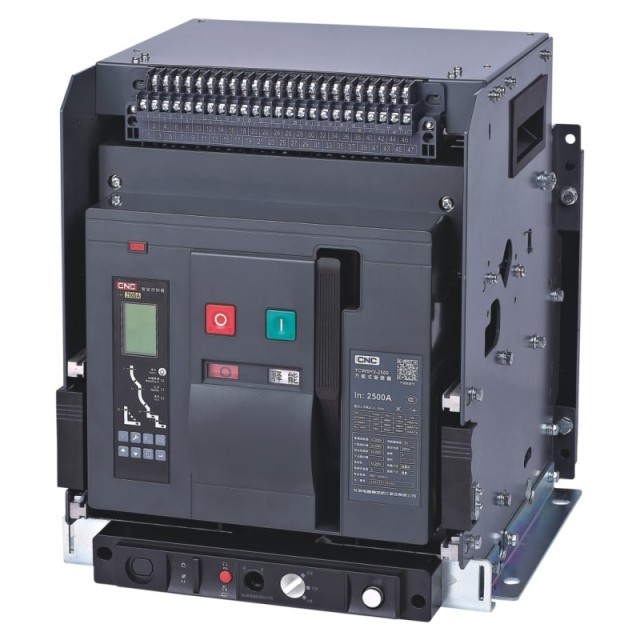

YCW8HV HV Class ACB Overcurrent Protection Circuit Breaker for Energy Storage Systems

YCW8HV HV Class ACB Overcurrent Protection Circuit Breaker for Energy Storage Systems

  • YCW8HV HV Class ACB Overcurrent Protection Circuit Breaker for Energy Storage Systems
  • YCW8HV HV Class ACB Overcurrent Protection Circuit Breaker for Energy Storage Systems
Summary
YCW8HV HV Class ACB Circuit Breaker offers precise overcurrent, undervoltage, and phase-loss protection with automatic breaking and reclosing functions. Designed for high-voltage energy storage systems, it supports 630A to 4000A currents, ensuring reliable operation under harsh electromagnetic conditions. Featuring remote control, flexible wiring, and high short-circuit withstand capability, it's ideal for advanced energy storage and power distribution applications.More
  • YCW8HV HV Class ACB Overcurrent Protection Circuit Breaker for Energy Storage Systems
  • Accurate protection, automatic breaking in the case of overcurrent, phase loss, voltage loss, undervoltage and overvoltage;

  • Has reclosing function, breaking when loss of voltage or undervoltage, automatic closing when the voltage returns to normal;

  • Fully meet the requirements of electromagnetic compatibility, can still work normally under strong electromagnetic interference;

  • With communication interface, can achieve "remote control, remote measure, remote adjust, remote message" function,to meet the requirements of control automation;

  • Flexible wiring, horizontal, vertical, mixed wiring.

Model
Frame current
Rated current In(A)
Rated working voltage AC Ue(V)
Rated insulation voltage Ui(V)
Rated impulse withstand voltage Uimp(kV)
Rated frequency
Suitable for isolation
Rated limited short-circuit breaking capacity Icu(kV)
Rated operating short-circuit breaking capacity Ics(kV)
Rated short-time withstand current Icw/1s(kA)
Breaking time ms(no additional delay)
Close time
Electrical life
Mechanical life(With maintain)
Mechanical life(Without maintain)
YCW8HV-2500
YCW8HV-4000
630, 800, 1000, 1250, 1600, 2000, 2500A
2500, 3200, 4000A
800V/1000V/1140V
800V/1000V/1140V
1500
1500
12
12
AC50Hz 3500
AC50Hz 3500
50
50
Yes
Yes
65
80
50
65
50
65
≤30
≤30
≤60
≤60
8000
6000
30000
15000
15000
10000
Intelligent electrical appliances, Modular din rail, Distribution apparatus, Motor control & protection, High-voltage electrical appliances, Low-voltage switchgear
